| Prod Model: |
60000btu solar air conditioner |
| Power: |
Solar |
| Compressor: |
Gmcc/Hitachi |
| Inverter To 110/220V: |
No Need |
| 100% Off Grid: |
No |
| Warranty: |
1 Years for Whole System |
| Solar Panels: |
No Need |
| Batteries: |
No Need |
| Solar Controller: |
No Need |
| Manufacturer: |
Yes |
| Color: |
White |
| Type: |
Floor Standing Air Conditioners |
| Capacity: |
48000-60000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
36-49dB |
| Certification: |
CCC |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Solar |
| Power Type: |
AC |
| Condition: |
New |
Product Description
5 Ton big High Efficient Floor Standing Solar Air Conditioner
Why Hybrid solar air conditioner can save electricity?Here are the reasons:
Firstly, it absorbs solar energy to heat the inside medium by using a solar collector. Freon from the compressor goes through the copper coil inside the collector and undertakes a heat exchange. Freon exchange heat with the medium inside the solar collector then go through a cycle inside the system for cooling and heating.
Secondly, it adopts a highly efficient heat-exchange system. The use of the internal thread pipe, hydrophilic aluminum fin and the optimal heat exchange system reduce energy loss, improve the overall efficiency and effectively ensure the performance. Therefore, hybrid solar air conditioner is more convenient and energy-saving than regular air conditioner.
Comparing to Current Products
1. Conventional air conditioner consumes too much, users have to pay a heavy electricity bill.
2. Photovoltaic (PV) system costs a large amount of money to build up.
3. Thermally driven absorption cooling is also very costly, and its cooling capacity is not big enough.
Hybrid Solar Air Conditioner
(9000BTU-24000BTU) for Wall Mounted range
Up to 48000btu for Cassette,Ducted, Floor standing,Floor ceiling series.
Features:
1.on Grid Working with 50% solar energy
2.Vacuum thermal tube solar collector ,with easy installation and affordable cost
3.Supreme high efficiency rating reach to 4.0
4.International famous brand compressor
5.R410A environment friendly gas
Specifications: | Model No. | SGS-9000CO(H) | SGS-12000CO(H) | SGS-20000CO(H) | SGS-24000CO(H) |
| Power Supply:220-240VAC, 1PH, 50Hz | | | | |
| Performance | | | | | | | |
| Capacity | Cooling | Btu/h | 9000 | 12000 | 20000 | 24000 |
| W | 2600 | 3500 | 6000 | 7200 |
| Heating | Btu/h | 10000 | 13000 | 22000 | 27000 |
| W | 2900 | 3800 | 6600 | 7900 |
| Noise | Indoor | dB(A) | ≤40 | ≤42 | ≤46 | ≤50 |
| Outdoor | dB(A) | ≤50 | ≤52 | ≤56 | ≤58 |
| Air Circulation | m³/h | 500 | 550 | 850 | 1150 |
| Suitable Area | m² | 11~17 | 15~23 | 25~42 | 30~48 |
| EER | W/W | 3.64 | 3.89 | 3.88 | 3.82 |
| Btu/h/w | 12.42 | 13.27 | 13.24 | 13.03 |
| Power Consumption | | | | | | |
| Power Input | Cooling | W | 650~770 | 800~1025 | 1350~1560 | 1700~1900 |
| Heating | W | 650~780+350 | 800~1050+350 | 1350~1590+350 | 1700~1950+350 |
| Rated Current | Cooling | A | 3.00~3.60 | 3.70~4.80 | 6.30~7.30 | 8.00~8.90 |
| Heating | A | 3.00~3.65+1.6 | 3.70~4.90+1.6 | 6.30~7.50+1.6 | 8.00~8.90+1.6 |
| Vacuum Tube | Diameter*Length*Pcs | 47mm*500mm*10 | 47mm*500mm*10 | 47mm*620mm*11 | 47mm*620mm*11 |
| Dimensions | | | | | | | |
| Indoor Unit | Net | mm | 802*265*190 | 880×286×203 | 940×300×220 | 1080*220*300 |
| Shipping | mm | 860*325*255 | 935×350×270 | 1003×360×280 | 1136*285*360 |
| Outdoor Unit | Net | mm | 790*260*540 | 790*260*540 | 850*300*755 | 940*300*755 |
| Shipping | mm | 910*370*610 | 910*370*610 | 950*410*760 | 990*400*770 |
| Water Tank | Shipping | mm | 910*400*330 | 910*400*330 | 980*400*370 | 980*400*370 |
| Vacuum Tube | Shipping | mm |
| Weight | | | | | | | |
| Indoor Unit | Net/Gross | kg | 9/10.5 | 10/11.5 | 16/17.5 | 20/22 |
| Outdoor Unit | Net/Gross | kg | 31/34 | 38/40 | 50/52 | 55/58 |
| Solar Collector | Net/Gross | kg | 13/15 | 13/15 | 16/17 | 16/17 |
| Loading Qty | in 20feet | sets | 66 | 66 | 49 | 46 |
| 40HQ | sets | 162 | 162 | 120 | 112 |
Meet CE &CCC Standard
indoor Production line

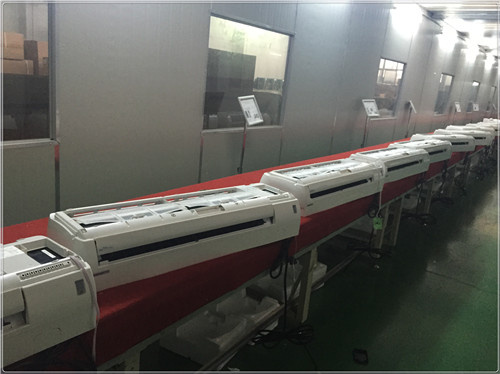

outdoor production line
We only provide your Most Stabalized products
Most satisfied service
Best Solution for you and your customerIf you are interested in any of our products, please contact us freely!
Supergreen Renewable Energy Technology Co., Ltd, is the leading company of the renewable energy technology application in China. It is a professional manufacturer of solar pest control lamp, Solar air conditioner, solar refrigerator and so on. With strong R&D team, We are committed to energy conservation and environmental protection for new energy career and to provide the latest technology and best solution for users.
The company has a set of advanced equipment for R&D, production, quality Control, gathers a group of professional technicians to engaged in product research and development. It can provide various kinds of special specification products and technology service for customers. Products and technology have been exported to many countries and area, such as Western Europe, North America, Eastern Asia Middle East, etc.
"Quality, Sincerity, Practical, Innovation" is our objective for enterprise management. Sincerely welcome friends domestic and abroad to visit us to cooperate and develop together.
