Prod Model: |
MO-714D |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Colour: |
Black |
Type: |
LCD Monitor |
Material: |
LCD |
Color: |
Color |
Screen: |
Flat Screen |
Sensor: |
CCD |
Scanning: |
Line by Line Scan |
Horizontal Resolution: |
480tvl |
Size: |
5 |
Product Description

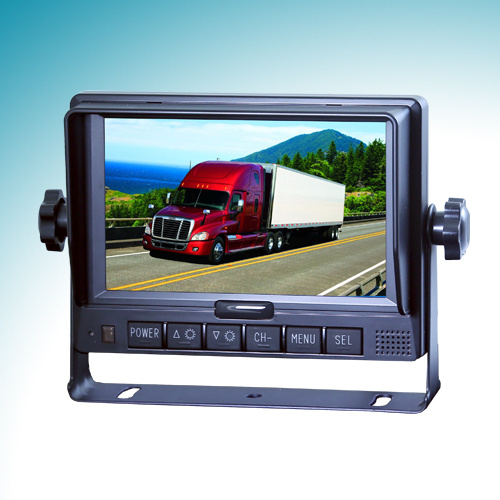

5 inches LCD Car Display Features:
Thin and small, 24.7mm thickness
Wide voltage input: Support 12V or 24V system
Power supply for camera, easy installation
Normal buttons and support remote control function
Backlighting for screen: Automatic backlighting when in dim light longer than 5s (Lighting brightness can be set up And saved)
Picture image may be adjusted for horizontal or vertical viewing
Auto scan; The scanning function of each channel can be set up to turn on and off separately, scan time (time for Switching to another channel) can be adjusted from 1 to 90S
Distance label can be turned on or off and adjusted up and down, left and right
5 inches LCD Car Display Specification:
Shatterproof standard: 2.83G
Working condition: Performs in rugged conditions; Operating temperature: -20º C~70º C
TV system: PAL/NTSC/AUTO
Language system: 8 languages selectable
Video input: 13PIN: Support 3 audio inputs
Distance label: Can be adjusted up and down, left and right.
Auto trigger: 3 camera trigger wires, once triggered, automatically switches to its corresponding camera
Frame ratio: 16: 9
DOT pitch: 0.045(W)× 0.135(H)
Resolution: 800(H)× 480(V)
Brightness: 400 CD/
Contrast: 500: 1
Viewing angle: U: 50° , D: 70° , L/R: 70°
Power consumption: 5W
Power supply: DC: 10-32V
Operating temperature: -20º C~+70º C
Storage temperature: -30º C~+80º C
