Prod Model: |
WM-127D, WC-087 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certification: |
FCC |
Video Output: |
Video |
Audio Output: |
Digital Audio Coaxial |
Voltage: |
10-32V |
Product Description

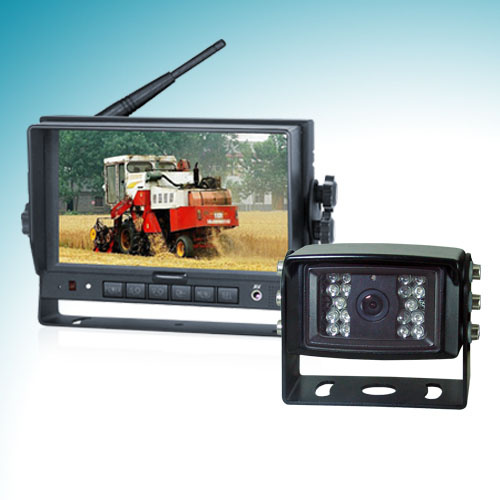

Wireless rear view system
Wireless rearview monitor features:
7 Inch Wireless color LCD wireless rearview monitor with digital screen
Built-in 2.4GHz wireless receiver.
Frequency range: 2400~2483MHz, Group supported: 2414, 2432, 2468, 2450
Distance: 100m ( barrier-free)
Reception capability: -87dBm.
TFT LCD monitor with wide view angle and high resolution display.
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing.
Multi-languages of display available: English, French, Portuguese, Spanish, Russian, Dutch, German, Italian.
Automatic back-lights for buttons.
Full-function remote controller.
Multiple video formats available: AUTO /PAL/ NTSC.
4 channel receiver, 1 channel for video output and 1 channel for audio output.
Operates from 10~32V. Support 12V or 24V automobile battery.
Automatically switches to back-up, left or right side camera views.
Speaker available and users can control the sound level from control panel.
On-board speaker.
Automatic back-lights for buttons.
Waterproof and weather resistant housing for outdoor use
Night vision available, day/ night sensor for automatic adjustment
IR distance: 15m
Infrared LED light: 18
Mirror/ Normal image switch (depending on the chips)
Distance label selectable to be open or closed
