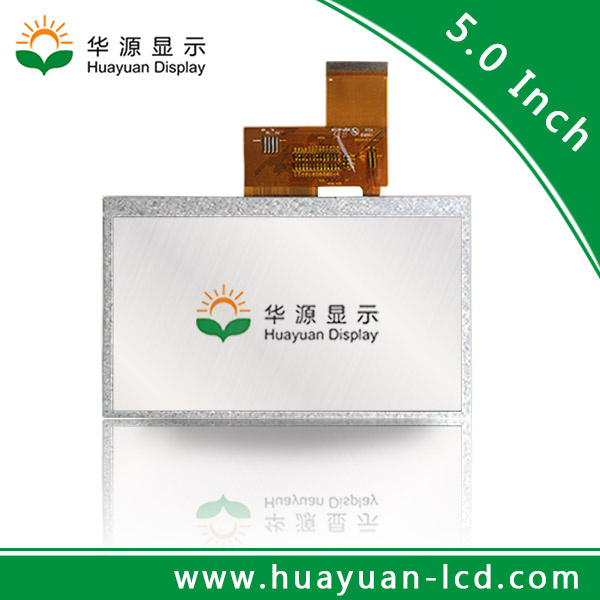

5 Inch Touch Screen TFT LCD Screen
| Price: |
US $ 7-9/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
TFT078A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
5 Inch |
| Resolution: |
480*272 |
| LED Numbers: |
10 LEDs |
| Color Depth: |
24bit |
| Driver IC: |
Ili6482 |
| Pin: |
40 Pin |
| LCD Type: |
TFT Transmissive Normal White |
| Pixel Configuration: |
R.G.B.Vertical Stripe |
| Module Size(W*H*T): |
120.7*75.8*3.1 |
| System Interface: |
24 Bits RGB Interface |
| Usage: |
Notebook LCM |
| Digital LCD Module Type: |
Metering Module |
| Touch Screen Type: |
Resistive |
| Type: |
Color |
| Response Time: |
1ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
TFT |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |
| DOT-Matrix Graphic LCD Module Type: |
DOT Matrix |
Product Description

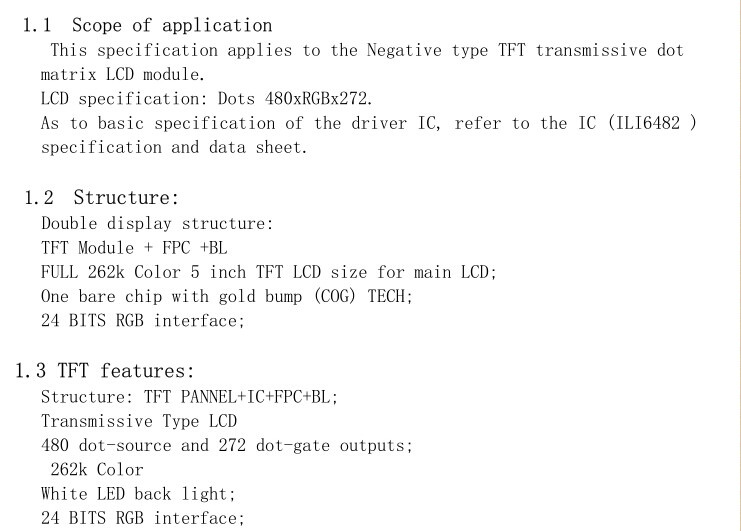

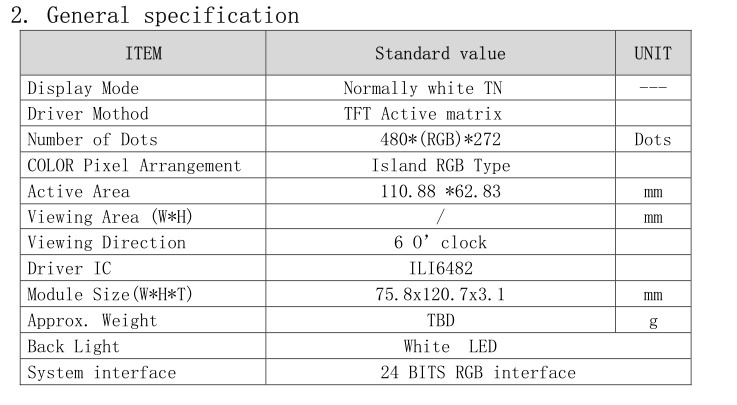

DATA SHEET
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: huayuan
- Model Number: TFT078A
- Type: TFT
- LCD Type: TFT transmissive normal white
- Number of dots: 480*272
- Pixel Arrangement: RGB vertical stripe
- Driver IC: ILI6482
- Module size(W*H*T): 120.7*75.8*3.1
- PIN: 40 pin
- Backlight: 10 LED
- System Interface: 24 Bits RGB interface
- Warranty: 12 months
- Quality: 100% test by aging room
Additional Info.Trademark: Huayuan displayPacking:Carton BoxStandard: ROHS ISO9001 Origin:China Production Capacity:10000PCS/MPackaging & DeliveryPackaging Details: in an anti-statics bag packed in carton or according to the customer's requirementDelivery Detail: 7 days for sample and 25-30 days for mass productionPayment: T/T,paypal,WU etc Contact Us: Send inquiry to us to get newest price and information!Tel: 86-731-28668968Fax: 86-731-28660280 How to running the orders with customers ? And we can be custom-order per custom-request Step1.Send your original drawing paper or samples or photos, If you have not these information, tell us your idea.Step2.According to your details, we give you some advise and good price.Step3.Negotiate the technical dates after that we will send you the exact quotationStep4.You arrange the tooling charge payment.Step5.We make design paper and waiting for your confirmation in two days.Step6.We make new samples for your testing with in two weeksStep7.After samples confirmed, we are running the production.Step8.You arrange the last payment, we sending goods to the ports. We hope to build a long-term business relationship with you .believe we are your best supplier! If you have any questions or queries, please do not hesitate to contact us. Welcomed to visit any of our other items. We are glad to help you! Vian wong
