| Prod Model: |
YL050MY01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
5 Inch |
| Outline Dimension: |
127X85.8X4.93 Mm |
| Active Area: |
108X64.8 Mm |
| CTP Interface: |
I2c or USB or Spi |
| Resolution: |
800X480 Dots |
| Brightness: |
24 Bits RGB Interface |
| Interface Of TFT: |
>86% |
| Surface Hardness: |
6h |
| Transparency: |
85%Min |
| Touch Points: |
5 Points |
| Type: |
LCM |
| Usage: |
Small-sized LCM |
| Touch Screen Type: |
Capacitive |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| Digital LCD Module Type: |
Timing Module |
| Display Technology: |
TFT |
| Viewing Angle: |
TN＋FILM |
| Customized: |
Customized |
Product Description

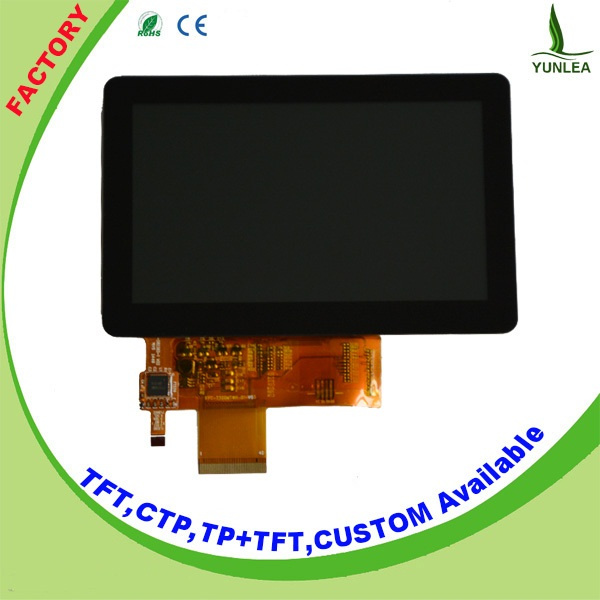

5 inch TFT LCD touch screen 800X480 resolution 5 inch TFT touch screen
The specification of 5 inch TFT touch screen
| Specification |
| Size | 5 inch |
| Product name | 5 inch capacitive touchscreen module |
| Model number | YL050MY01 |
| Type | LCD + CTP |
| Outline Dimension | 127X85.8X4.93 mm |
| Active area | 108X64.8 mm |
| Resolution | 800X480 dots |
| Brightness | 250 to 600 available CD/m2 |
| Touch controller | FT5316 |
| Interface Of TFT | 24 bits RGB interface |
| Interface of CTP | I2C |
| Surface Hardness | 6H |
| Transparency | 85%min |
| Touch Points | 5 points |
| Operating temp | -20 to 70 degree |
| General Business Clauses |
| MOQ | 1 piece |
| Lead time | Samples in stocks, 3~5 weeks for mass production |
| Trade Terms | EXW or FOB |
| Payment | 100% Paypal or T/T or Western union in advance for samples,
50% T/T in advance and 50% before delivery for mass production |
| Warranty | 12 months |
| Package | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
Why choose Yunlea?
(1)13000 Square meter factory, main for CTP and TFT, larger productuion capacity ensure the fastest delivery.
(2)High quality Control with CE, RoHS and so on approved.
(3)Precise and advanced equipments
(4)More than 10 years of industry experience and involved main markets all over the world
(5)Dedicated and professional sales team will offer you 24 hours online and immediate service
(6)OEM and ODM welcome, 12months warranty on our product
(7)Our mission is to help our customers achieve success, then fulfill our both dreams
FAQ:
1. What is your delivery method?
DHL, UPS, FedEx, TNT
2. What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
3. Payment methods?
T/T, Paypal and Western union etc.
For samples: Payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
5. What is the Product MOQ?
Different product has the different MOQ, please contact us sales for detailed information.
6. What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields
Yunlea electronics Co., Ltd, about 5km away from shenzhen Airport with convenient transportation, is a professional capacitive touch screen and capacitive touch screen module supplier, focused on serving the global touch application and innovation of enterprises.
We entered into touch screen area in 2004 and a factory area of 13, 000 m2, with more than 800 employees. Starting from resistive touch panel, and specialized in GPS, Digital photo frame and industrial control etc...With further investment, we established the R&D and manufacturing team of capacitive touch screen, monthly capacity over 2 million pieces, serving for instruments and meters, handheld device, industrial control, medical, automotive and smart home etc...
Our strength lies in ten-years industry experience of our team, and constant attention with development of global capacitive touch screen. We keep further cooperation with many first-class raw materials factory and are capable of quickly providing scheme design according to customer's need, supplying products with high-quality, reliable capablity and high cost performance.
