| Prod Model: |
TFT117A LCD Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Type: |
TFT |
| Controller: |
Ili6122+Ili5960 |
| Interface: |
24bit RGB |
| Backlight: |
12LED White |
| Resoluton: |
800*480(WVGA) |
| Outline Size: |
120.7*75.8*3.1mm |
| Operating Temperature: |
-20~70 Degree |
| Type: |
Color |
| Usage: |
Small-sized LCM |
| Touch Screen Type: |
Resistive |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| Digital LCD Module Type: |
Timing Module |
| Display Technology: |
TFT |
| Viewing Angle: |
IPS |
| Customized: |
Customized |
Product Description

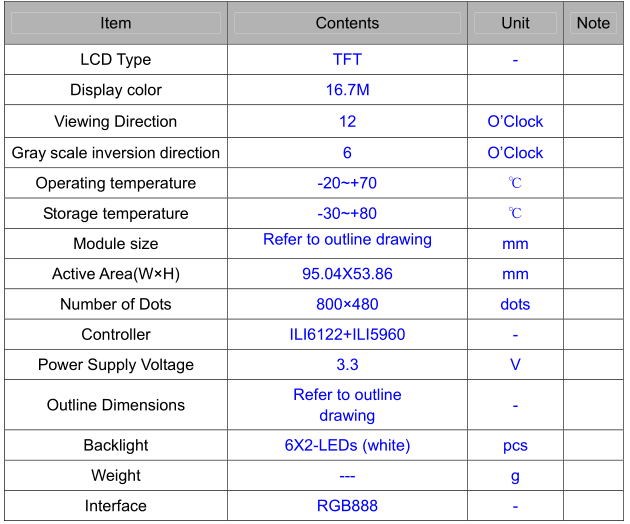

1. Gerneral Specification Place of Origin:Guangdong China (Mainland)Brand Name:Huayuan
Model Number:TFT059A
Type:TFT

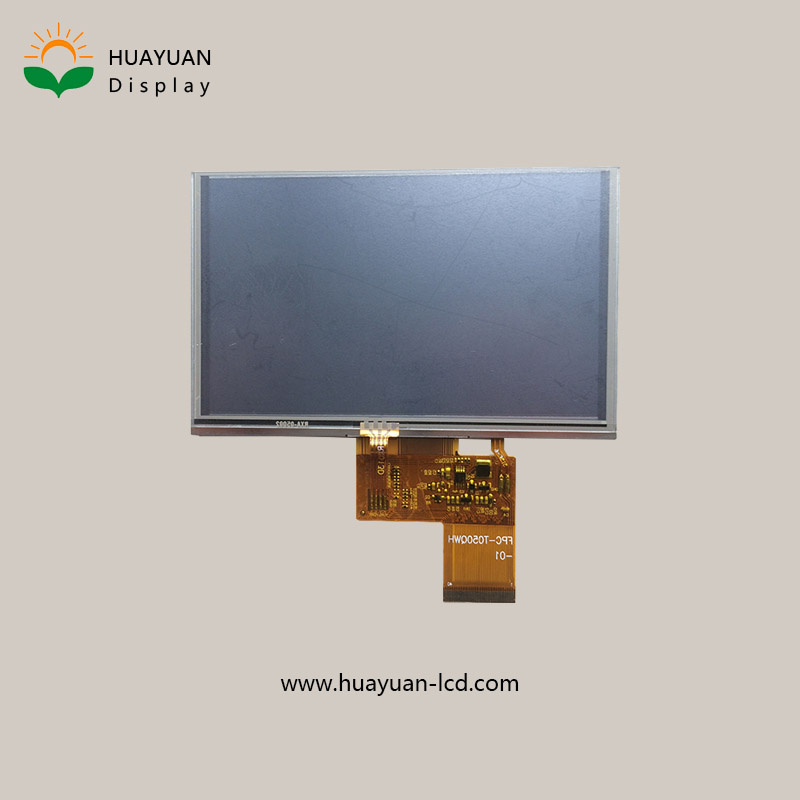

Size: 5 inch tft touch display
Resolution: 800x RGB x 480(WVGA)
Backlight: 12 LED in Series
Viewing direction: 6 O'Clock
Driver: ILI6122+ILI5960
Interface: 24 Bit RGB
FPC cable: 40 pin
Touch Panel: with touch panel
Outline dimension:120.7x75.8x4.3mm
Operating temp: -20 to 70
Customized:Available

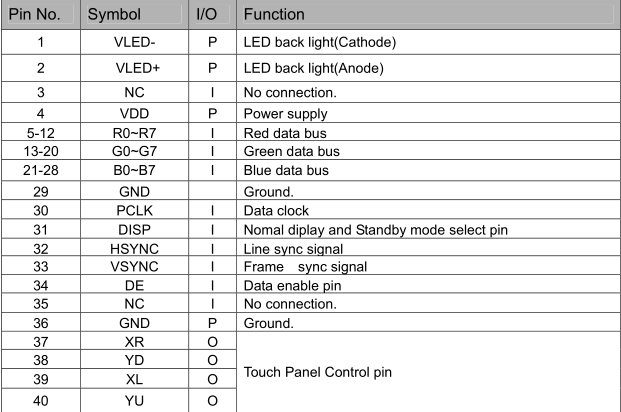

2. PIN information

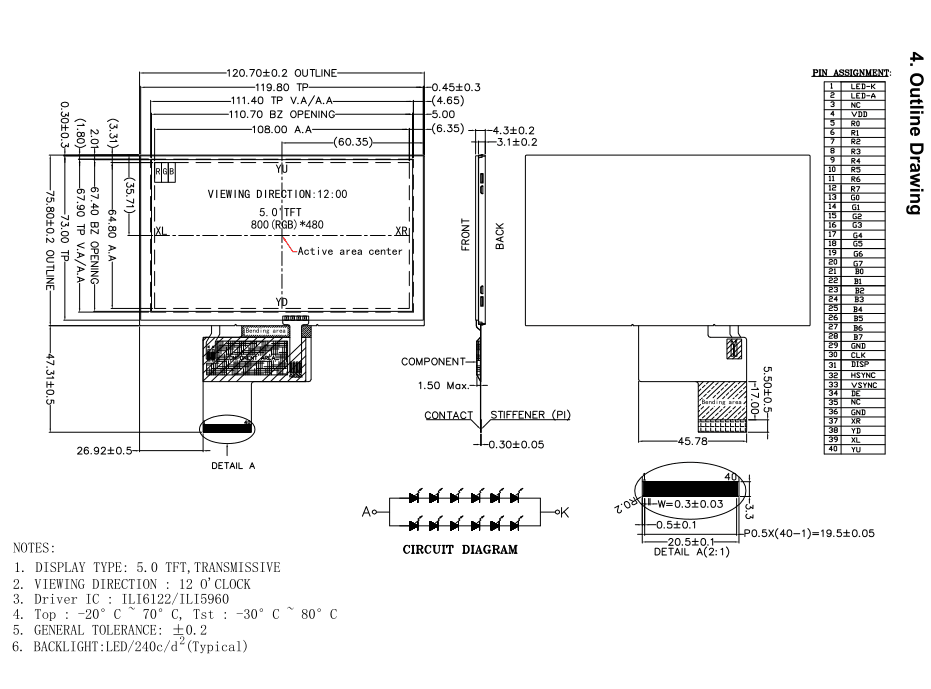

3.outline drawing
4.Packaging & Delivery
Packaging Details: in an anti-statics bag packed in carton or according to the customer's requirement
Delivery Detail: 7 days for sample and 25-30 days for mass production
