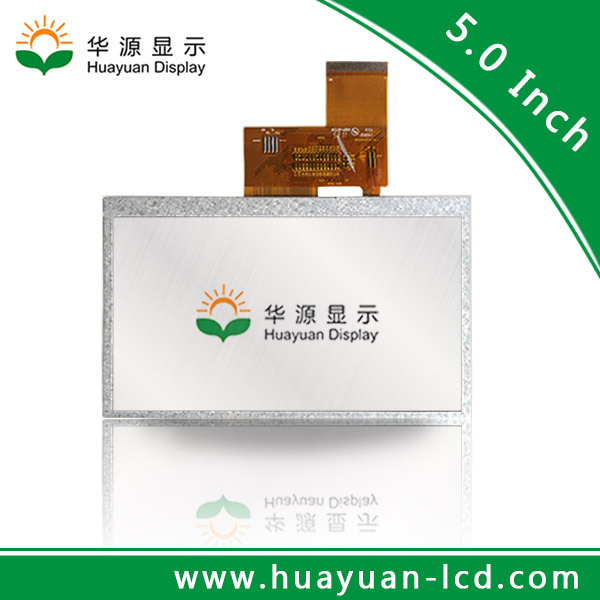

5 Inch LCD Screens Touch Screen
| Price: |
US $ 7-9/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
TFT079A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
5 Inch |
| Resolution: |
480*272 |
| LED Numbers: |
10 LEDs |
| Color Depth: |
24bit |
| Driver IC: |
Ili6482 |
| Pin: |
40 Pin |
| LCD Type: |
TFT Transmissive Normal White |
| Pixel Configuration: |
R.G.B.Vertical Stripe |
| Module Size(W*H*T): |
120.7*75.8*3.1 |
| System Interface: |
24 Bits RGB Interface |
| Touch Screen Type: |
Resistive |
| Type: |
Color |
| Display Technology: |
TFT |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |
Product Description

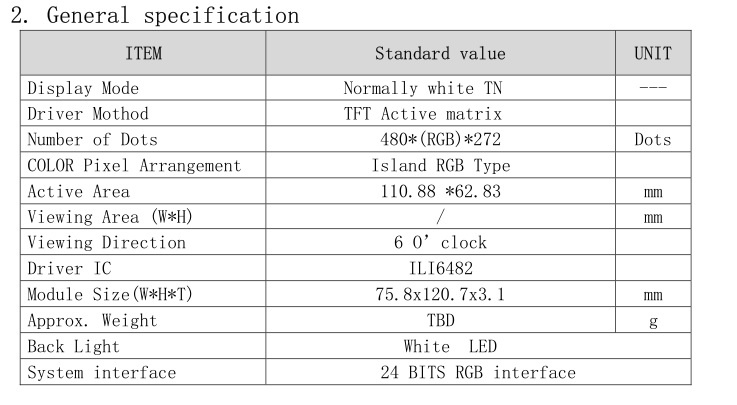

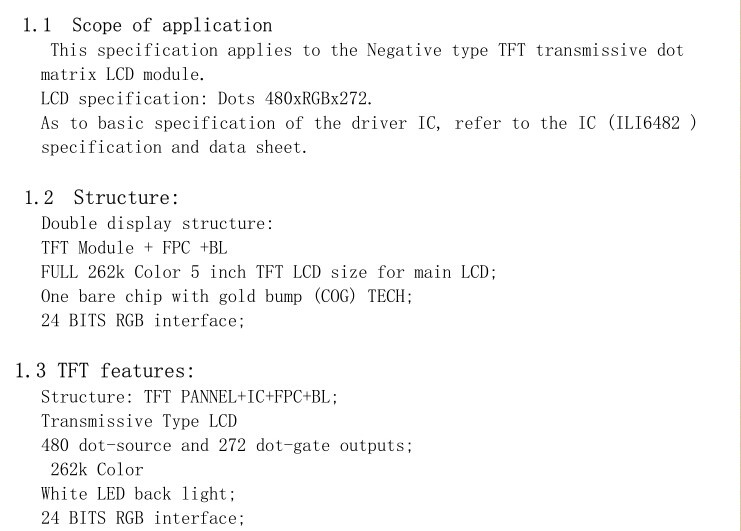

DATA SHEET 5 inch Lcd Screens touch screens
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: huayuan
- Model Number: TFT078A
- Type: TFT
- LCD Type: TFT transmissive normal white
- Number of dots: 480*272
- Pixel Arrangement: RGB vertical stripe
- Driver IC: ILI6482
- Module size(W*H*T): 120.7*75.8*3.1
- PIN: 40 pin
- Backlight: 10 LED
- System Interface: 24 Bits RGB interface
- Warranty: 12 months
- Quality: 100% test by aging room
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
