| Prod Model: |
DMT48270T050_18WT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
5 Inch |
| Ratio: |
16:9 |
| Communication: |
Serial RS232/RS485 |
| Type: |
LCM |
| Display Technology: |
TFT |
| Usage: |
Small-sized LCM |
| Viewing Angle: |
TN＋FILM |
Product Description

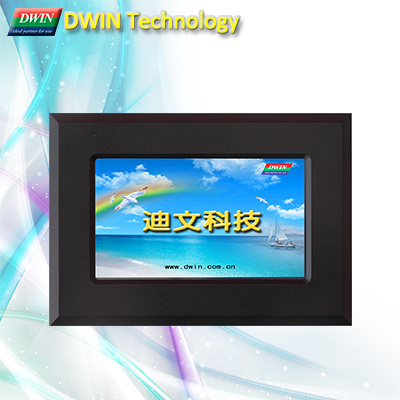

Smart UART-interface, TFT LCD Module with RS232 / RS485 serial communication, supporting MODBUS protocol. Specially designed for PLC / MCU application.
Up to 65K color (16-bit) true color display, which could make your products more attractive.
Reliable performance with wide temperature/voltage range, achieving it's various application whatever in industrial & consumer field with its water-proof plastic enclosure.
With self designed DGUS_SDK software and pre-installed commands, anyone could design their idea interface in a short time.
|
Item |
Parameter |
Description |
|
LCD type |
TFT |
|
|
Resolution |
800×480 |
90°rotation by configuration file (480×800) |
|
Color |
65K (65536) colors |
16 bit color 5R6G5B |
|
Active Area(A.A.) |
110.9mm(W)×62.8mm(H) |
|
|
Touchscreen type |
4-wire resistance touchscreen |
|
|
Touchscreen inaccuracy |
+/- 0.5% |
Calibrate on running |
|
Backlight type |
LED |
The half brightness life will not less than 30000 hrs. |
|
Brightness |
300nit |
64 levels adjustment;
Touchscreen control brightness and light time. |
|
SD slot |
SD/SDHC |
FAT32 file format;
Download and upgrade pictures, fonts and configuration files. |
|
RTC accuracy |
1 sec/24 hours |
25 celsius |
|
Other hardware |
Buzzer |
Software controls tweet;
Automatically sound prompts when effective touch button is clicked. |
l Working environment & Reliability Test
|
Item |
Conditions |
Min |
Typ. |
Max |
Unit |
|
Working Temperature |
60%RH at 12V voltage |
-20 |
25 |
70 |
o C |
|
Storage Temperature |
- |
-30 |
25 |
85 |
o C |
|
Working Humidity |
25 o C |
10% |
60% |
90% |
RH |
|
Aging Test |
- |
- |
24 |
- |
H |
|
ESD Protection grade |
IEC Class 4 (Contact and In-Air) |
|
Protection grade |
IP65 (Front) |
|
Other certification |
CE RoHS |
l Interface
|
Item |
Description
Min
Typ
Max
Unit |
|
Power voltage |
DC 6.0V-42.0V, with Reversed Polarity Protection |
|
Power consumption |
3.0W (12V, 250mA) |
|
Interface model |
N81 |
|
Interface protocol |
RS485 & RS232 |
|
Socket |
6Pin_3.81mm |
l Software features
|
Item |
Description |
|
Software platform |
DWIN DGUS system software |
|
Register space |
256 Bytes |
|
Variable storage space |
56K Bytes |
|
Fonts & icons storage space |
32M Bytes |
|
Pictures storage space |
224MB, 869 full-screen pictures |
l Installation features
|
Item |
Description |
|
Case material |
ABS + PC engineering Plastic |
|
Case color |
Black |
|
Dimension |
160.0(mm)×107.0(mm)×21.3(mm) |
|
Hole size (Recommended) |
150.8(mm)×95.8(mm) |
|
Installation depth |
24.3(mm) (incl. 6pin_3.81mm Phoenix Connector) |
|
Weight |
300g |
|
Accessories |
Waterproof rubber gasket, buckles |
