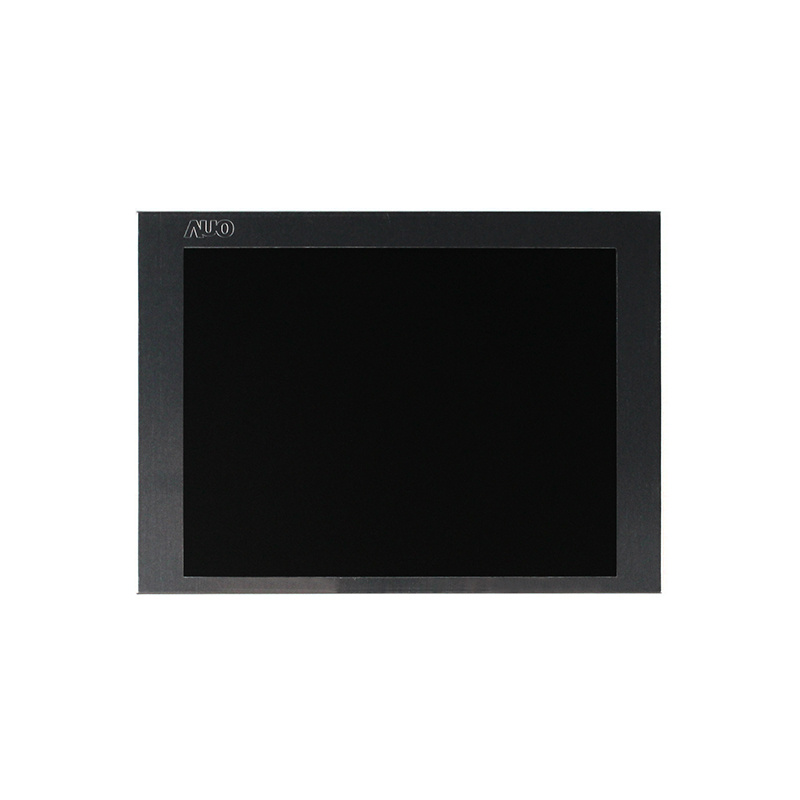

5.7'' TFT LCD Display Use for Industrial Instruments
| Price: |
US $ 35-50/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
J057VGNN02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
640X480 |
| Active Area(Mm): |
115.2X86.4 |
| Interface: |
Digital(RGB 24bits) |
| Type: |
TFT |
| Application: |
Graphic Design |
| Aspect Ratio: |
16:9 |
| Widescreen: |
Widescreen |
| Feature: |
LED Backlight Display |
| Response Time: |
10ms |
| 3D: |
Not 3D |
| Optimum Resolution: |
640X480 |
| Screen Size: |
5.7 |
| Interface Type: |
Can Be Customized |
Product Description
Product Name
5.7 inch TFT LCD display for industrial instruments
Product discription
Product Advantages
1. Use 5.7'' TFT standar interface, can take place other 5.7'' TFT compatibly.
2. Provide colorful display solution for industrial instruments.
Product Parameter
ItemSpecification
Screen Size5.7"
Resolution800 x 480
Luminance(cd/m)350
Contrast Ratio500:01:00
Viewing Angle (Tpy.) θT/θB/θL/θR50/70/70/70 deg
Response Time10ms
Module Size(mm)120.7 x76.3 x 3.1
Active area(mm)108 x 64.8
Dot Pitch(mm)0.045(W)X0.135(H)
InterfaceDigital (RGB 24bits)
Power Consumption0.223W
Operation Temperature -20~70°C
Storage Temperature -30~80°C
Item
Specification
Screen Size
5.7"
Resolution
640x480
Luminance(cd/m)
700
Contrast Ratio
800:01:00
Viewing Angle (Tpy.) θT/θB/θL/θR
70/70/80/80 deg
Response Time
15ms
Module Size(mm)
144.0x104.6x12.3
Active area(mm)
115.2x86.4
Dot Pitch(mm)
0.18(W)X0.18(H)
Interface
Digital(RGB 18bits)
Power Consumption
3.74W
Operation Temperature
-30~85 °C
Storage Temperature
-30~85 °C
Volatage and current
Item
Conditions
Min
Typ
Max
Unit
Power Voltage
TFT panel
3
3.3
3.6
V
Backligt
9
12
20
V
Operation Current
TFT panel
0
1.5
155
mA
Backligt
-
26.7
28.1
mA
Reliablitity test
Item
Conditions
Min
Typ
Max
Unit
Working Temperature
-30
25
85
°C
Storage Temperature
-30
25
85
°C
Working Humidity
5%
-
95%
%
