| Prod Model: |
GH320240-5701 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Construction: |
Tab |
| Display Type: |
Stn,Negative or Positive ,Transmissive |
| Operating Voltage (Vdd): |
3.3V,5V |
| Viewing Area: |
122.00*92.00 |
| Outline Dimension: |
166.75*109.00*10.6 |
| Controller: |
Nt7701 or Equivalent Controller |
| Usage: |
Notebook LCM |
| Digital LCD Module Type: |
Metering Module |
| Touch Screen Type: |
Resistive |
| Type: |
Graphic |
| Response Time: |
10ms |
| Viewing Angle: |
MVA |
| Display Technology: |
STN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column Control Type |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |
Product Description

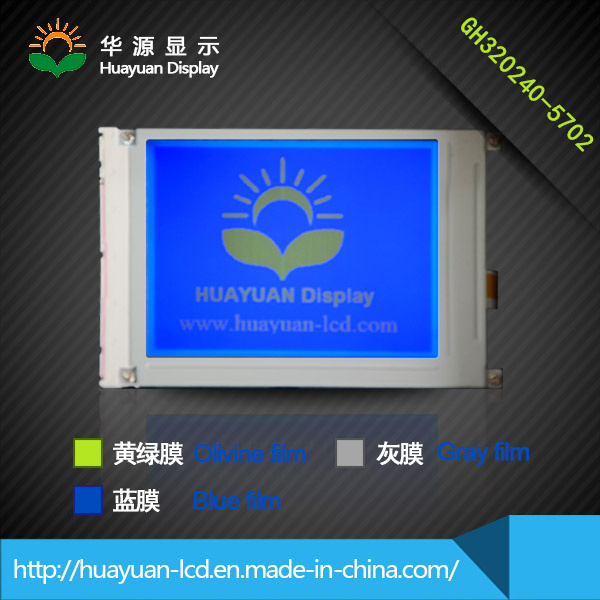

Model: GH320240-5701
ConstructionTAB
Display TypeSTN, Negative or Positive, Transmissive
Operating Voltage (VDD)3.3V, 5V
Backlight Voltage(VBL)3.3V, 5V
Operating Temperature (degree Celsius)-20º C~70º C
Storage Temperature (degree Celsius)-30º C~80º C
Viewing Direction12: 00
Dot Matrix320*240
Viewing Area122.00*92.00
Active Area115.17*86.37
Outline Dimension166.75*109.00*10.6
ControllerNT7701 or equivalent controller
BacklightLED, White
If you have any questions or queries, please do not hesitate to contact us. Welcomed to visit any of my other items. We are glad to help you!
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|
| VSS | NC | NC | NC | NC | D3 | D2 | D1 |
|
| 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
|
| D0 | VEE | VSS | VDD | DISP | CL2 | CL1 | S |
|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|
| NC | NC | NC | NC | D0 | D1 | D2 | D3 |
|
| 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 |
| DISP | S | NC | CL1 | CL2 | VDD | VSS | VEE | V0 |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|
| D0 | D1 | D2 | D3 | DISP | S | NC | CL1 |
|
| 9 | 10 | 11 | 12 | 13 | 14 |
|
|
|
| CL2 | VDD | VSS | VEE | V0 | GND |
|
|
|
