| Prod Model: |
CS068C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Backlight: |
LED |
| Brightness: |
250CD/M2 |
| Color Standard: |
PAL/NTSC Auto |
| Screen: |
TFT LCD Screen |
| Screen Ratio: |
4:3 |
| Resolution: |
960(H)×234(V) |
| Power Supply: |
DC 24V |
| Product Dimension: |
175mm (L)×147mm (W)×101mm (H) |
| Power Consumption: |
Less Than 5 W |
| Net Weight: |
580g |
| Definition: |
420TVL |
| Chip: |
CCD |
Product Description
Specifications

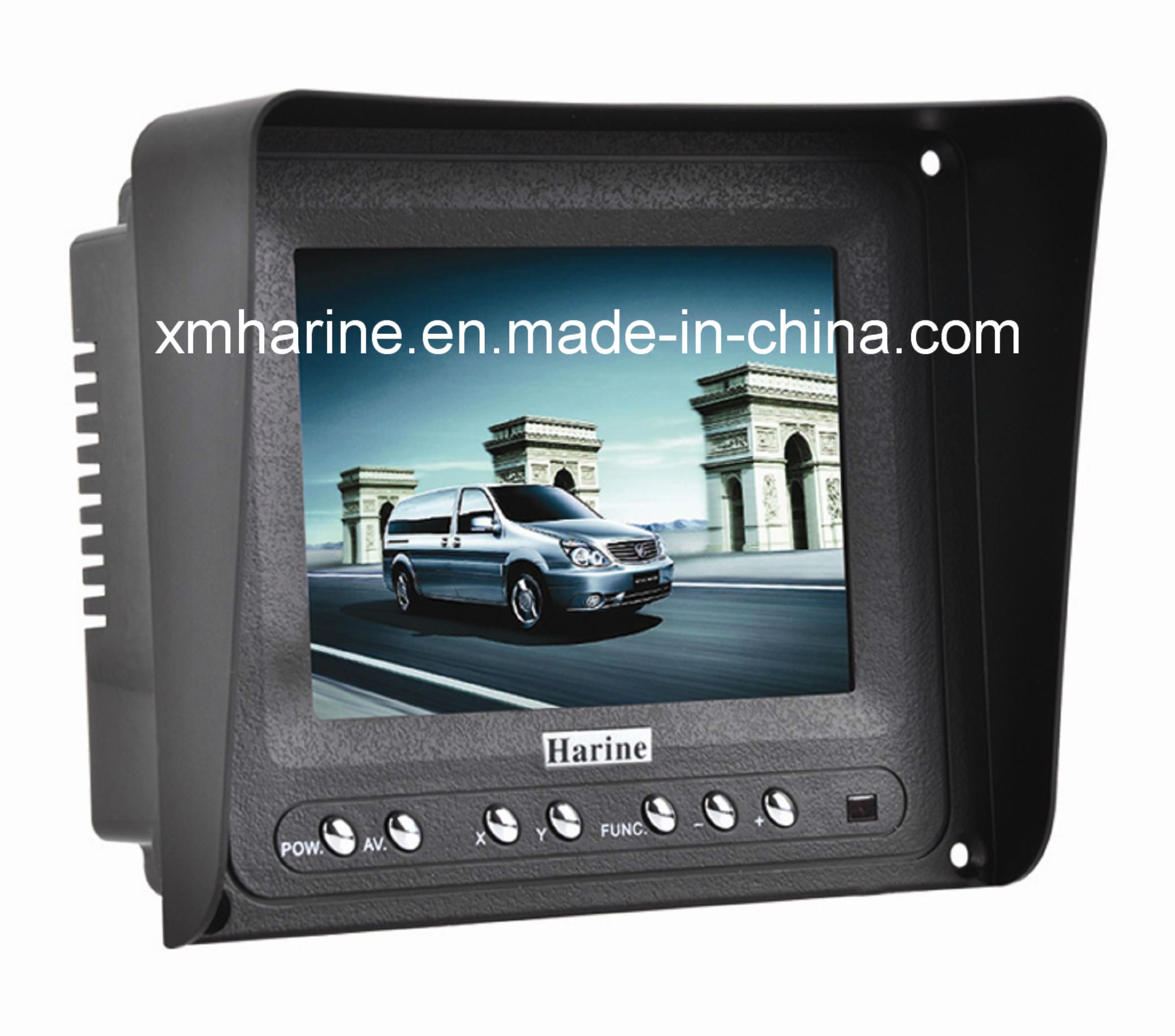

Rear view camera and 5.6 inch LCD Monitor, which is suitable for the field of reversing ,security .
Technical information:
| Item | Specification |
| Screen Size | 5.6 inch |
| Screen | TFT LCD screen |
| Screen Ratio | 4:3 |
| Resolution | 960(H)×234(V) |
| Contrast | 300:1 |
| Brightness | 250cd/m |
| View Angle | V:100/H:120 |
| Light Source | LED |
| Color System | PAL/NTSC |
| Video Input | 1VP-P 75Ω (two way) |
| Image Inversion | U/D L/R;manual(optional) |
| Interface | RCA, Aviation plug |
| Power Supply | DC 24V |
| Product Dimension | 175mm (L)×147mm (W)×101mm (H) |
| Net Weight(monitor) | 580g |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~85 |
| Power Consumption | less than 5 W |
Feature:
1.3-CH video input(4CH- max)
2.Automatically switch to the rear-view camera when reversing
3.Brightness, contrast and chroma can be adjusted by key-press
4.Wide range of power supply
5.Isolated power supply,hight anti-interference
6.Vehicle disturb shielding line and RS765-4plug for signal transmit
