| Power: |
Solar |
| Compressor: |
Gmcc/Hitachi |
| Inverter To 110/220V: |
No Need |
| 100% Off Grid: |
No |
| Warranty: |
1 Years for Whole System |
| Solar Panels: |
No Need |
| Batteries: |
No Need |
| Solar Controller: |
No Need |
| Manufacturer: |
Yes |
| Color: |
White |
| Type: |
Window Mounted Air Conditioners |
| Capacity: |
18000-24000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
36-49dB |
| Certification: |
CCC |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Solar |
| Power Type: |
AC |
| Condition: |
New |
Product Description

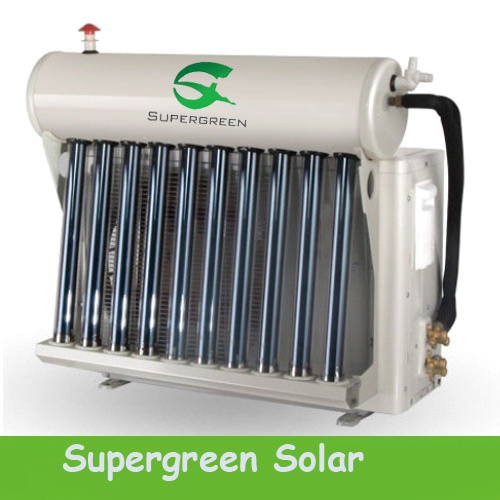

48V Split Type Solar Air Conditioner
Why Hybrid solar air conditioner can save electricity?
Here are the reasons:
Firstly, it absorbs solar energy to heat the inside medium by using a solar collector. Freon from the compressor goes through the copper coil inside the collector and undertakes a heat exchange. Freon exchange heat with the medium inside the solar collector then go through a cycle inside the system for cooling and heating.
Secondly, it adopts a highly efficient heat-exchange system. The use of the internal thread pipe, hydrophilic aluminum fin and the optimal heat exchange system reduce energy loss, improve the overall efficiency and effectively ensure the performance. Therefore, hybrid solar air conditioner is more convenient and energy-saving than regular air conditioner.
Comparing to Current Products
1. Conventional air conditioner consumes too much, users have to pay a heavy electricity bill.
2. Photovoltaic (PV) system costs a large amount of money to build up.
3. Thermally driven absorption cooling is also very costly, and its cooling capacity is not big enough.
Hybrid Solar Air Conditioner
(9000BTU-24000BTU) for Wall Mounted range
Up to 48000btu for Cassette,Ducted, Floor standing,Floor ceiling series.
Features:
1.on Grid Working with 50% solar energy
2.Vacuum thermal tube solar collector ,with easy installation and affordable cost
3.Supreme high efficiency rating reach to 4.0
4.International famous brand compressor
5.R410A environment friendly gas
Specifications:
| Model No. | SGS-9000CO(H) | SGS-12000CO(H) | SGS-20000CO(H) | SGS-24000CO(H) |
| Power Supply:220-240VAC, 1PH, 50Hz | | | | |
| Performance | | | | | | | |
| Capacity | Cooling | Btu/h | 9000 | 12000 | 20000 | 24000 |
| W | 2600 | 3500 | 6000 | 7200 |
| Heating | Btu/h | 10000 | 13000 | 22000 | 27000 |
| W | 2900 | 3800 | 6600 | 7900 |
| Noise | Indoor | dB(A) | ≤40 | ≤42 | ≤46 | ≤50 |
| Outdoor | dB(A) | ≤50 | ≤52 | ≤56 | ≤58 |
| Air Circulation | m³/h | 500 | 550 | 850 | 1150 |
| Suitable Area | m² | 11~17 | 15~23 | 25~42 | 30~48 |
| EER | W/W | 3.64 | 3.89 | 3.88 | 3.82 |
| Btu/h/w | 12.42 | 13.27 | 13.24 | 13.03 |
| Power Consumption | | | | | | |
| Power Input | Cooling | W | 650~770 | 800~1025 | 1350~1560 | 1700~1900 |
| Heating | W | 650~780+350 | 800~1050+350 | 1350~1590+350 | 1700~1950+350 |
| Rated Current | Cooling | A | 3.00~3.60 | 3.70~4.80 | 6.30~7.30 | 8.00~8.90 |
| Heating | A | 3.00~3.65+1.6 | 3.70~4.90+1.6 | 6.30~7.50+1.6 | 8.00~8.90+1.6 |
| Vacuum Tube | Diameter*Length*Pcs | 47mm*500mm*10 | 47mm*500mm*10 | 47mm*620mm*11 | 47mm*620mm*11 |
| Dimensions | | | | | | | |
| Indoor Unit | Net | mm | 802*265*190 | 880×286×203 | 940×300×220 | 1080*220*300 |
| Shipping | mm | 860*325*255 | 935×350×270 | 1003×360×280 | 1136*285*360 |
| Outdoor Unit | Net | mm | 790*260*540 | 790*260*540 | 850*300*755 | 940*300*755 |
| Shipping | mm | 910*370*610 | 910*370*610 | 950*410*760 | 990*400*770 |
| Water Tank | Shipping | mm | 910*400*330 | 910*400*330 | 980*400*370 | 980*400*370 |
| Vacuum Tube | Shipping | mm |
| Weight | | | | | | | |
| Indoor Unit | Net/Gross | kg | 9/10.5 | 10/11.5 | 16/17.5 | 20/22 |
| Outdoor Unit | Net/Gross | kg | 31/34 | 38/40 | 50/52 | 55/58 |
| Solar Collector | Net/Gross | kg | 13/15 | 13/15 | 16/17 | 16/17 |
| Loading Qty | in 20feet | sets | 66 | 66 | 49 | 46 |
| 40HQ | sets | 162 | 162 | 120 | 112 |
FAQ:
********************************************************************************************************************************
Our company products:
1. Hybrid solar air conditioner
2. 48V DC 100% solar air conditioner
3. Split wall mounted type hybrid solar air conditioner
4. Cassette type hybrid solar air conditioner
5. Ceiling & Flooring type hybrid solar air conditioner
6. Floor Standing type hybrid solar air conditioner
7. The ductless type solar air conditioner
8. Solar insect killer/Mosquito/Moth killer lamp........
We only provide you Most Stabalized products
Most satisfied service
Best Solution for you and your customer!
If you are interested in any of our products, please contact us freely!
