| Prod Model: |

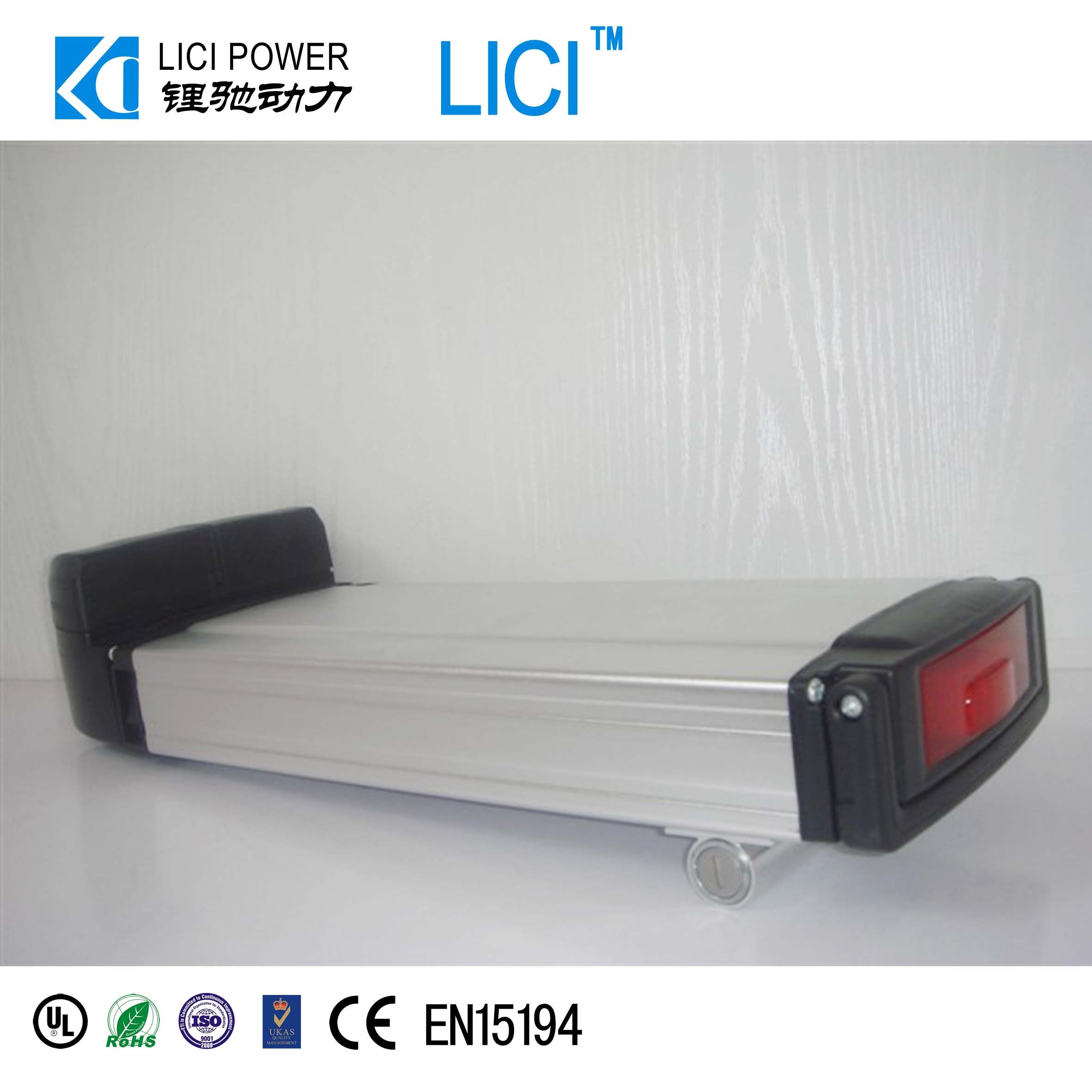

LC-B02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Lithium-Polymer Battery Pack |
| Connection Mode: |
Parallel Connection |
Product Description
Key points:
1. High safety
2. No memory
3. Enviroment friendly
4. High nergy density
5. Long service life over 1000 cycles
6. Stable performance
7. Alloy&multifunctional battery case
8. Low self-discharger
9. BMS system(battery management system)
10. Brand new battery cell
11. ODM & OEM order accepted
Available voltage:24v, 36v, 48v, 60v
Available capacity:8Ah, 9Ah, 10Ah, 12Ah, 13Ah, 15Ah, 20Ah
Specifications of product
Model No.LC-B01
MaterialNickle-Cobalt-Manganese Lithium Oxide
Dimension340*150*75mm or made to order
Charge Method CC/CV
Nominal Voltage 36V /48v
Discharge Cut-off Voltage30v
Charge cut-off voltage 46.8v
Nominal Capacity 10Ah /12Ah
Internal Resistance ≤200mΩ
1500 times cycles ≤250mΩ
Max charge voltage 42V
Max charge current 5.0A
Max discharge current 20A
Normal working current 10A
Working temperature /relative humidityCharge
Discharge
Storage temperature and humidity0ne month:-20~+55°C,45~85%RH
Two months:-20~+45°C,45~85%RH
One year:-5~+20°C,45~85%RH
Cycle life1000 TIMES CYCLES (Normal temperature ,1C cycle to 60%,100%DOD)
BMS system
N.W.3.2kg
Package plastic film, Foam padding, carton
Packing weight 3.4kg
Warranty 2 year
Safety certificate CE,UL, RoHS,ISO9001
Application
This battery can apply to foldable bike, electric sport bike, electrric scooter and electric wheelchair, golf car, etc.
Warranty
1 year, change for new battery due to inferior battery
Bore size: 141.2mm*45.71mm*270mm
Outer dimensions: 148.7mm*49.86mm*270mm
