| Prod Model: |
LC-B08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Specifications

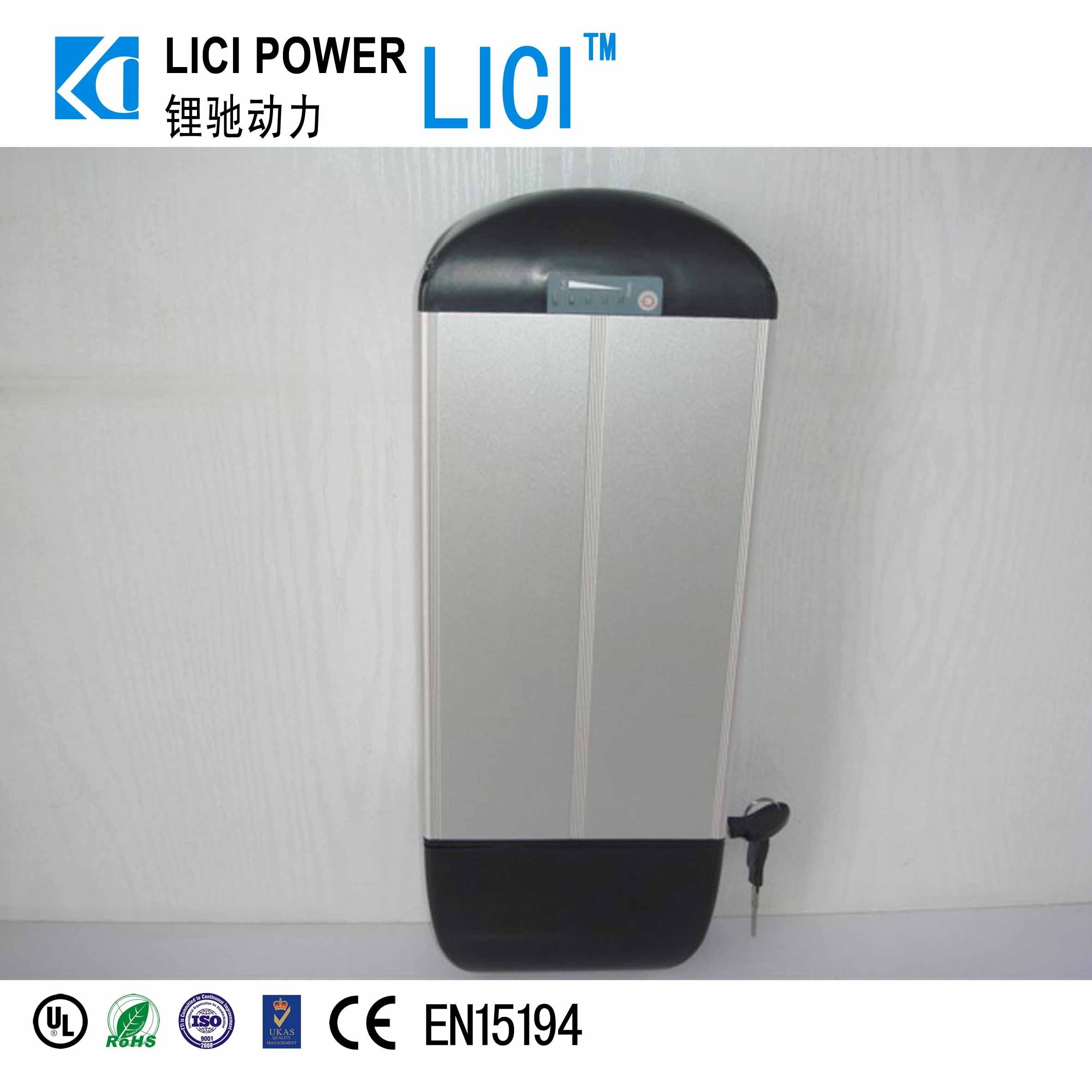

1. Thium battery for ebike
2.24V, 36V, 48V
3.8Ah, 10Ah, 12Ah, 15Ah, 20Ah
4. Brand new cell
5. CE, RoHS, MSDS, UN38.3
Specifications of product
Model No. LC-B08
Li-polymer battery
Charge Method CC/CV
Nominal Voltage 24V/ 36V/ 48V
Discharge Cut-off Voltage30V
Charge cut-off voltage 46.8V
Nominal Capacity 10Ah /12Ah
Internal Resistance ≤ 200mΩ
1500 times cycles ≤ 250mΩ
Max charge voltage 42V
Max charge current 5.0A
Max discharge current 20A
Normal working current 10A
Working temperature /relative humidityCharge
Discharge
Storage temperature and humidity0ne month: -20~+55° C, 45~85%RH
Two months: -20~+45° C, 45~85%RH
One year: -5~+20° C, 45~85%RH
Cycle life1000 TIMES CYCLES (Normal temperature, 1C cycle to 60%, 100%DOD)
BMS system
N. W. 3.2kg
Package plastic film, Foam padding, carton
Packing weight 3.4kg
Safety certificate CE, UL, RoHS, ISO9001
Features:
1. Longer cycle life
The cycle life of the battery pack can reach 1000 times with 0.2C-1C discharge current.
2. Portable battery
Small dimension and light weight, the Li-ion battery is half dimension and third weight of lead-acid battery, however excelent performance and easy disassembling, the batteries are approximately 2.2kg (24V) and 3.2kg (36V) in weight.
3. Green battery to protect environment
The lead-acid battery will pollute the environment seriously because of frequent replace, but the Li-ion battery is green power without pollution.
4. Very safe and Reliable
The Li-ion battery is more safe and reliable than the lead acid one. It won't explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat.
5. Rapid charge
The battery can be full charged in 4 hours
6. Banlance charge and discharge
With BMS system it will not over-discharge and over-charge. It is as a balance charger.
8. ODM and OEM orders are welcome
We can provide customized Li-ion battery, supply sample for testing and approvement
9. Application:
This battery can apply to foldable bike, electric sport bike, electrric scooter and electric wheelchair, etc.
10. Brand new cell, brand new battery
Warranty
1 year, change for new battery due to inferior battery
Demension:
Bore size: 145mm*56mm*270mm
