| Prod Model: |
D470D15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
47'' |
| Resolution: |
1920*1080 |
| Active Area: |
474*294 |
| Dimension: |
532*354*54 |
| Contrast Ratio: |
3000:1 |
| Viewing Angle: |
178/178 |
| Response Time: |
6.5ms |
| Application: |
Semi Outdoor AD Player |
| Screen Size: |
40-50 Inches |
| Installation: |
Wall-Mounted |
| Type: |
Standalone Version AD Player |
| Touch Screen Type: |
Resistive |
| Screen Technology: |
LED |
| Interface Type: |
HDMI |
| Remote Control: |
With Remote Control |
| OS: |
Windows |
| Customized: |
Customized |
Product Description
Screen parameter
LCD Screen Size: 47''
Display Resolution: 1920*1080
Outline Dimensions (mm): 532(h) x 354(v) x 54(d)
Active Area(mm): 474(h) x 294(v)
Brightness(cd/): 1500cd/m2
Contrast Ratio: 3000:1
View Angle: 178(H)/178(V)
Respond time: 6.5ms
Display Color: 16.7M
Driver
Power: 180W
Input Voltage: 110-240VAC, 50/60HZ
Other
Loudspeaker: 2*10W
Accessories: Remote, instruction, maintain card, Certificate of Approval, key, Power Wire

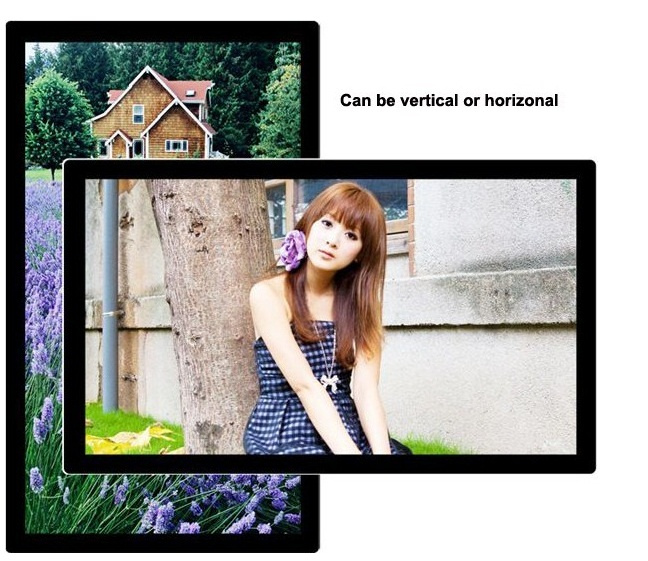

Display mode: Floor standing model or lying mode
Installation: Standalone Version, Network Version
Function
Video format: MPEG1/MPEG2/MPEG4
Audio format: MP3
Image format: JPEG/BMP/PNG/GIF
Image resolution: 480P/720P
Play mode:Power on, single card auto loop play;classified files auto loop play; multi cards auto loop display etc
Time: year/month/day/week/h/m/s, in the top right corner (open and close optional)
Timing open &close: 5 times per day, 7 days a week, free time
Timing play: 7 days a week, free set the play program everyday
Alarm clock: Set 5 alarms one day, once ring the alarm, play the specified program
OTG: Support copy, delete, remove, rename, build new file among different cards
Running subtitle: Can set the play location, word size, color and back-color
Log files: Record the play time (concise to second), the play contents
Angle subscript display function:Can set the play time, just support BMP picture with biggest resolution 160*90
Memory function: Power off, memory the time of the play; power on, play from the time, not from beginningKey and lock function: Use the remote controller after inputting the password
Interface: USB flash drive, SD card(MMC/MS compatible), CF card
Encrypt CF card: Play the contents in the CF card after inputting the password
Sound volume: Can set the volume of sound in the different time
Storage card lock: Have a anti-theft lock in the case, equip 2 sets key
Other function: Customized
