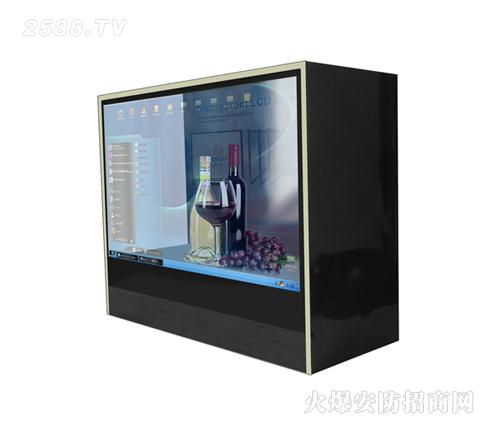

| Prod Model: |
D215DT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
21.5inch |
| Touch Screen: |
4points |
| Resolution: |
1440*900 |
| Backlight: |
LED |
| Response Time: |
8ms |
| Viewing Angle: |
170/160 |
| Color: |
16.7m |
| Scanning Frequency: |
60Hz |
| Application: |
Outdoor AD Player |
| Installation: |
Combined |
| Type: |
Touch Screen Panel AD Player |
| Touch Screen Type: |
Capacitive |
| Screen Technology: |
LED |
| Interface Type: |
HDMI |
| Remote Control: |
With Remote Control |
| OS: |
Android |
| Customized: |
Customized |
| Screen Size: |
21.5inch |
Product Description
| Model | D121DT | D172DT | D190DT | D220DT | D293DT | D320DT | D420DT | D460DT | D500DT | D650DT |
| Panel Size | 12.1 | 17.2'' | 19'' | 22'' | 29.3'' | 32'' | 42'' | 46'' | 50'' | 65'' |
| Display Area(H*V)mm | 261*163 | 409*153 | 378*291 | 477*300 | 697*261 | 697*392 | 930*523 | 1018*572 | 1095*616 | 1428.5*803.5 |
| Ratio | 16:10 | 16:6 | 4:3 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Resolution | 800*408 | 1024*768 | 1280*1024 | 1680*1050 | 1366*512 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
| Power Consumption | <30W | <30W | <40W | <40W | <50W | <50W | <60W | <80W | <90W | <100W |
| Dimensions(W*H*D)mm | 295*215*200 | 445*215*200 | 420*370*250 | 530*370*300 | 740*335*200 | 749*470*300 | 980*635*300 | 1080*635*300 | 1135*696*300 | 1478*880*300 |
| Standard support SD/USB/CF;USB/network content update *plug-and play; support formats:1/2/4,MP3,avi.ect,up to HD video playback |
|
|
| Functiongs optinal | Multi-tonch;Lan/Wifi/3G etc network;X86/Andriod ect |
|
|
Application
1. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
2. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
3. Non-profit Organizations: Telecommunications, post offices, hospital, schools;
4. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
5. Real Estate Property: Apartments, villas, offices, commercial buildings,model rooms, property brokers;
6. Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
DEDI HK Technology Co., Ltd, founded in 2009, is a professional and leading HI-TECH company which specializes in R&D, production, sale of high-brightness LCD panel with LED backlit. Through independent innovation, it has been committed to provide customers with energy-efficient, environmental, outdoor LED panel and all-weather outdoor LCD advertising machine.
Company's business scope covers more than 100 countries and regions, products are widely used in advertising machine, digital signage, industrial computer, Kiosk, electronic newspaper, military aviation, medical equipment, display system on high-speed railway station and metro station, etc. At present, the display size of LCD panel with LED backlight from 7 inch to 82 inch, its brightness from 500 nit, 1000 nit, 1500 nit, 2000 nit to 2500 nit.
Company has comprehensively implemented ISO9001 quality management system. Production is conducted by the standard of RoHS and WEEE. On production process, we value every detail to fulfill your expectations. High-quality product and good service is provided by us at the principle of "Technology and science prospering enterprise, service upmost".
Company's direction: Client's reputation is to honor, and customer win-win is the mission
To science and technology uphold: "user experience" of the service concept, workflow management technology, exquisite manufacturing scientific, standardized production technology, perfect security system, strict working attitude, high quality service, excellent quality assurance, rational price, win-win business philosophy, in good faith with customers more professional cooperation.
