| Prod Model: |
D470D20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
47inch |
| Screen Type: |
LCD Screen |
| Aspect Ratio: |
16:9 |
| Brightness: |
2000nit |
| Temperature: |
-20~45 Degree Centigrade |
| Interface: |
RS232/USB/HDMI/VGA |
| Power Supply: |
AC100-240 50/60Hz |
| Application: |
Outdoor AD Player |
| Screen Size: |
40-50 Inches |
| Installation: |
Vertical |
| Type: |
Network Version AD Player |
| Touch Screen Type: |
Resistive |
| Screen Technology: |
LCD |
| Remote Control: |
With Remote Control |
| Customized: |
Customized |
| Interface Type: |
RS232, HDMI, VGA, DVI |
| OS: |
Android, Window X86 |
Product Description
Specifications

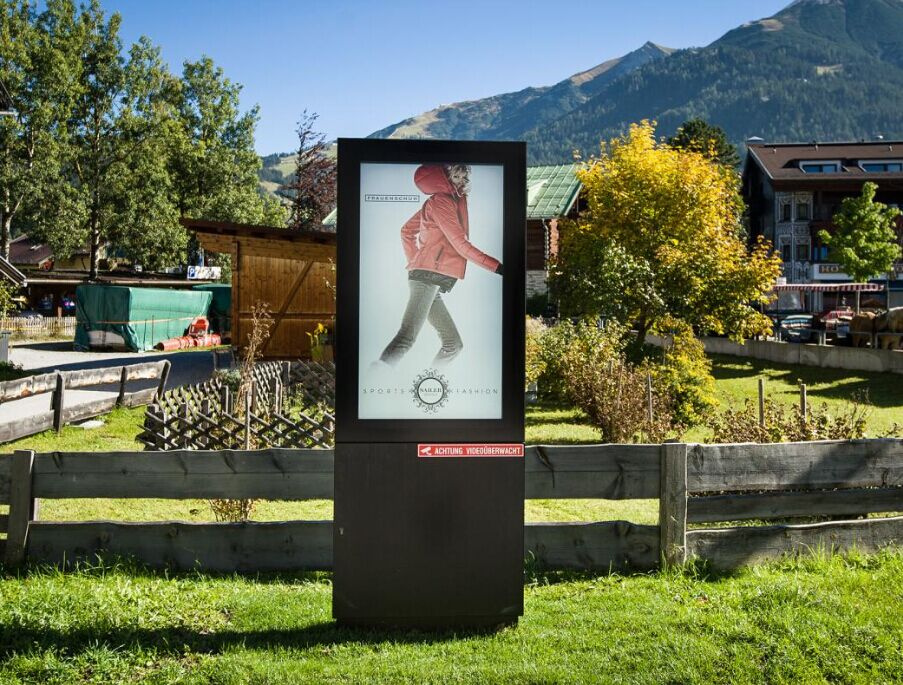

Double-side 47" Vertical Outdoor Digital Poster
-Super IPS panel
-High Brightness
-Work well under low and high temperature
47" Outdoor double-sided Kiosk / digital signage/ totem / Digital Poster / Screen
Highlighted Features
Double-sided solution
IP65 Display Waterproof
Work well under HIGH or LOW temperature
The screen quality doesn't get affected under direct sunlight circumstances.
Transflective High Brightness Screen. 700 cd/m2
Especially designed for interior spaces such as receptions, lobbies, waiting rooms or shop windows with a lot of sunlight.
Playthe.net designed digital signage. Fashionable outlook.
White or Alumunium finish.
| Items | Specification Details |
| CPU | Type | Mini PC |
| CPU | Intel Core 2 Duo |
| Power Consumption | 90W |
| Main Feature | 2.1 Ghz/800/3MB
HP 160 HDP 160GB |
| Screen | Screen Size | 47" (optional 42", 55" and 80") |
| Screen Type | LCD Screen |
| Resolution | Full HD 1920 x 1080 |
| Aspect Ratio | 16: 9 |
| Quantity | 2 (Double-side) |
| Brightness | 2000 cd/m2 |
| Temperature | It can resist a maximum temperature of 105º C. |
| Power Consumption | 360W |
| Main Feature | Super IPS Panel
HIGH Brightness
HIGH Transflective
HIGH Transparencea
HIGH Precision
HIGH Durability |
| Interface | RS232/USB/ HDMI/VGA/DVI |
| Stand | Type | Double-side 47-inch vertical outdoor digital poster |
| Material | AISI-304 stanless steel case |
| Components | Base with six screwed drills using M10 screws Frame with trapezoidal section. IP65 stainless case. Two doors with anti-vandalism antireflection 4+4 layered glas. |
| Finishing Layer | Oven-baked paint. |
| Electrical Equipment | Power Supply | AC 100-240V 50/60Hz |
| Power Sconsumption | 450W - 2A |
| Other | Protections (differential, magneto-thermal), ground connection, screw terminal and triple power strip. It complies with the Low Voltage Electro technical Regulations. |
| Color or Logo | Customizable |
| Dymensions and weight | Net Weight | 280 Kg. / 550 lb |
| Dymensions | 2.30 x 0.90 x 0.30 m. / 90.5 x 35.5 x 11.5 in. |
| Air- Conditioning | Power Supply | 240V 50/60Hz |
| Power Consumption | 580W |
| Cooling Capacity | 860W |
| Temperature Control | playthe.net intelligent temperature control system, keeping the case temperature between +10 and 35ºC, for an outside temperature range between -40 and +55ºC |
| Operation System | Windows 2000/ Windows XP/ Windows 7/ Windows 8/ Linux / Player without Operation System |
| Package | Safe packing with bubble foam, in wooden case with screws |
| Other Peripheral | Wi-Fi connection and Ethernet connection, Web-camera,USB Port, and etc |
