| Prod Model: |
PM470UT2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size:1044.9*590*124mm: |
Gap 4.9mm - 500CD/M2 |
| Application: |
Big-Screen Project |
| Feature: |
Support TV Function |
| Optimum Resolution: |
1920x1080 |
| Screen Size: |
≥28" |
| Response Time: |
8ms |
Product Description

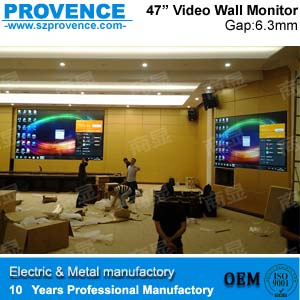

Video wall monitor is used for build a LCD video wall. The LCD screen come from Samsung, LG, Sharp factory. The gap is 3.5~20mm between two screen, resolution up to 1366 * 768/1920 * 1080 pixel full HD of every LCD Video Monitor; . LCD Video wall monitor is the general family of products of our company, and it is very important one; Support the highest single-screen resolution up to 1080p high-definition display, while taking advantage of the new industrial design, combined with advanced process design. A collection of the most advanced 3D digital image processing engine, true image, precise monitoring more detail; And support for up to 7 days 24 hours non-stop work. Another rich interfaces to meet any required applications, intelligent backlight adjustment, automatic temperature control system of the monitor to make more environmentally friendly, more stable and more reliable.
| LCD panel | | | |
| Diagonal Size | 47" | | |
| Aspect Ratio | 16:9 | | |
| Pixel Pitch | 0.5415(H) x 0.5415(W) | |
| Response Time | 12ms | | |
| Resolution | 1920*1080 | | |
| Contrast Ratio | 1400:1 | | |
| Brightness (cd/m2) | 500cd/m2 | | |
| Active display area | 1039.68 (H) x584.82(V) | |
| Display Color (Max) | 1067M | | |
| Viewing Angle(U/D,L/R) | H:89o/89o V:89o/89o | |
| I/O (Input) | (Standard) | -4 | -D |
| VGA | X1 | X1 | X1 |
| DVI | X1 | X1 | X2 |
| HDMI | X1 | X1 | X1 |
| Display Port(DP) | / | / | X1 |
| YPbPr | / | / | X1 |
| CVBS | X2 | X4 | X2 |
| Svideo | / | / | / |
| RJ45(for RS232 IN) | X1 | X1 | X1 |
| USB(for Debug) | X1 | X1 | / |
| I/O (Output) | | | |
| RJ45(for RS232 OUT) | X2 | X2 | X1 |
| Display Port(DP) | / | / | X1 |
| CVBS out | / | / | / |
| Features and Benefits | | | |
| Daisy chain | NO | NO | >100 |
| ID code(by software) | NO | NO | Yes |
| Support 4K mode | NO | NO | Yes |
| Multi monitors (Max:15x15) | Yes | Yes | Yes |
| Image residual function | Yes | Yes | Yes |
| Built-in temperature sensor | Yes | Yes | Yes |
| Colour Auto balance | Yes | Yes | Yes |
| On/Off Timer | Yes | Yes | Yes |
| License Agreement | Yes | Yes | Yes |
| Brightness is balanced | Yes | Yes | Yes |
| ECO mode | Yes | Yes | Yes |
| Smart fan | Yes | Yes | Yes |
| Work status display | Yes | Yes | Yes |
| Multi Windows | Yes | Yes | Max 3 |
| Roaming | Yes | Yes | Yes |
| Vertical video wall | NO | Yes | NO |
| Any mode video wall | NO | Yes | NO |
| Technical Specification | | | |
| OSD language | ,English | | |
| Video Format | PAL,NTSC | | |
| Case Material | Metal | | |
| Color | Black | | |
| Horizontal Frequency | 20 ~ 82KHz(Anolog&Digital) | |
| Vertical Frequency | 55~75Hz | | |
| Optimum Resolution | 1920x1080 at 60HZ | |
| Native Resolution | 1920x1080 at 60HZ | |
PROVENCE (Shenzhen) Technology. Co., Ltd was established in Shenzhen China in Juanary 2011 mainly engaged in intelligent LCD/LED display products. Factory covered over 3000 square meter and there are about 100 employees. Products anging from CCTV monitor, Video wall, Touch all in one, Digital signage to related controller and accessaries etc...
Combined with R&D, marketing, manufacturing & construction as a whole, PROVENCE is not only a terminal display products producer but also a Turkey-solution provider. We have obtained approval of CE, FCC, RoHS ISO9001 Certificates for all products which are exported to America, Canada, Europe, Asian, Middle East and sell well in markets all over the world. Professional OEM/ODM service is also provided.
PROVENCE have been done over 1000 video wall projects for the past few years and had gained reputation for its reliable products and after-sale services. Based on the science and technology, We are aimed to be the No. 1 in intelligent LCD/LED display industry with the principle of "Integrity, Professional & Inovation".
