| Prod Model: |
PM460UT-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE, FCC, RoHS |
| Type: |
TFT |
| Aspect Ratio: |
16:9 |
| Application: |
Surveillance, Advertising, Large-Screen Project |
| Feature: |
Ultra Narrow Bezel Video Walls |
| Screen Size: |
46" |
| Interface Type: |
VGA, DVI, HDMI, Video, YPbPr, RS232 |
Product Description

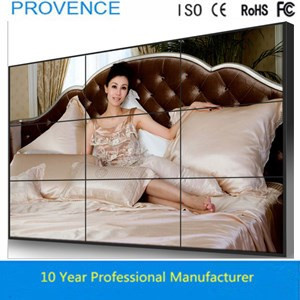

46" LCD Video Display (PM460UT-3)
1. Adopt Samsung exclusive DID Ultra Narrow Bezel Panel.
2. Certificate: CE, FCC, RoHS
3. Customized Brand: Ours, OEM, ODM
4. Resolution: 1366(H)X768(W)
5. Brightness (CD/m2): 450CD/m2
6. Contrast Ratio: 4500: 1
7. Viewing angles: H: 89o/89o V: 89o/89o
8. Integrate multiple HD Video signal source interface type: DVI, HDMI, VGA, YPbPr, AV.
9. Stable performance, and the thermal management system allows the monitor to operate 24/7.
10. Low Power, Green Material. Built-in digital signal de-noising unit.
11. Operating Humidity: 10~90%, normal operations in poor conditions.
12. Reasonably complete Accessories for your option, as well all kinds of Installation Method (base support, wall mounts, stand support etc. )
| PRODUCT DESCRIPTION |
| Panel |
| Diagonal Size | 46" |
| Aspect Ratio | 16: 9 |
| Pixel Pitch | 0.7455(H) x 0.7455(W) |
| Response Time | < 8ms |
| Resolution | 1366x768 |
| Contrast Ratio | 4500: 1 |
| Brightness (cd/m2) | 450d/m2 |
| Active display area | 1018.353 (H) x 572.54(V) |
| Display Color (Max) | 16.7M |
| Viewing Angle | H: 89o/89o V: 89o/89o |
| Video Input |
|
| VGA | X1 |
| DVI | X2 |
| Component YPbPr(BNC) | X1 |
| Composite video( BNC) | X3 |
| RJ45(use for RS232 IN) | X1 |
| RJ45(use for debug) | X1 |
| Output Connection |
|
| Composite video(BNC) | X1 |
| RJ45(use for RS232 OUT) | X2 |
| Power |
| Power Supply | AC Input 100~240V(+/-10%)/50-60Hz |
| Power Consumpiton | ≤ 210W |
| Stand-by(MAX) | ≤ 2W |
| Operation/Sotrage |
| Operating Temperature | 0 0 C~50 0 C |
| Operating Humidity | 10%~90% |
| Storage Temperature | -20 0 C~60 0 C |
| Operating Humidity | 0%~90% |
| Safety and Ergonomics |
| Regulations | CE, FCC, ROSH |
| Technical Specification |
| OSD language | Simplify Chinese, English |
| Horizontal Frequency | 20 ~ 82KHz(analog and digital) |
| Vertical Frequency | 55~75Hz |
| Optimum Resolution | 1366x768at 60HZ |
| Native Resolution | 1366x768at 60HZ |
| Supported Resolutions | 1366x768; 1280x1024; 1280x768; 1024x768; 832x624; 800x600; 720x400; 600x480; |
| Video Modes(no tuner) | 480i; 480p; 576i; 576p; 720p(50 & 60HZ); 1080i(50 & 60HZ); 1080p(50 & 60HZ); |
| Colour Versions | Black |
| Package Contents |
| Manual | x1 |
| Warranty Card | x1 |
| Application CD | x1 |
| Power Cord | x1 |
| Lan cable(1.8m) | x1 |
| RJ45 to RS232 connector | x1 |
| Batteries | x1 |
| Mechanical Spec |
| Weight(Set/package) | 20kg/25kg |
| Dimension(W/O stand) | 1025.7*579.8*105mm |
| Packing Dimension | 1160x710x240mm |
| Warranty |
| 1 year for backlight, 3 years for other parts |
| Terms And Conditions |
| Payment Term | T/T or Sight L/C |
| Shipment Term | FOB, CIF, CNF |
| Port of Loading: | Shenzhen |
| Brand | Follow Client' s Command (Ours, OEM, ODM) |
| MOQ | 20' ft |
| Valid Date | 7 days |
| Delivery Time | Within 25 Days After payment |
| About Samples |
| Extra 15% Handling Fee Is Charged For Sample. It will Be Returned When An Purchase Order Is Placed |
| Optional Accessories |
| Wall Mount |
| RS232 to USB connector |
| BNC to RCA Adaptor Jack |
| BNC to BNC cable(1.5m) |
| DVI cable(1.5m) |
| HDMI cable(1.5m) |
| VGA to BNC cable(1.5m) |
PROVENCE (Shenzhen) Technology. Co., Ltd was established in Shenzhen China in Juanary 2011 mainly engaged in intelligent LCD/LED display products. Factory covered over 3000 square meter and there are about 100 employees. Products anging from CCTV monitor, Video wall, Touch all in one, Digital signage to related controller and accessaries etc...
Combined with R&D, marketing, manufacturing & construction as a whole, PROVENCE is not only a terminal display products producer but also a Turkey-solution provider. We have obtained approval of CE, FCC, RoHS ISO9001 Certificates for all products which are exported to America, Canada, Europe, Asian, Middle East and sell well in markets all over the world. Professional OEM/ODM service is also provided.
PROVENCE have been done over 1000 video wall projects for the past few years and had gained reputation for its reliable products and after-sale services. Based on the science and technology, We are aimed to be the No. 1 in intelligent LCD/LED display industry with the principle of "Integrity, Professional & Inovation".
