| Prod Model: |
PM460DSn |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE, FCC, RoHS |
| Size: |
46inch |
| Material: |
Metal |
| Color: |
Black |
| Aspect Ratio: |
16:9 |
| Pixel Pitch: |
0.53(H) X 0.53(W) |
| Response Time: |
8ms |
| Resolution: |
1920X1080 |
| Contrast Ratio: |
3000:1 |
| Brightness (CD/M2): |
350d/M2 |
| Touch Screen Type: |
Infrared |
| Screen Size: |
20-30 Inches |
| Screen Technology: |
LCD |
| OS: |
Android |
| Type: |
Network Version AD Player |
| Application: |
Indoor/Semi Outdoor Ad Player |
| Installation: |
Wall-Mounted |
| Customized: |
Customized |

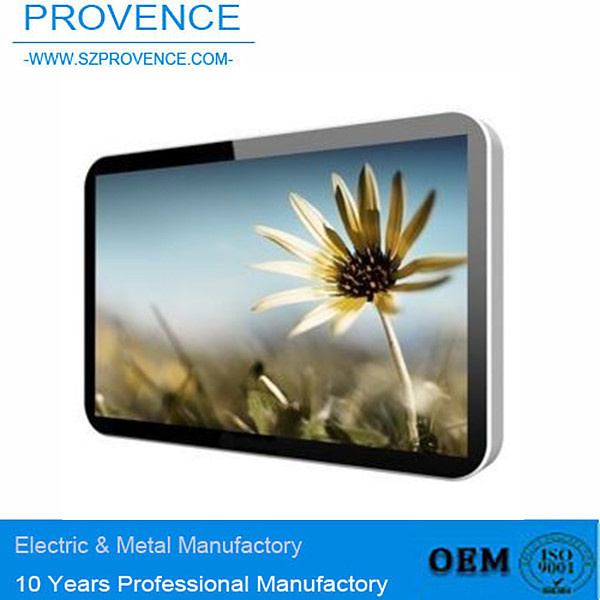

Product Description
1. Size: 8-82 inch, 1.3-3 years warranty.
2. Digital signage network solution.
4. CKD/SKD/Open frame/touch screeb is available.
5. Certificate: CE, FCC, RoHS
6. Customization: Ours, OEM, ODM
7. Commercial/industrial application
Features/Advantages:
A. Metal shell - strong antimagnetic and anti-interference performance.
B. High Shock resistance level.
C. High reliability, good stability, nice thermostability, high resolution and operating 24/7/365.
D. Very eco-friendly low power consumption
E. VGA, DVI, HDMI, YPbPr(NBC) etc. Video sources, TV & Speaker functions will be offered on your request.
F. Key control, IR remote control, Remote control Operation Modes.
|
LCD panel |
|
|
Diagonal Size |
46" |
|
Aspect Ratio |
16:09 |
|
Pixel Pitch |
0.53(H) x 0.53(W) |
|
Response Time |
8ms |
|
Resolution |
1920X1080 |
|
Contrast Ratio |
3000:1 |
|
Brightness (cd/m2) |
350d/m2 |
|
Active display area |
1018(H)X573(V) |
|
Display Color (Max) |
16.7M |
|
Viewing Angle(U/D,L/R) |
178°(H)/ 178°(V) |
|
System software |
|
|
System software |
Android 4.2.2 |
|
Network mode |
|
|
Lan |
10M/100M |
|
WIFI |
802.11g/n |
|
3G |
Need 3G module |
|
Support format |
|
|
Video format |
MPEG1\MPEG2\MPEG4\H.264\WMV\AVS, VC-1,RV, VP6/VP8, Sorenson Spark, MVC |
|
Audio format |
MP3 |
|
Image format |
JPG\JPEG\BMP\PNG\GIF |
|
Speaker |
|
|
Speaker |
2*5W |
|
Parameters |
|
|
CPU |
Dual Core ARM Cortex A9 1.5GHz |
|
GPU |
4*Core ARM Mali-400 MP |
|
Memory |
DDR3 1Gbyte |
|
SD card |
Max 32G |
|
USB interface |
USB2.0 * 1 |
|
Internal Storage |
FLASH 4G |
|
Audio output |
Stero CLASS-D, Support:8Ω 2x10W |
|
3G module interface |
PCIE*1; USB*1 |
|
WIFI |
WIFI(150Mbps)*1 |
|
Lan |
10/100M |
|
Video output |
VGA×1\HDMI×1 |
|
Audio output |
3.5mm Phone Jack |
|
Extensible interface |
Serial port * 1; SPI *1;Camera * 1;USB(for touch) * 1 |
|
Main function |
|
PROVENCE (Shenzhen) Technology. Co., Ltd was established in Shenzhen China in Juanary 2011 mainly engaged in intelligent LCD/LED display products. Factory covered over 3000 square meter and there are about 100 employees. Products anging from CCTV monitor, Video wall, Touch all in one, Digital signage to related controller and accessaries etc...
Combined with R&D, marketing, manufacturing & construction as a whole, PROVENCE is not only a terminal display products producer but also a Turkey-solution provider. We have obtained approval of CE, FCC, RoHS ISO9001 Certificates for all products which are exported to America, Canada, Europe, Asian, Middle East and sell well in markets all over the world. Professional OEM/ODM service is also provided.
PROVENCE have been done over 1000 video wall projects for the past few years and had gained reputation for its reliable products and after-sale services. Based on the science and technology, We are aimed to be the No. 1 in intelligent LCD/LED display industry with the principle of "Integrity, Professional & Inovation".
