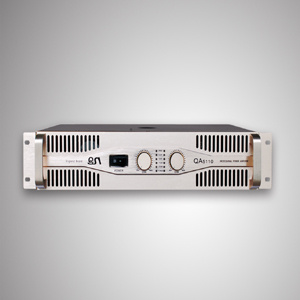

450W 2channes Professional Power Amplifier (QA5145)
| Price: |
US $ 100-200/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,D/P,Western Union,Paypal,Money Gram |
| Prod Model: |
(QA5145 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| RMS: |
450W |
| Brand: |
Qsn |
| Colour: |
Silvery |
| Type: |
Professional Amplifier |
| Function: |
Post Amplifier |
| Usage: |
Outdoor, Commercial, Stage |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Used For: |
Professional |
| Conductive Mode: |
AB |
| Tube Type: |
Transistor Amplifier |
| Output Number: |
2 |
| Sound Channel: |
2.0 |
Product Description
| Model | QA5145 | QA5106 | QA5108 | QA5110 |
| 8ohms Stereo | 450W | 600WX2 | 800W | 1000WX2 |
| 4ohms Stereo | 800W | 950WX2 | 1350W | 1650WX2 |
| 4ohms Bridged | 1600W | 2200W | 2800W | 3400W |
| Low cut | 30Hz Low cut |
Frequency
response | 20Hz~20KHz(+-0.3dB) |
| sensitivity | 0.775V/1.0V/1.44V |
| work mode | Stereo/parral/bridged
|
| fans working way | intelligent speed adjustment
connector(each channel) |
| input connector | XLR(6.3&) |
| output connector | NL4 speakon connectors |
| balance input | 20K |
| unbalance input | 10K |
| mixed voice reduction | ≥60dB |
| RMS 8ohms | ≥103dB |
| damp factor | ≥650 |
| THD | ≤0.08% |
Position
response | ±10° |
| speed rate | ≥25V/μs |
| Output circuit Mode | Class AB | Class H+ |
| Net Weight | 19KG | 21KG | 25KG | 27KG |
| Product size | 484W × 380D × 88H | 484W × 460D × 88H |
| package size(mm) | 590W × 520D×145H | 590W × 600D×145H |
| Protect | 1.DC protection 2. short circuit protection 3.overheat protection 4.over current protection 5.Input overload protection 6.output overload protection 7.Soft start |
All the semiconductors are the famous brands - American ON Semiconductor, or Toshiba;
Using a special audio electrolytic capacitors, it shows high-grade and perfect sounds;
It Adopts SMT technology, so it high integration and more stable;
Intelligent CVT fan cooling thermal systems, it will so quiet when the machine is small power or cooling the machine ;
specialized perfect dynamic limiter.It will not loss the sound quality and protect your sound system effectively ;
It has perfect protection system, the machine can be stable and not unexpected even if under the extremely conditions.
Designed for the professional market products, all modular, compact design, it has a precise
and comprehensive protection Care system, beautiful and dynamic sound, stable and reliable performance, compact and elegant appearance.
Series for high-end professional market, the series for large Diba, nightclubs, stadiums, theaters and so on.
