| Prod Model: |
PM420NX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diagonal Size: |
42" |
| Aspect Ratio: |
16:9 |
| Pixel Pitch: |
0.4845(H) X 0.4845(W) |
| Response Time: |
<5ms |
| Resolution: |
1920X1080 |
| Contrast Ratio: |
1300:1 |
| Brightness: |
450CD/M2 |
| Activve Display Area: |
930.24 (H) X 523.26(V) |
| Display Color: |
16.7m |
| Viewing Angle: |
H:178 Degree V: 178 Degree |
| Type: |
LCD Monitor |
| Material: |
LCD |
| Color: |
Color |
| Screen: |
General Screen |
| Size: |
≥42" |
| Sensor: |
CMOS |
| Scanning: |
Line by Line Scan |
| Horizontal Resolution: |
1920*1080 |
Product Description
[Description]

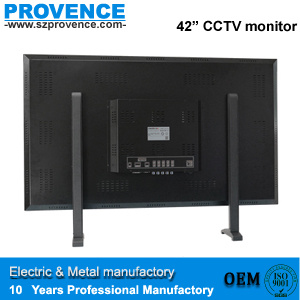

(PM420NX) 42" Inch LCD LED CCTV Display monitor is specialized for CCTV system, Monitoring.CCTV LCD monitor is low power consumption and stability performance, so it is widely popular in the market.It is suitable for the traffic regulation, mine, electronics, bank, government and so on.Our company provide ODM, OEM design, development, production services.Including 8 ~ 84 inches model.And accept the customers to sample order.
[Function]
Anti-static, magnetic field, strong electric field
Intelligent cooling system
Low energy consumption backlight system
Brightness adjustment
Touch conotrol
Toughened glass protection
POP/PIP
Image automatically adjust
Manually adjust the image position
Color automatically adjust
Color manual adjustment
white balance adjustment
ADC adjustment
3D decoding
3D comb filter
3D noise reduction
Double to interlaced 3D
3D light (Y/C) separation
3D color management
3D edge serrated processing
3D images of static/dynamic compensation
Screen freezes function
|
LCD display LED display Product Description |
|
LCD panel |
|
|
Diagonal Size |
42" |
|
Aspect Ratio |
16:9 |
|
Pixel Pitch |
0.4845(H) x 0.4845(W) |
|
Response Time |
5ms |
|
Resolution |
1920x1080 |
|
Contrast Ratio |
1300:1 |
|
Brightness (cd/m2) |
450d/m2 |
|
Active display area |
930.24 (H) x 523.26(V) |
|
Display Color (Max) |
16.7M |
|
Viewing Angle(U/D,L/R) |
H:178o V:178o |
|
I/O |
|
|
VGA |
X1 |
|
HDMI |
X1 |
|
YPbPr(BNC*3) |
X1 |
|
CVBS input |
X2 |
|
CVBS output |
X1 |
|
Features and Benefits |
|
|
Anti-static, magnetic field, strong electric field |
|
Intelligent cooling system |
|
|
Low energy consumption backlight system |
|
Brightness adjustment |
|
|
Touch conotrol |
|
|
Toughened glass protection |
|
POP/PIP |
|
|
Image automatically adjust |
|
|
Manually adjust the image position |
|
Color automatically adjust |
|
|
Color manual adjustment |
|
|
white balance adjustment |
|
|
ADC adjustment |
|
|
3D decoding |
|
|
3D comb filter |
|
|
3D noise reduction |
|
|
Double to interlaced 3D |
|
|
3D light (Y/C) separation |
|
|
3D color management |
|
|
3D edge serrated processing |
|
3D images of static/dynamic compensation |
|
Screen freezes function |
|
|
Technical Specification |
|
|
OSD language |
Simplify Chinese, English |
|
Operation |
Keyboard, Remote control |
|
Material |
Metal |
|
Color |
Black |
|
Video format |
PAL\NTSC |
|
Horizontal Frequency |
20 ~ 82KHz(Anolog&Digital) |
|
Vertical Frequency |
55~75Hz |
|
Optimum Resolution |
1920x1080 at 60HZ |
|
Native Resolution |
1920x1080 at 60HZ |
|
Supported Resolutions |
1920x1080;1680x1050;1600x1200; |
|
1440x1050;1360x768; 1280x1024; |
|
1280x768; 1024x768;832x624; |
|
800x600;720x400; 600x480; |
|
Video Modes(no tuner) |
480i;480p;576i;576p; |
|
720p(50 & 60HZ); |
|
1080i(50 & 60HZ); |
|
1080p(50 & 60HZ); |
|
POWER |
|
|
Power supply: |
AC 100~240V(+/-10%)/50-60Hz |
|
Power consumpiton: |
≤200W |
|
Stand-by: |
≤1W |
|
Operation/Sotrage |
|
|
Operating Temperature |
0 0 C~40 0 C |
|
Operating Humidity |
10%~90% |
|
Storage Temperature |
-20 0 C~60 0 C |
|
Storage Humidity |
0%~90% |
|
Safety and Ergonomics |
|
|
Quality standards: |
ISO9001,CCC,FCC,CE,ROHS |
|
Environmental standards: |
All components,accessories and packing are compliant with international standards. |
|
Optional accessories |
|
|
BNC to RCA connector |
DVI cable |
|
BNC cable |
VGA cable |
|
HDMI cable |
VGA to BNC cable |
|
Accessories |
|
|
Wall mount(or stand set) * 1 |
Remote control * 1 |
|
User manual *1 |
Power cord * 1 |
|
Mechanical Spec |
|
|
Hole for wall mount: |
/ |
|
NW/GW: |
21.5kg/25kg |
|
Dimension(W/O stand): |
996×595×118mm |
|
Packing Dimension (1 pcs/ctn): |
1180x775x250mm |
|
Warranty |
|
|
13 months (LCD monitor and components) |
|
