| Prod Model: |
PM420AT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LAN: |
10m / 100m / 1000m |
| WLAN/WiFi: |
Available |
| Memory Capacity: |
≥4GB |
| Display Type: |
LCD |
| HDD Capacity: |
500GB |
| GPU: |
Intel |
| CPU: |
Intel Core I3 (I5, I7 for Option) |
| Display Screen Size: |
42" |
Product Description

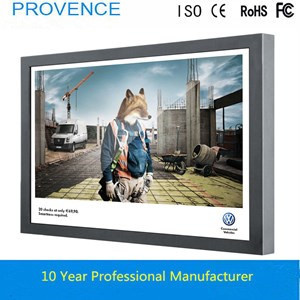

Idea All In One computer for digital signage, conference room, whiteboard etc.
Features and Benefits.
1. PC configuration: CPU: I3 (I5, I7 is optional), RAM: 4G, HDD: 500G, Up to 1000M LAN, WLAN/WiFi is Optional.
2. Infrared 2 points touch screen. 4 points to 32 points multi touch is available
3. Full HD LCD monitor with 178o viewing angle.
4. Compatible with Win 7 / Win 8 OS.
5. Metal case: Anti-static, antimagnetic, anti-interference, damage-proof
Performance. Compatible with VESA standard.
6. Designed and engineered for 24/7 operation. Long lifetime: >50, 000 hours.
7. Professional driving IC (adopting 3D comb filter and digital noise reduction technologies), ensuring high quality and stable colour performance.
8. Energy saving, very eco-friendly low power.
| Product Description |
| Panel (TFT LCD panel) |
| Diagonal Size | 42" |
| Aspect Ratio | 16: 9 |
| Pixel Pitch | 0.4845(H) x 0.4845(W) |
| Response Time | 5ms |
| Resolution | 1920x1080 |
| Contrast Ratio | 1300: 1 |
| Brightness (cd/m2) | 450d/m2 |
| Active display area | 930.24 (H) x 523.26(V) |
| Display Color (Max) | 16.7M |
| Viewing Angle(U/D, L/R) | H: 178o V: 178o |
| Lifetime | More than 50, 000 hours |
| PC system I/O |
| USB 2.0 | X4 |
| USB 3.0 | Optional |
| RJ45 (LAN port) | X1 |
| Audio out | X1 |
| VGA out | X1 |
| HDMI out | X1 |
| Display system Inputs |
| VGA | X1 |
| HDMI | X1 |
| Audio |
| Stereo speaker | 2x5W |
| PC configuration |
| CPU | Intel I3 (i5, i7 is Optonal) |
| Chip set | Intel |
| Video chipset | Integrated graphics |
| RAM | 4G |
| HDD | 500G |
| Lan | 10M/100M/1000M |
| Wlan/Wifi | Optional |
| Touch parameters |
| Inductive technology | Infrared Single/Double touch |
| Resolution | 4096X4096 |
| Inductive objects | Finger, pen, any other non-transparent objects |
| Inductive size | Diameter≥ 5mm, recommended size≥ 7mm |
| Response time | Dual touch: first click: 8ms, continuous: 8ms |
| Single touch: first click: 8ms, cintinuous: 3ms |
| Cursor speed | Single: highest 300 dot/s, dual touch: 125 dots/s |
| Glass for protection | 3mm optical glass and tempered glass |
| Operating life | ≥ 60, 000, 000 times to touch |
| Positioning calibration | Support HID device, plug and play, no need driver and calibration, match-management program for positioning calibration. |
|
|
| Light anti-decay | light anti-decay circuit, maitains stable performance for a long-time working |
|
| Anti-light interference | Can work in the condition of direct sunlight |
| Technical Specification |
| OSD language | Simplify Chinese, English |
| Horizontal Frequency | 20 ~ 82KHz(analog and digital) |
| Vertical Frequency | 55~75Hz |
| Optimum Resolution | 1920x1080 at 60HZ |
| Native Resolution | 1920x1080 at 60HZ |
| Supported Resolutions | Up to 1920x1080 |
| Video Modes(no tuner) | Up to 1080p at 50& 60HZ |
| POWER |
| Power supply | AC Input 100~240V(+/-10%)/50-60Hz |
| Power consumpiton | ≤ 220W |
| Stand-by | ≤ 2W |
| Operation/Sotrage |
| Operating Temperature | 0 0 C~40 0 C |
| Operating Humidity | 10%~90% |
| Storage Temperature | -20 0 C~60 0 C |
| Storage Humidity | 0%~90% |
| Accessories |
| Manual*1, Warranty Card*1, Remote control, Power Cord*1 |
