| Prod Model: |
PM400UX-6B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE, FCC, RoHS |
| Type: |
IPS |
| Application: |
Surveillance, Advertising, Indoor, Outdoor |
| Aspect Ratio: |
16:9 |
| Widescreen: |
Widescreen |
| Optimum Resolution: |
1920x1080 |
| Response Time: |
8ms |
| Feature: |
Professional Video Wall Display |
| Screen Size: |
40" |
| Interface Type: |
VGA, DVI, HDMI, YPbPr, RS232 |
Product Description

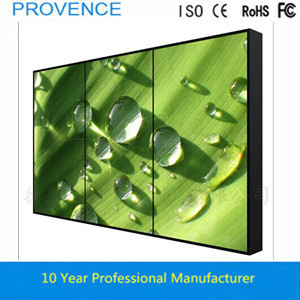

40" Indoor LCD Video Wall Display
1. Adopt Samsung exclusive DID Narrow Bezel Panel.
2. Certificate: CE, FCC, RoHS
3. Customized Brand: Ours, OEM, ODM
4. Resolution: 1920(H)X1080(V)
5. Brightness (CD/m2): 500d/m2
6. Contrast Ratio: 3000: 1
7. Viewing angles: 178deg(H)X178deg(V)
8. Integrate multiple HD Video signal source interface type: DVI, HDMI, VGA, AV
9. Stable performance, and the thermal management system allows the monitor to operate 24/7.
10. Low Power, Green Material. Built-in digital signal de-noising unit.
11. Operating Humidity: 10~90%, normal operations in poor conditions.
12. Reasonably complete Accessories for your option, as well all kinds of Installation Method (base support, wall mounts, stand support etc. )
| PRODUCT DESCRIPTION |
| Panle |
| Diagonal Size | 40" |
| Aspect Ratio | 16: 9 |
| Pixel Pitch | 0.46125(H) x 0.46125(W) |
| Response Time | < 8ms |
| Resolution | 1920x1080 |
| Contrast Ratio | 3000: 1 |
| Brightness (cd/m2) | 500d/m2 |
| Active display area | 885.6 (H) x 498.15(V) |
| Display Color (Max) | 16.7M |
| Viewing Angle | H: 89o/89o V: 89o/89o |
| Video input |
| VGA | X1 |
| DVI | X1 |
| HDMI | X1 |
| Composite video( BNC) | X1 |
| RJ45(use for RS232 IN) | X1 |
| RJ45(use for debug) | X1 |
| Output Connection |
| Composite video(BNC) | X1 |
| DVI | X1 |
| RJ45(use for RS232 OUT) | X2 |
| Power |
| Power Supply | AC Input 100~240V(+/-10%)/50-60Hz |
| Power Consumpiton | ≤ 210W |
| Stand-by(MAX) | ≤ 2W |
| Operation/Sotrage |
| Operating Temperature | 0 0 C~50 0 C |
| Operating Humidity | 10%~90% |
| Storage Temperature | -20 0 C~60 0 C |
| Operating Humidity | 0%~90% |
| Safety and Ergonomics |
| Regulations | CE, FCC, ROSH |
| Technical Specification |
| OSD language | Simplify Chinese, English |
| Horizontal Frequency | 20 ~ 82KHz(analog and digital) |
| Vertical Frequency | 55~75Hz |
| Optimum Resolution | 1920x1080 at 60HZ |
| Native Resolution | 1920x1080 at 60HZ |
| Supported Resolutions | 1920x1080; 1680x1050; 1600x1200; 1440x1050; 1360x768; 1280x1024;
1280x768; 1024x768; 832x624; 800x600; 720x400; 600x480; |
| Video Modes(no tuner) | 480i; 480p; 576i; 576p; 720p(50 and 60HZ); 1080i(50 and 60HZ); 1080p(50 and 60HZ) |
| Remote Control | RJ45(use for RS232), Remote Control (IR) |
| Colour Versions | Black |
| Package Contents |
| Manual | x1 |
| Warranty Card | x1 |
| Application CD | x1 |
| Power Cord | x1 |
| Lan cable(1.8m) | x1 |
| RJ45 to RS232 connector | x1 |
| Batteries | x1 |
| Mechanical Spec |
| Weight(Set/package) | 23kg/30kg |
| Dimension(W/O stand) | 911.7*524.2*129mm |
| Packing Dimension | 1052x363x665mm |
| Warranty |
| 1 year for backlight, 3 years for other parts |
| Terms And Conditions |
| Payment Term | Sight L/C or T/T |
| Shipment Term | FOB, CIF, CNF |
| Port of Loading: | Shenzhen |
| Brand | Follow Client' s Command (Ours, OEM, ODM) |
| Valid Date | 7 days |
| Delivery Time | Within 25 Days After payment |
| About Samples |
| Extra 15% Handling Fee Is Charged For Sample. It will Be Returned When An Purchase Order Is Placed |
| Optional Accessories |
| Wall Mount |
| RS232 to USB connector |
| BNC to RCA Adaptor Jack |
| BNC to BNC cable(1.5m) |
| DVI cable(1.5m) |
| HDMI cable(1.5m) |
| VGA to BNC cable(1.5m) |
