| Prod Model: |
SM410402K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 0.4 Inches: |
Single Digit |
| Display Type: |
Segment LED Display |
| Tube Chip Color: |
Single Color |
| Certification: |
RoHS |
| Display Function: |
Numbers and Some Alphabets |
Product Description

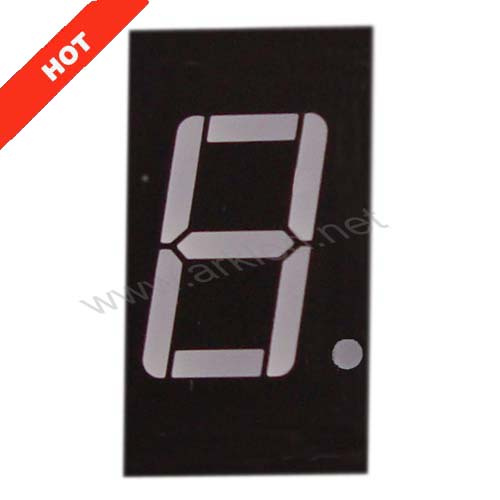

This 0.4 Inch LED 7 Segment Display is single digit one, which emitted color is single color.
This LED Numeric Display has RoHS and REACH certification.
1. Digit height: 0.40 inch
2. Dimensions: 9.80 x 18.70 x 5.10 mm
3. Digit quantity: One piece
4. Available Emitting color: High bright red/yellow green/yellow/amber/high bright blue/high bright white/pure green
5. Surface color: Black/gray (white epoxy)
6. Epoxy colors: Red, milky, blue, green and more
7. Polarity: Common anode/common cathode
8. Operating temperature range: -20+60 degree Celsius
|
CA PN |
CC PN |
Emitted-color |
|
SM410402K |
SM420402K |
Ultra Bright Red |
|
SM2104025 |
SM2204025 |
Yellow-green |
|
SM510402Y |
SM520402Y |
Yellow(595nm) |
|
SM810402G4 |
SM820402G4 |
Pure green(525nm) |
|
SM610402B |
SM620402B |
Blue |
|
SM710402W |
SM720402W |
White |
