| Prod Model: |
SM3001N-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Digits: |
Single Digit |
| Digit Height: |
3 Inches |
| Emitting Color: |
Red, Green, Yellow, Orange, Blue or White. |
| Common Pins: |
Pin 1 and 8. |
| PCB: |
Customization Available |
| Tube Chip Color: |
Single Color |
| Scanning Mode: |
Static Scan |
| Display Type: |
Segment LED Display |
| Application: |
Shopping Guide |
| Certification: |
RoHS |
| Display Function: |
Numbers and Some Alphabets |
Product Description

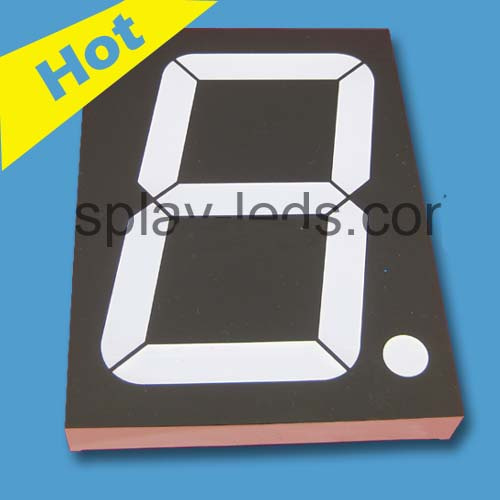

SM433001N is a red single digit LED display with 3 inch digit height.
Digit height: 3.00 inch
Dimensions: 70.00 x 110.00 x 12.00 mm
Digit quantity: One piece
Available Emitting color: High bright red/yellow green/yellow/amber/high bright blue/high bright white/pure green
Surface color: Black/gray (white epoxy)
Epoxy colors: Red, milky, blue, green and more
Polarity: Common anode/common cathode
Operating temperature range: -20+60 degree Celsius
| CA PN | CC PN | Emitted-color |
| SM433001N-2 | SM443001N-2 | Ultra Bright Red |
| SM2330015-2 | SM2430015-2 | Yellow-green |
| SM533001Y-2 | SM533001Y-2 | Yellow(595nm) |
| SM833001G4-2 | SM833001G-2 | Pure green(525nm) |
| SM633001B-2 | SM633001B-2 | Blue |
| SM733001W-2 | SM733001W-2 | White |
