| Prod Model: |

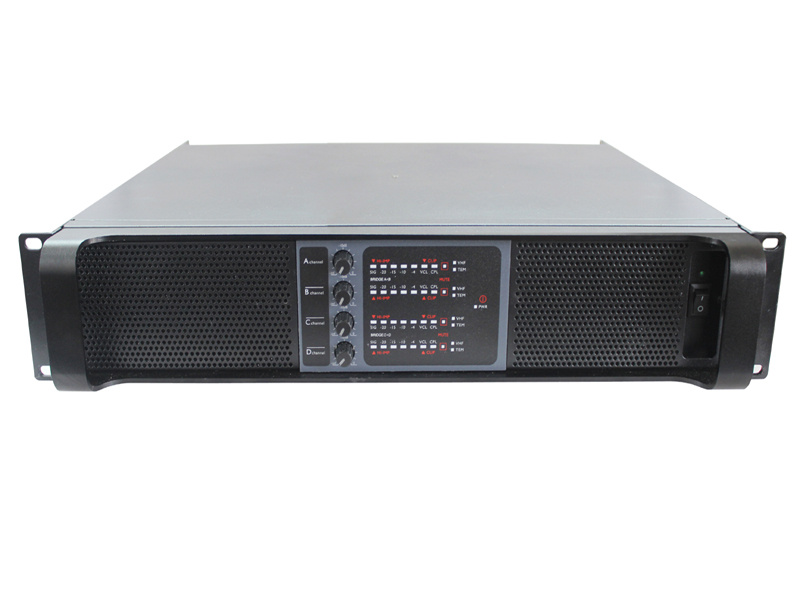

FP8000Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Qsn |
| RMS: |
800W |
| Protection: |
Overheat Protection |
| Type: |
Professional Amplifier |
| Function: |
Post Amplifier |
| Usage: |
Outdoor,Commercial,Meeting |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Used For: |
Professional |
| Conductive Mode: |
AB |
| Tube Type: |
Transistor Amplifier |
| Output Number: |
2 |
| Sound Channel: |
2.0 |
Product Description
About Us:
Guangzhou Yunqiang Electronics Limited is a developing amplifier,
speaker, stage lighting factory in Guangzhou, China. Based in the interenational and
manufactures innovative, . High quality Amplifier, Speaker, Stage Light products for the professional Club
Play and stage show Entertainment&leisure
Ourpurpose:
Quality first,Credit first Customer first, First-rate service.
We insist in "honest business and high quality service"
as our business ideal, with a powerful R&D team and a group of skilled workers in the factory
as the strong backup and support, we always work on this ideal to serve all customers with good quality and reasonable price.
| FP Series | FP7000 | FP9000 | FP14000 | FP8000Q | FP10000Q |
| 8ΩStereo Power(RMS) | 1500WX2 | 1800WX2 | 2350WX2 | 800WX4 | 1350WX4 |
| 4ΩStereo Power(RMS) | 2800WX2 | 3000WX2 | 4400WX2 | 1400WX4 | 2700WX4 |
| 2ΩStereo Power(RMS) | 3500WX2 | 4500WX2 | 7000WX2 | 1600WX4 | 2500WX4 |
| 8ΩBridged Power(RMS) | 5600W | 6000W | 8800W | 2800WX2 | 4200WX2 |
| 4ΩBridged Power(RMS) | 7000W | 9000W | 14000W | 3200WX2 | 5000WX2 |
| Frequency Response(+o/-0.3dB,1W/8Ω) | 20 Hz - 34 kHz |
| THD 20 Hz - 20 kHz for 1 W | <0.1% |
| Signal-to-Noise Ratio | >112 dBA |
| Channel separation (Crosstalk) at 1 kHz | >70 dB |
| Input Connectors (per channel) | 3-pin XLR, electronically balanced |
| Output Connectors (per channel) | Binding Posts 2-pole |
| Class | TD |
| TourClass Protection | ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input |
| Operating voltage, 230 V / 115 V nominal | 130-265 V / 65-135 V selectable |
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
| Input impedance | 20 kOhm |
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB |
| Dimensions (W×H×D) | 483×88×396mm |
| Packing dimension | 580×180×560mm |
| Net weight(kg) | 12 |
| Gross weight(kg) | 15 |
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.
Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
