| Prod Model: |
FP6000Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Type: |
Switch Modul Power Amplifier |
| Output Power: |
4 X 700W |
| Place Of Orignal: |
Guangzhou China |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Amplifier Combined |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Usage: |
Professional Performance |
Product Description
Product Description

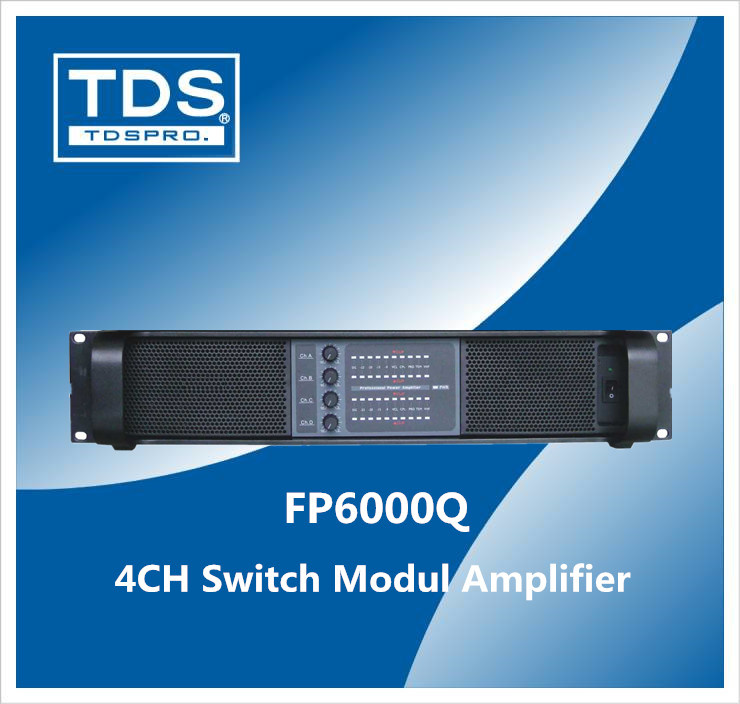

4ch x 700watts switching power amplifier.
Lightweight power amplifier.
| Model | FP6000Q |
| 8ohm Stereo | 4 x 700W |
| 4ohm Stereo | 4 x 1300W |
| 2ohm Stereo | 2 x 1550W |
| 8ohm Bridge | 2 x 2600W |
| 4ohm Bridge | 2 x 3100W |
| Frequency Response | 10Hz-30Khz+0/-3dB |
| THD | < 0.1% |
| S/N (dB) | 110dB |
| Channel separation(crosstalk) at 1KHz | > 70dB |
| Common Mode Rejection (CMR) | >54 dB, 20Hz to 20 kHZ |
| Output Impedance @ 100 Hz | 32m ohm |
| Input Impedance | 20k ohm balance /
10k ohm imbalance |
| Power | 200-240V / 50-60Hz |
| Min/Max Power | 180-260V / 50-60Hz |
| Input connectors (per ch.) | 3-pin XLR, electronically balanced |
| Output connectors (per ch.) | Neutrik Speakon |
| Intelligent fans(on/off) | Yes, depending on presence of output |
| Cooling | Two fans, front-to-rear airflow, temperature controlled speed. |
| Dimensions (HxVxD) | 483 x 88 x 377 mm |
| Net weight | 15 kg |
Guangzhou TDS PRO Audio Factory specialize in developing & manufacture PRO audio products.
From the establishment of our factory we always focus our attention on developing PRO audio products.We trust a good product must need very careful process in developing and manufacture.Thanks to our senior engineers and the sophisticated staff, we can offer the products which customers need.At the same time, we use the technical way to guarantee the products quality.We use CAD for cabinet design work, CNC machine to make the speaker cabinet, DASS & LMS for testing of loudspeaker, crossover checking and phase checking equipment etc.All those work help us to keep the same product quality.
In all business, product is important.But the related service is more important.In order to offer ideal service, we have professional staff for products checking, transportation arranging and also we have engineers who can go abroad to do technical support and after sales service.Our philosophy is customer to be first.And we also trust better service will help both customer and us.Through good service we can keep long and steady relation with our customers.
Meet right sound, Meet right OEM partner, Meet right us!
