| Prod Model: |
KIT-2104B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1u Case with Max 1X4t HDD |
| Video Quality: |
720p Full Realtime Recording |
| Remote Access: |
by Ie or Cms on PC and Via Xmeye APP |
| Working Modes: |
Ahd(720p), Hybrid and Analog(960h) |
| Shipment Over 50 Kits: |
Free Shipping by Sea for Port to Port Service |
| Type: |
Standalone |
| Video Compression: |
H.264 |
| Compressed Format: |
H.264 |
| Operating System: |
Linux |
| Application: |
Commercial DVR |
| Interface Type: |
BNC/VGA/HDIM |
| Video Input/Output: |
4 Channel |
| Remote Control: |
With Remote Control |
| Audio Input/Output: |
1 Channel |
Product Description

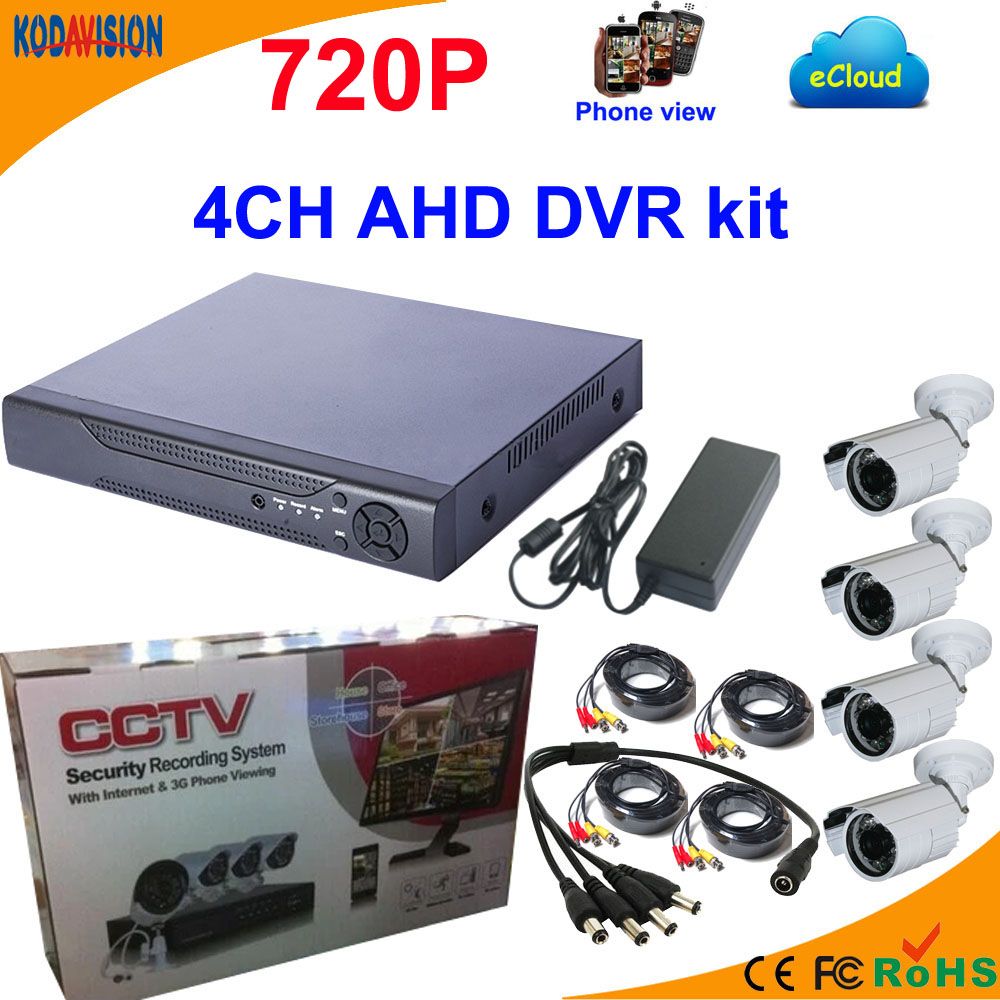

4 Channel 720P free cms software cctv system
Features
Full real time coding(PAL:25fps/ch;NTSC:30fps/ch)
VGA,HDMI 1080P high definition output

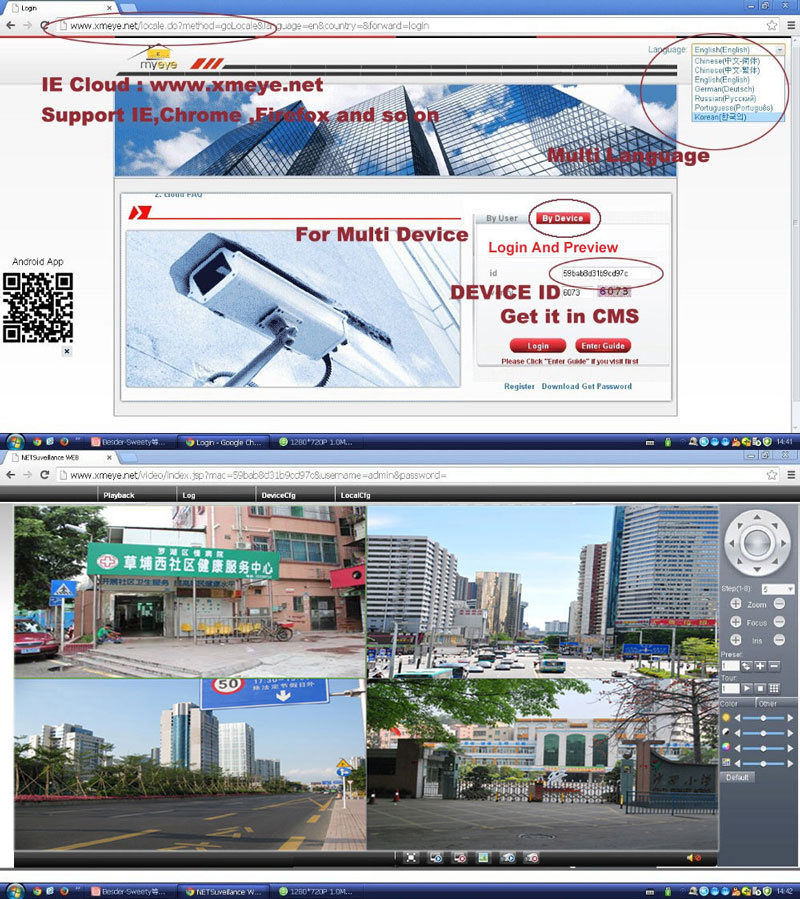

Cloud service for network access and sending alarm to mobile phone

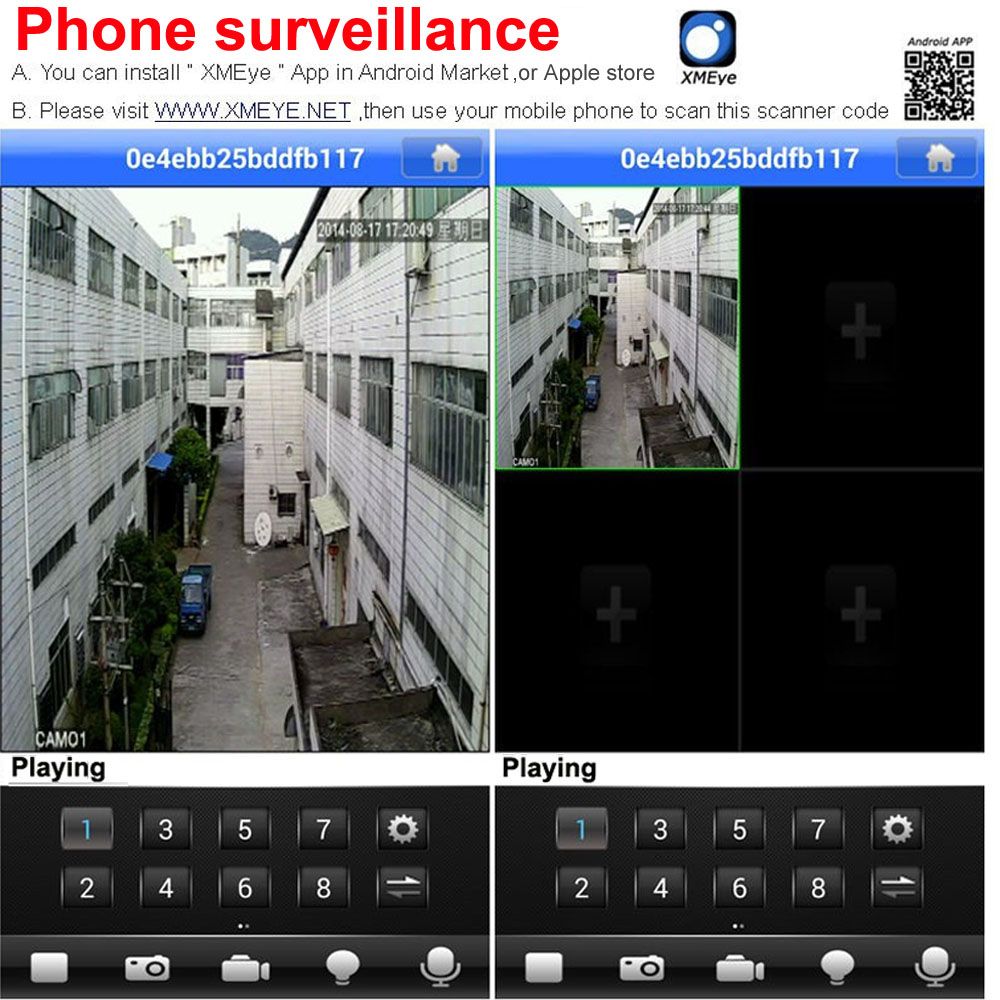

Phone surveillance(iPhone, Android Windows Mobile, BlackBerry, Symbian)
Multi browser available(IE, Chrome, Firefox, Safari);

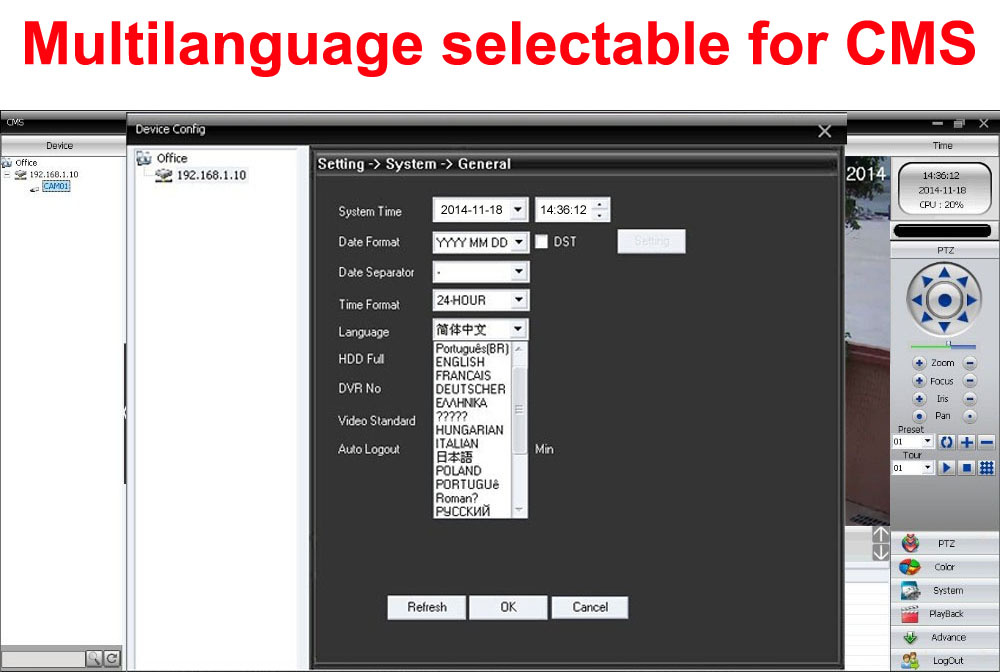

Multi language(English, Finnish, French, German, Greece, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese, Turkish etc)
Perfect circuit protection, unique triplex watchdog function
With Web, CMS,MYEYE management solution
4* AHD IR bullet camera:1/4" CMOS,1.0 megapixel,6mm lens,24LED
1*12V/5A integrative power adaptor,with 5 ports DC distributor
4*15M power/video/audio cabler
AHD Hybrid DVR Specification(KH-2104)
| Model | KH-2104 | KH-2108 |
| DSP | GM8283+NVP6114 | GM8287 +2*NVP6114 |
| Compress | H.264(High Profile); | H.264(High Profile); |
| Frame | 4*720P@25fps | 8*720P@25fps |
| AHD Mode 1 | 4*720P(AHD) | 8*720P(AHD) |
| Hybrid Mode 2 | 2*720P(AHD)+2*960H(Analog) | 4*720P(AHD)+4*960H(Analog) |
| Analog Mode 3 | 4*960H | 8*960H |
| Capacity/CH | 720P 20G/day;960H 12~20G/day;Audio:691.2M/day | 720P 20G/day;960H 12~20G/day; Audio:691.2M/day |
| Backup | Network, USB HDD, USB DVD-RW | Network, USB HDD, USB DVD-RW |
| Video in/out | 4*BNC in/1*VGA,1*HDMI out | 8*BNC in/1*VGA,1*HDMI out |
| Audio in/out | 1*RCA in/1*RCA out | 2*RCA in/1*RCA out |
| Play back | 4 channel |
| Net port | RJ45 10M/100M |
| PTZ | 1*RS485;multi protocol |
| USB | 2*USB |
| HDD | 1*SATA(max 4T) |
| WIFI | 3G,WIFI(via USB port) |
| Dimension | 255mm(L)x225(W)x45mm(H) |
Camera Specification
| Model | KA-100F2I |
| Image sensor | 1/4" 1.0 Megapixel CMOS |
| High Resolution | 30fps/25fps@720P(1280*720) |
| D-WDR | Yes |
| 3DNR | Yes |
| LED | 24 LED units with 25M IR distance |
| Lens | 6mm |
| Low Shutter | Yes |
| Analog Output | 1280H CVBS,COMET, AHD1.0 |
| BT1120 Output | 16bit |
| Voltage | DC12V |
| Working temperature | -10°C to +50°C RH95% |
