| Prod Model: |
M3501-1V1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Camera: |
CMOS 0.3 Megapixel |
| IR Light: |
6PCS LED Units |
| Consumption: |
Standby 0.2W;Unlock 12W |
| Frequency: |
2.4GHz |
| Screen: |
3.5"TFT 800×480 |
| Battery: |
3.7V 1250mAh |
Product Description

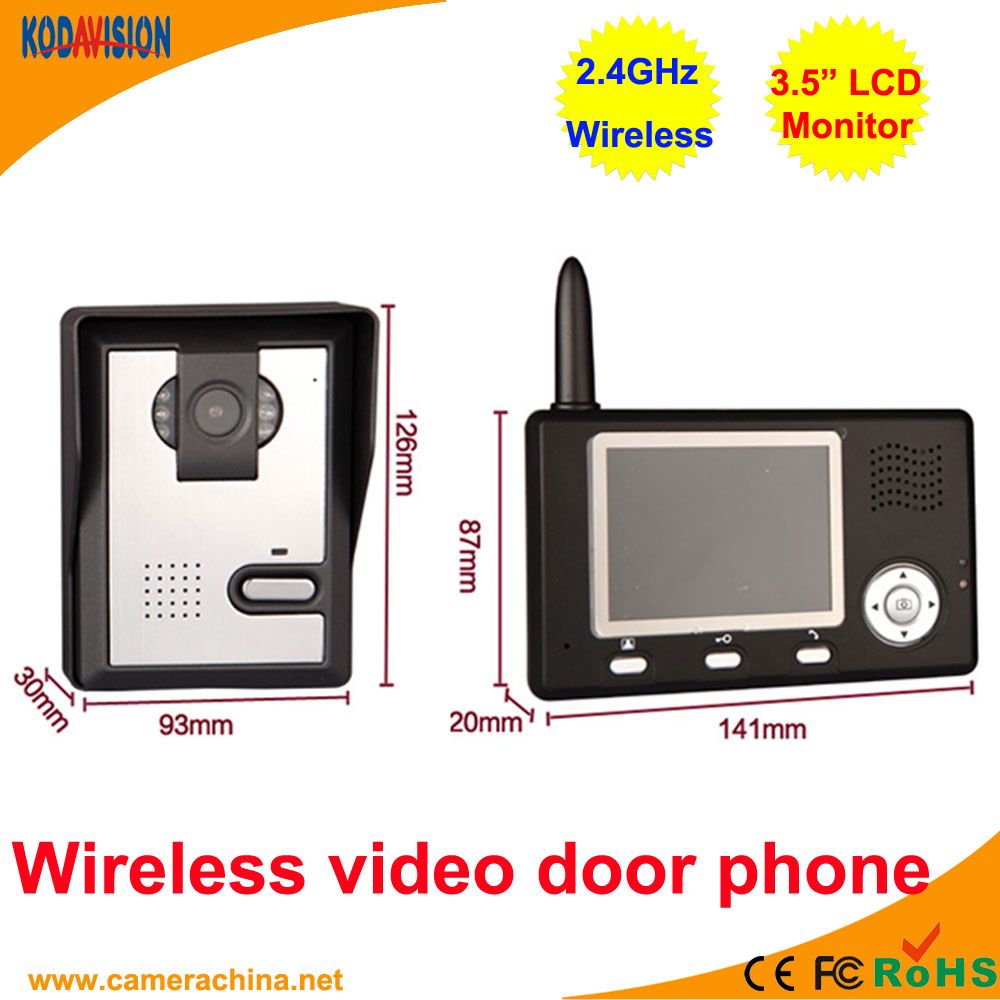

3.5 Inch wirless video door phone
This wireless video door phone system has good vision both at day and night time, you can install them freely any where you want, the signal can transmit and receive without any cable in a long distance(500 meter in open air).And you also can open the door remotely too. Note: the standard set is 1 camera and 1monitor, and this system can be customized too, that means you can select 1 camera with max 4 monitors or max 4 cameras with 1 monitor.
SPECIFICATION
| Items | Front unit(model:MX01) | Items | Client unit(model:M35) |
| Power adapter | Input: AC 100-240V 50/60Hz;Output: DC 5V/1A | USB Power | Input: AC 100-240V 50/60Hz;Output: DC 5V/1A |
| Camera | CMOS 0.3 megapixel | Screen | 3.5"TFT 800×480 |
| IR Light | 6pcs LED units | Battery | 3.7V 1250mAh |
| Consumption | Standby 0.2W;Unlock 12W | Consumption | Standby 0.1W;working 2W |
| Frequency | 2.4GHz | Frequency | 2.4GHz |
| Transmit | 0.01W | Receiving | 0.01W |
| Dimension | 126×93×42 mm | Dimension | 141×87×20 mm |
| Installation | 1 Stick to the door or wall;2 Hanging on the wall | Installation | 1 put on the table with bracket;2 Hanging on the wall |
| Charging | 3 hours | Charging | 3 Hours |
| Standby | 30 days | Standby | 20 Days |
