| Prod Model: |
TFT053A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Type: |
TFT Transmissive |
| Controller: |
Ili6480 |
| Interface: |
24bit RGB |
| Backlight: |
10LED White |
| Resoluton: |
480*272 |
| Viewing Direction: |
12 O'clock |
| Pixel Arrangement: |
RGB Vertical Stripe |
| Driver Element: |
a-Si TFT Active Matrix |
| Active Area: |
53.86*95.04mm |
| Module Size: |
105.5*67.2*2.9mm |
| Usage: |
Small-sized LCM |
| Digital LCD Module Type: |
Timing Module |
| Touch Screen Type: |
Resistive |
| Type: |
Color |
| Viewing Angle: |
IPS |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
Product Description

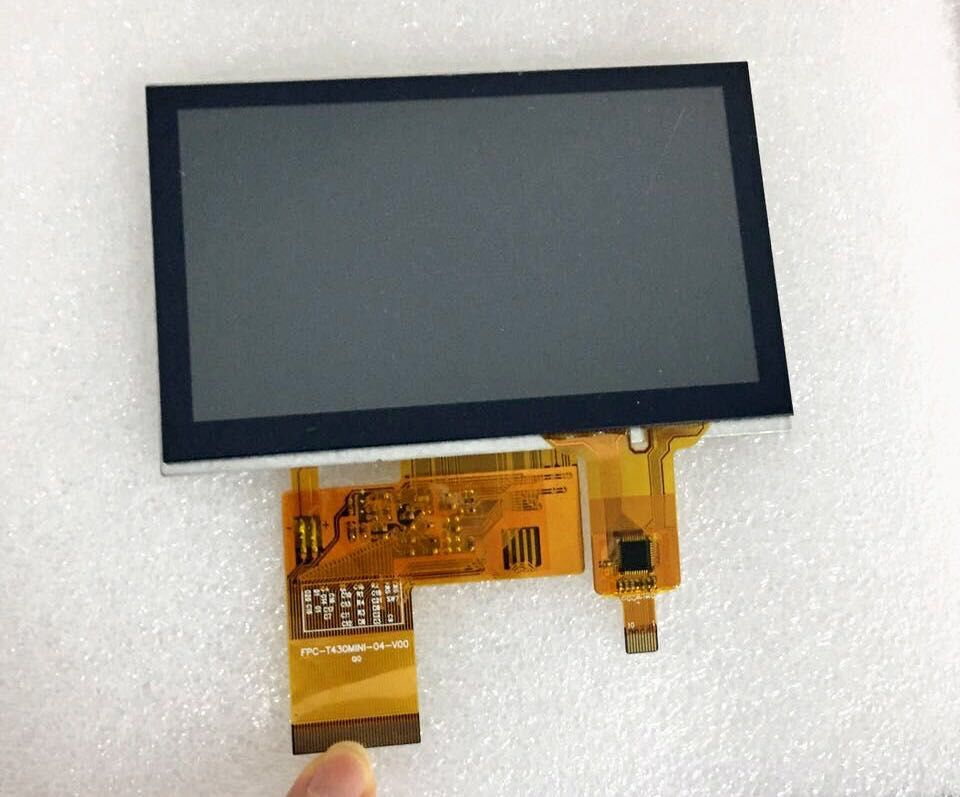

4.3inch TFT LCD Display with Capacitive Touch Screen
1. Gerneral Specification
Place of Origin:Guangdong China (Mainland)
Brand Name:Huayuan
Model Number:TFT053A
Type:TFT
Size: 4.3 inch
Resolution: 480x RGB x 272(WQVGA)
Backlight: 10 LEDs in Series
Viewing direction: 12 O'Clock
Driver: ILI6480
Interface: 24 Bit RGB
FPC cable: 40 pin
Touch Panel: w/o touch panel
Outline dimension:105.5x67.2x2.9mm
Operating temp: -20 to 70 degree
Customized:Available

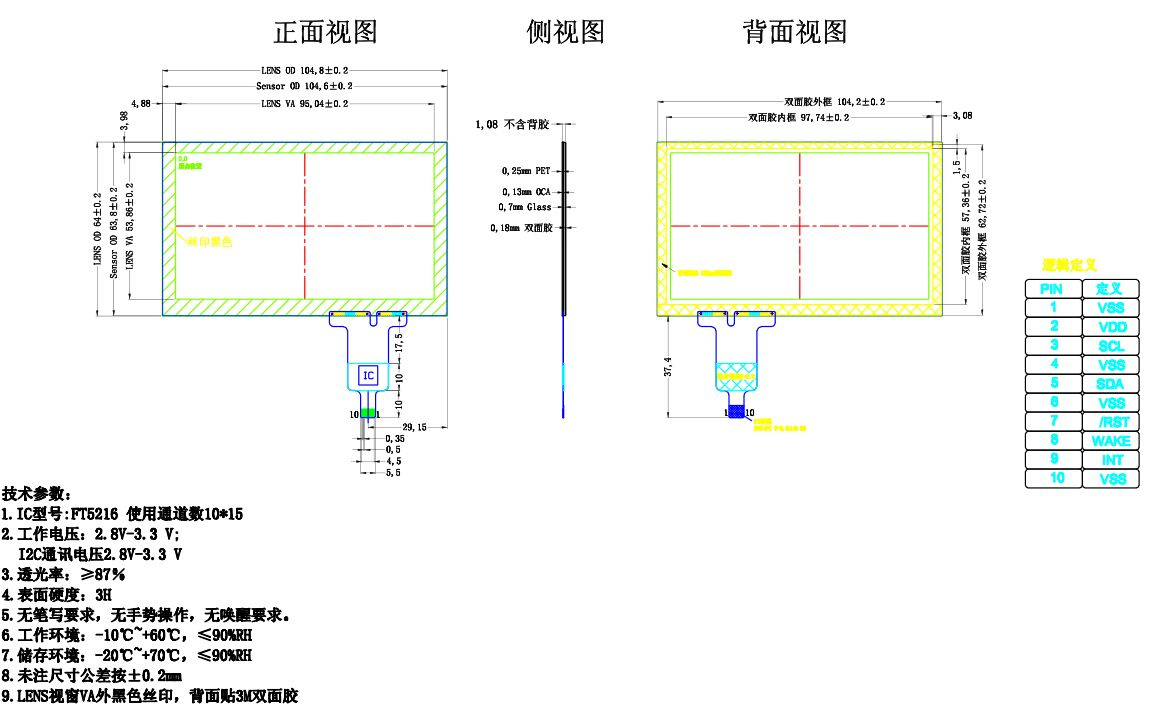

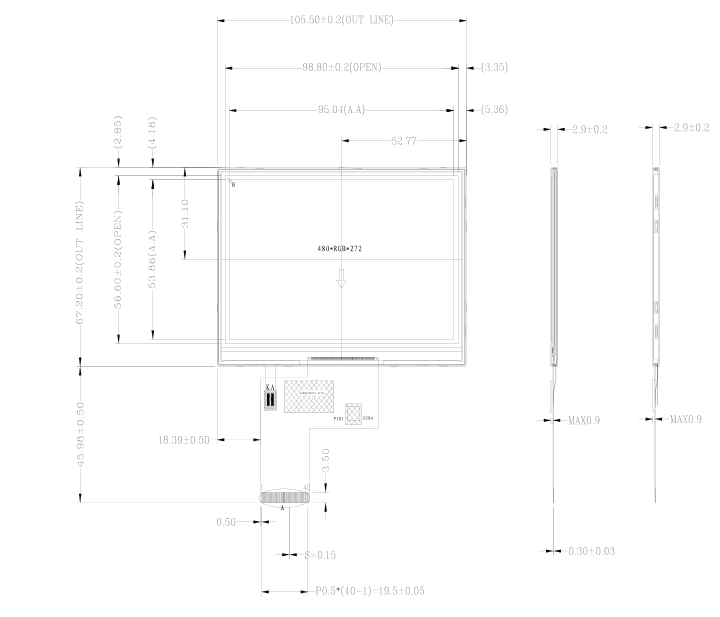

2. Outline Drawing
