4.3 Inch LCD 24bit RGB LCD Screen Display
| Price: |
US $ 7.99-12/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
TFT054A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
4.3 Inch |
| Resolution: |
480(RGB)X272 |
| LED Numbers: |
10 LEDs |
| Color Depth: |
24bit |
| Pin: |
40 |
| IC: |
Ili6480 |
| Brightness: |
200 |
| Pixel Configuration: |
R.G.B.Vertical Stripe |
| LCM(Wxhxd)(Mm): |
105.5*67.2*2.9 |
| With/Without Tp: |
with Tp |
| Application: |
Mobile Phone |
| Aspect Ratio: |
4:3 |
| Feature: |
LED Backlight Display |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
10ms |
| Screen Size: |
4.3 |
| Optimum Resolution: |
480X272 |
| Interface Type: |
RGB |
Product Description

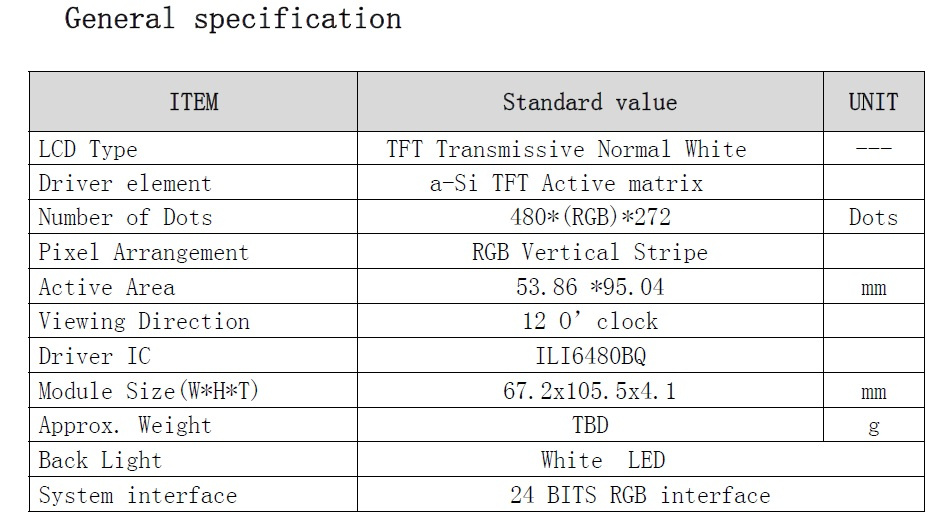

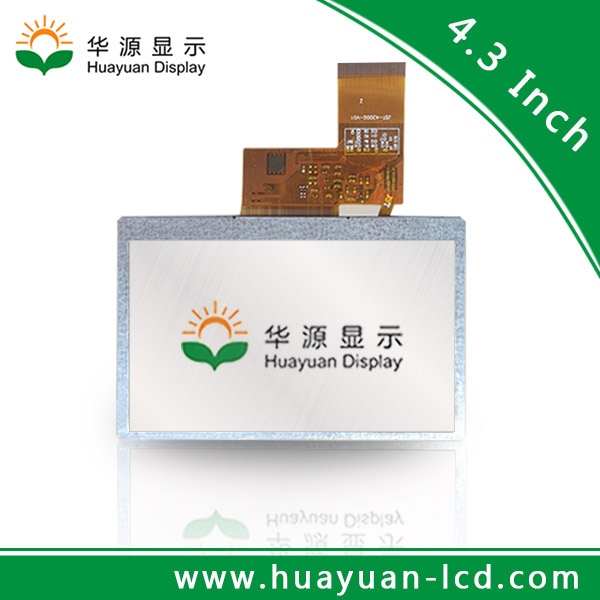

DATA SHEET4.3 Inch LCD Size TFT LCD Screen Display
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: huayuan
- Model Number: TFT054A
- Type: TFT
- LCD Type: TFT transmissive normal white
- Number of dots: 480*272
- IC: ILI6480
- Pixel Arrangement: RGB vertical stripe
- Modulesize(W*H*T): 105.5*67.2*2.9 mm
- Backlight: White LED
- System Interface: 24 Bits RGB interface
- Warranty: 12 months
- Quality: 100% test by aging room
Model NO. : TFT054A
LCD Size : 4.3 inchSize:Length*Width*Highth : 105.5*67.2*4.1Interface : RGBResolution : 480*272(luminance)cd/m² : 200 cd/m²with or without touch panel (TP) : 4&5Wire Resistive Touch(Optional) LED light : 10LEDFPC PINs : 40Diver IC : ILI6480Supply Voltage Of Logic : VDD -0.5 To 5.0VWork Temp : -20 To +70cStorage Temp : -30 To +80cViewing Angle : 12 O' ClockRelated products : 2.8" 3.2" 3.5" 4.3" 5" 5.6" 7" 8" 9" 10.1" 17"LCD Module application Game Machine.Car Audio DVD.GPS.cash register.Industial Automation.Office Automation.MedicalEquipment.LCD Monitor.DVDPlayer.POS machine. Etc.Additional Info.Trademark: Huayuan displayPacking:Carton BoxStandard: ROHS ISO9001 Origin:China Production Capacity:10000PCS/MPackaging & DeliveryPackaging Details: in an anti-statics bag packed in carton or according to the customer's requirementDelivery Detail: 7 days for sample and 25-30 days for mass productionPayment: T/T,paypal,WU etc
| FAQ |
| Q1: Are you a factory or trading company? |
| A1: We are manufacturer. |
| Please refer to our company show |
| Q2: Where is your factory located? How can I visit there? |
A2: Our factory is located in Hunan Province, China.
Welcome to visit our factory. We could pick you up in Changsha Huanghua Airport, or High-speed train Zhuzhou Xi station. |
| Q3: How can I get some samples? |
A3: We don't provide free one, but we will minus the extra price when you reorder with the suitable quantity.
And you will win the 3% discount. |
| Q4: How does your factory do regarding quality control? |
A4: Quality is the priority. We always attach great importance to quality controlling from the start to the end.
Our factory has gained ISO9001, RoHS, SGS certification. |
| Packaging Details: In an anti-statics bag packed in carton or according to the customer's requirement |
| Delivery time: 5-7 days for sample and 25-30 days for mass production. |
| Cooperate Supplier: Tianma, Innolux, Sumsung, Varitronix, CPT, BOE, HSD, Chi mei |
| Exhibition information: Our company will participate 2016 electronics exhibition in Munich, Germany. |
| Related products: |
Character lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc. )
Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240, etc. )
TFT LCD (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 10.2", 10.4", 17" and so on.
TN/STN/HTN/VA segment customized lcd
LED backlight panel
All kinds of LCD Module can customized. |
| Application: |
Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics. |
