| Prod Model: |
QA6106 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia,Western Europe |
| Power Amplifer: |
3u and High Power |
| Function: |
Post Amplifier |
| Tube Type: |
Transistor Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Used For: |
Professional |
| Conductive Mode: |
AB |
| Usage: |
KTV System |
Product Description

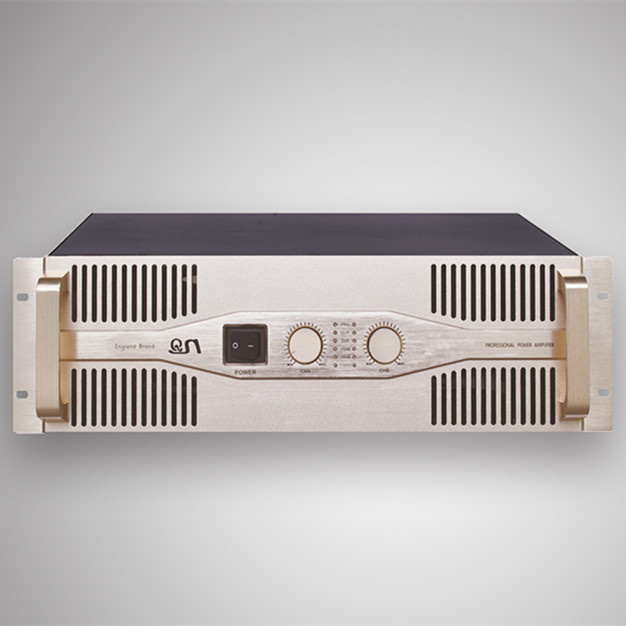

Name: 3U professional home theater power amplifier QA6106
Product Feature:
All the semiconductors are the famous brands - American ON Semiconductor, or Toshiba;
Using a special audio electrolytic capacitors, it shows high-grade and perfect sounds;
It Adopts SMT technology, so it high integration and more stable;
Intelligent CVT fan cooling thermal systems, it will so quiet when the machine is small power or cooling the machine;
Specialized perfect dynamic limiter. It will not loss the sound quality and protect your sound system effectively;
It has perfect protection system, the machine can be stable and not unexpected even if under the extremely conditions.
Designed for the professional market products, all modular, compact design, it has a precise
And comprehensive protection Care system, beautiful and dynamic sound, stable and reliable performance, compact and elegant appearance.
Series for high-end professional market, the series for large Diba, nightclubs, stadiums, theaters and so on.
|
Model |
QA6108 |
QA6106 |
Rated power(power)(1KHz,THD+N=0.7%)
|
8ΩStereo |
800WX2 |
600WX2 |
|
4ΩStereo |
1350WX2 |
950WX2 |
|
4ΩBridged |
3000W |
2200W |
|
Low cut |
/ |
/ |
Protect
|
1.DC protection 2. short circuit protection 3.overheat protection 4.over current protection 5.Input overload protection 6.output overload protection 7.Soft start
|
|
frequency response |
20Hz~20KHz(+-0.3dB)
|
|
sensitivity |
0.775V/1.0V/1.44V |
|
work mode |
Stereo/parral/bridged |
|
fans working way |
intelligent speed adjustment |
connector(each channel)
|
input connector |
XLR(6.3&) |
|
output connector |
binding post&speaker plug(speakon)(SPEAKON) |
input impedance
|
balance input |
20K |
|
unbalance input |
10K |
|
mixed voice reduction |
≥60dB |
|
Signal to noise(RMS 8Ω) |
≥103dB |
|
damp factor |
≥650 |
≥350 |
|
THD |
≤0.08% |
|
Position response |
±10° |
|
speed rate |
≥25V/μs |
|
output circuit mode |
Class H+ |
Class AB |
|
Net weight |
27KG |
22KG |
|
product size |
484W × 380D × 132H |
|
package size(mm) |
590W × 520D×190H |
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.
Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
