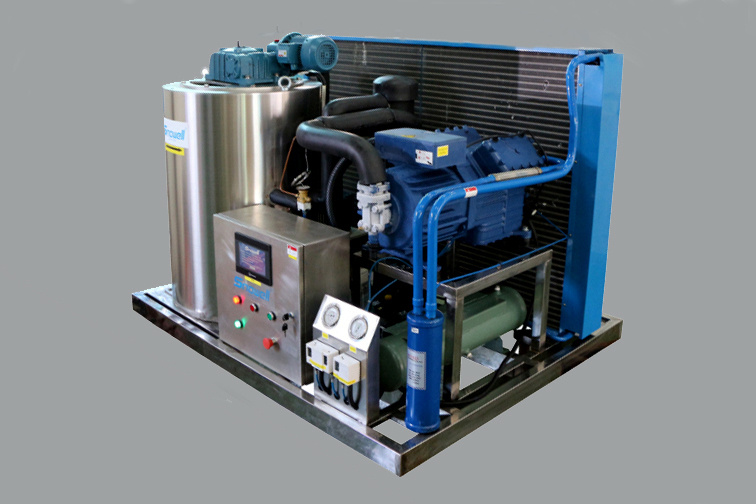

3t Fast Freezing Sea Water Flake Ice Maker

3t Fast Freezing Sea Water Flake Ice Maker
Price: US $ 19990/Piece
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T,Western Union
Prod Model: SFS3T-5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item Name: 3t Fast Freezing Sea Water Flake Ice Maker
Refrigeration Capacity: 18 Kw
Refrigerant: R404A/R22
Ice Machine Total Input: 10.2kw
Ice Making Machine Power Supply: 380V/50Hz/3p or Else
Nominal Current: 18A
Thickness Of Flake Ice: 1.5-2.2mm
Evaporating Temp.: -22°c
Condensing Temp.: 45°c
Warranty: 2 Years
Ice Shape: Flake Ice
Certification: CE
Condition: New

Product Description

Details Description:

3T Fast Freezing Sea Water Flake Ice Maker

Model: SFS3T-4
Flake Ice Maker Daily Capacity: 3000kg
Ice Maker Compressor: Copeland/Bitzer/Bock
Cooling way: water Cooled
Production Capacity Available: 1-60T Per Day

The sea water Ice flake maker  can be used in Fishing Boats, Restaurants, Bars ,Farms, Cooling Room, Factories. Cooling fish ,meat, vegetables, fruits ,beverages ect for preservation purpose.


3T Salt Water flake Ice Maker Technical Parameters


No
DescriptionSpecification
1Design Capacity3000Kg/24h
2Refrigeration Capacity22.5KW
3RefrigerantR404A
4Total Input14.48kW
5Power Supply380V/50Hz/3P or else
6Compressor Running Power13.81kW
7Cooling ModeAir Cooling/Water Cooling
8Evaporator StructureSpiral Groove
9Evaporating Temp.-22°C
10Condensing Temp.45°C
11Flake Ice Temp.-5°C
12Thickness of Falke Ice1.5-2.2mm
13Water Feeding Pressure0.1 Mpa--0.5Mpa
14Design Water Inlet Temp.20°C
15Design Ambient Temp.33°C
16Unit Weight3400KG
17Unit Dimension3600*1497*3090mm

Features of salt water flake ice maker

1.   Perfect design: adopts 3D simulation assembly, compact structure, easy operate and maintain.

2.   Health: Flake Ice maker adopt SUS 304, PE, and aluminum material to process, and adopt big rounded excessive design, everywhere of the machine is easy to clean.

3.   Adopted the newest international ice machine making technology. Equipped with world famous components like Bitzer Compressor, Danfoss Expansion Valve, and so on.

4.   User-friendly design, intellectualized PLC touch-screen control system, which is very convenient for operator

5.   Saving energy and Low maintenance and operation cost for the sea water  flake ice maker

6.   All the material meet the HACCP request. CE, ISO Certificate approved.

Frequent Asked Questions(FAQ)

Q1: What is the delivery time?

A1:
   1).The ice making machine type. Our main product line includes Flake Sea Water/Fresh Water Ice Machine, Tube Ice Machine, and Block Ice Machine. The manufacturing is totally different. So the time and effort spent on these machines varies. Normally the flake ice machine is fastest under the same ice daily capacity

   2). Different Ice Daily Capacity: we have 1T, 2T, 5T, 10T, 20T, 25T, 30T, 40T, 50T ice making machines. For small capacity ice making machines(like1-5 tons), it needs about 10-15 working days. For larger capacity ice machines, it needs around 20-30 working days).

Q2. What is the payment terms and trade terms?

A2: Normally, we accept T/T, 30% Deposit and 70% balance paid before delivery.
      Trade Terms: FOB Shenzhen


Q3: Do I need to install the ice machine by myself?

For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.

For some larger ice machine plant, we need to keep some components separate for shipping convenience. But no worries about that. An installation brochure will be sent to you, it's very to install the machine.

Q4: For Water Cooled and Air cooled Machine, Which one is better?

A4: It depends. If the electricity is more abundant and cheaper than water, air cooled one is recommended. Likewise, you can choose the water cooled one according to the situation.
Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice cube machine, ice block machine, ice plate machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms.

Headquartered in Shenzhen, Snowell has 3 Industrial Parks. Marketing network has been extended to many domestic cities, such as Beijing, Shanghai, Guangzhou, Qingdao, Dalian and Wuhan, and abroad, such as Middle East, Southeast Asia, Europe, Australia, America, Africa and so on.

Snowell attracts numbers of excellent and professional talents and has scientific and research and talents cooperation with many Chinese famous colleges and universities. We have achieved several national patents and get the pressure vessel manufacture license. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.

After almost 10 years of development, Snowell has become the most competitive manufacturer of ice making system and other refrigeration equipments.
