| Prod Model: |
MSR100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

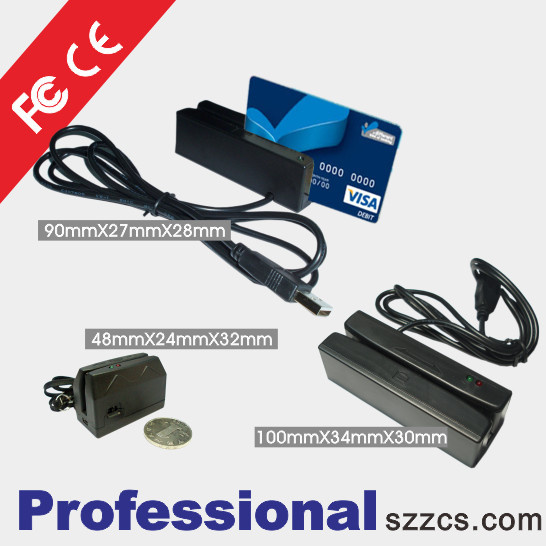

3DES Encrypting Desktop Magnetic Card Reader for banking system
The magnetic card datas can be encryptd with 3DES encryption, USB HID INTERFACE.
USB 3 track magnetic credit card reader
Magtek 21040140 compatible.
Model: ZCS100, OEM Msr100u
ZCS100 is with Three options:
ZCS100 - KB-HID USB keyboard, USB/HID interface, one single head, Bidirectional swipes, 3 tracks readable.
ZCS100 - MAGTEK 100% compatible with Magtek 21040140.
ZCS100 - MAGTEK DUAL HEAD 100% compatible with Magtek 21040140, The magnetic stripe can face towards the front or the back, can be swiped in either direction.
Decription:
USB interface to keyboard buffer, reads 3 tracks of data. Designed for PC laptops. Color is black. Windows programming disk supplied.
Item specifics
Cable: USB cable, really plag and play
Format: ISO7811, 12, 13 credit card, AAMVA driver licenses, JIS standards, gift card, all other standard
Magnetic cards
And all 1, 2, 3 tracks readable
Additional: Drivers licenses readable
Dimensions (lxwxd): 100 * 34 * 30 mm
Used for credit card point of sale, data collection, access control,
Age verification from AAMVA drivers licenses
Advantage:
Low power consumption, power supplied by computer
Excellent design
CE, RoHS, FCC certificated
Function configurable upon request in factory, best performance/cost rate
Key features:
Read 1, 2, 3 tracks
Magnetic card standard: ISO8711, credit, drivers lisence
Read only speed: 10 ~ 150 cm/sec
Power supply: 5V 700mA
Power: Power supplied by computer
Lifespan of the magnetic approx. 300, 000 passes
Display: Operation responded by LED and one buzzer
Interface option: USB
Dimensions (lxwxd): 100 * 34 * 30 mm
Housing: ABS
Weight: 108g
Operating temperature: -20 to +60
Relative humidity: 90% non-condensing
Certification: CE FCC RoHS
Warranty
One-year warranty of defects in material and functionality to the original purchasers. Within the warranty period, if the product found to be defective will be repaired or replaced. This warranty applies to the products only under the normal use of the original purchasers, and in no circumstances covers incidental or consequential damages through consumers' misuse or modification of these magnetic stripe products.
