| Prod Model: |
MSR90T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
90mm |
| Certification: |
CE |
| Type: |
Card Reader |
Product Description
Overview

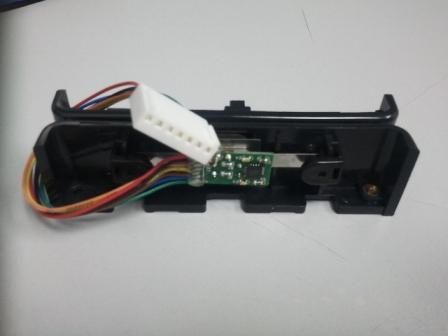

This specification describes the electrical, operational, environmental and
mechanical requirements of the Single Track model respectively. The manual swipe modules are for reading magnetically encoded data on the cards with either high or low energy stripe that confirm to all ANSI/ISO track combination.
Feature
Low power consumption, CMOS For TTL interface
ISO 7811 conformance, 300 OE~4000 OE magnetic cards
Data processing rate: 300~15,000 bps per track
Reading Credit cards, bank cards, and ID cards
Mini Size: customized connector are also available
Specification
Card operation speed: 10 ~ 180 cm/sec
Decodeing Method: F/2F
Life time of head: Approx. 500,000 passes
Card standard: ISO7811,AAMVA,ANSI, and CA DMV
Cable length: 150mm
