| Prod Model: |
TV35 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

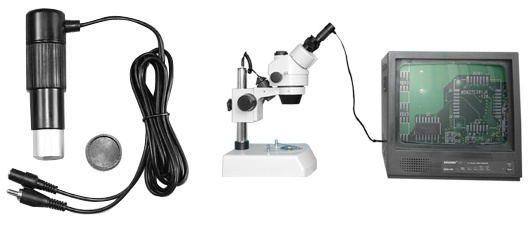

0.35M Digital Video Camera Eyepiece for TV (TV35)
Packing message
1. Single case: Weight: 0.36 kg, Measurement: 15.5*13.5*7.0 cu cm
2. One carton of 50 PCS: Weight: 20.0kg, Measurement: 69.0*33.5*36.5 cu cm
|
Power supply |
9VDC or adapter |
|
Ocular tube size |
23.20mmor 30.00mm |
|
Connection |
Ocular tube or C-mount |
|
Uniform focusing |
Yes |
|
Optics magnification |
10X |
|
Rate of view |
1/3 |
|
Matching lens |
Yes |
|
Resolution of display |
P system: 640*480 |
|
Resolution of display |
N system: 510*492 |
|
AV cable |
1.5 m |
|
Weight of device |
0.085 kg |
|
Sensor parameter |
1/3” 0.35MP color CMOS |
|
Max resolution (N) |
510*492 |
|
Max resolution (P) |
640*480 |
|
Image output |
Video |
|
Preview model(N) |
510*492 |
|
Preview model(P) |
640*480 |
|
Pixel size(N) |
4.69*3.54 |
|
Pixel size(P) |
5.78*4.19 |
|
Sensitivity |
[email protected](3000K) |
|
S/N |
48dB |
|
Dynamic range |
72dB |
|
White balance |
Auto |
Ningbo Barride Optics Co., Ltd is a manufacture-based company about optical and electronic products. Located in the beautiful port city of Ningbo, which has convenient transportation. It takes only 30 minutes to one of the biggest port in China-Ningbo Port and 20 minutes to the international airport.
By several years development, we have become a professional supplier for different kinds of microscopes, telescopes, binoculars, spotting scope, riflescope, magnifier, LED flashlight, compass and accessories. At the same time, we also export night vision, rangfinder, compass and other optical or electronical products according to customers' requirement.
Our company practises ISO9001: 2000 quality standard. The experienced workers and strict inspection system will guarantee each goods will be with best quality before shipment. R&D team continuously optimizes available models and designs new models to keep our products' competition in the market. We can supply OEM and ODM service, additionally we can offer other service, such as logo print, color box design, shipment arrangement, etc.
Totally, we always insist on principle of "3B"-Best Service, Best Quality, Best offer in our business. We enjoy good cooperation with clients from all over the world!
