| Prod Model: |
MD130 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

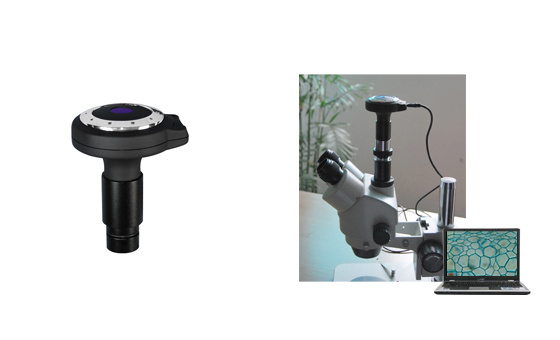

To equip 1.3 MP CMOS sensor and offer full screen display of 1280*1024 in resolution, to equip professional matching optical system and insure sharp and true color images, to equip advanced IC board and have the picture be of wide dynamic range, rich gray tone, it is available to fit on any kinds of precise and compact microscope stably for its compact structure.
|
Power supply |
USB port |
|
Tube diameter |
23.2 mmor 30.0mm |
|
Connection |
Ocular tube or C-mount |
|
Uniform focusing |
YES |
|
Optical magnification |
10X |
|
Rate of field |
1/3 |
|
Matching lens |
YES |
|
Function of software |
Image file management: set up, open up, save, lead in image file
Image capture: switch, setting, shoot, measure, full screen view.
Image edit: picture turn, zoom, cut, modify, email, print |
|
Resolution of display |
1280*1024 |
|
Resolution of picture |
1280*1024 |
|
Resolution of video |
1280*1024 |
|
USB cable |
1.5m |
|
Weight of device |
0.10KG |
|
Sensor Parameter |
1/3" 1.3MP CMOS |
|
Resolution |
1280*1024 |
|
USB port |
USB 2.0 |
|
Frame Rate |
16 fps @ 1280*1024 |
|
Preview Model |
1280*1024, 640*480, 320*240 |
|
Pixel Size |
3.6μ m *3.6μ m |
|
Sensitivity |
1.0 V/lux-sec@550nm |
|
Spectrum response |
400nm-1000nm |
|
Shutter Type |
ERS(electronic rolling shutter) |
|
White Balance |
AUTO |
|
The Length of USB |
1.5m |
|
O/P compatibility |
Win2k, WinXP, Vista |
