| Prod Model: |
D320D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
32inch |
| Resoluton: |
1920*1080 |
| Brightness: |
1000nit |
| Viewing Area: |
700*394 |
| Contrast Ratio: |
16:9 |
| Resolution: |
1920*1080 |
| Backlight: |
Wled |
| Contrast Rate: |
4000:1 |
| LCD Panel: |
Samsung, LG, Auo, Cmi Brands |
| Viewing Angle: |
178/178 |
| Application: |
Semi Outdoor AD Player |
| Screen Size: |
30-40 Inches |
| Installation: |
Wall-Mounted |
| Type: |
Network Version AD Player |
| Touch Screen Type: |
Resistive |
| Screen Technology: |
LED |
| Interface Type: |
D-Sub(',VGA) |
| Remote Control: |
With Remote Control |
| OS: |
Windows |
| Customized: |
Customized |
Product Description

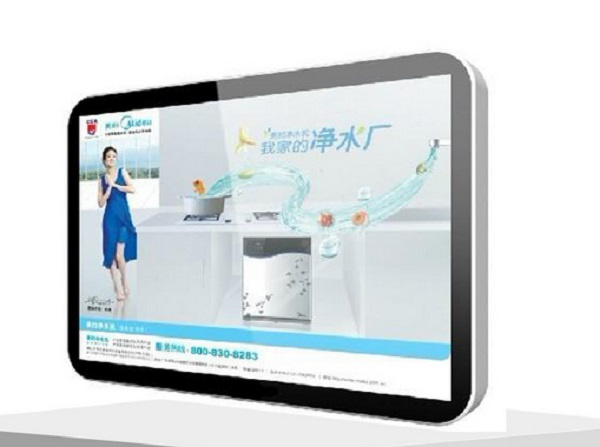

32inch wall mounted advertising lcd display
Main Features:
19,22,26,32,42,46,55,65,72,82inch available
World famous brand LCD panel Samsung, LG,AUO,CMI
Portrait or Landscape brackets and display mode
Wall-mounted, slim body and Aluminum frame design
Toughened glass and SPCC material
FULL HD 1080P, LED backlit, large viewing angle
High brightness and contrast, 120Hz refresh rate and 6ms response time
Built-in HI-FI stereo loudspeakers
Support remote controller
Support USB flash, SD card, HDMI,VGA input
RJ45, WIFI, 3G available
Management software available
Support popular media formats
Stable and reliable, long using life
CCC,CE,FCC,UL RoHS certificate
1 year warranty for LCD panel, three years for others
Lifetime services
Monitor version, stand-alone version, Network version available
Android and X86 PC version available
Multi-points touching screen available
Authorization Local Language window OS available
Logo service available
OEM or ODM service available
Specification
Item |
Parameter |
Model |
D320D |
LCD |
Panel size |
32" |
Resolution |
1366x768 |
LCD panel |
Samsung, LG,AUO,CMI Brands |
Viewing Area |
700*394mm |
Screen ratio |
16:9 |
Backlit |
LED backlit |
Contrast rate |
4000:1 |
Brightness |
400cd/m2 |
Response time |
8ms |
Viewing angle |
178/178 |
Color |
16.7M colors 8bits |
Using life |
>60,000hrs |
Player and function |
Monitor version |
HDMI,VGA,DVI,AV,BNC,YPbPr, etc |
Single version |
Plug and Player
USB,SD port, HDMI or VGA available |
Network version |
RJ45 for internet, WIFI or 3G available |
Android version |
Android board with WIFI, add APP for working
Touch screen available
Better extension functions |
X86 version |
X86(windows or Linux) need software
Touch screen available
Better extension functions, wifi, 3G available |
Support popular media formats and functions |
Enclosure |
Round corner
Or rectangle |
Front: Tempered glass
Side: unibody strong aluminum frame
Back: SPCC board
Bracket: portrait and landscape using
With lock |
Power |
Power supply |
AC110 or 220V 50/60hz |
Consumption |
<65W, standby <1W |
Loud speaker |
2*5W |
Environment |
Working Temp. |
0~40ºC |
Storage Temp. |
-20~60ºC |
Working Humidity |
85% |
Storage Humidity |
85% |
Others |
Size |
791mm*488.6mm*54mm |
Weight |
19.2kg |
Color |
Black or customized |
Installation |
Portrait or landscape wall mounted brackets |
Certificate |
ISO9001,CCC,CE,UL,FCC,RoHS |
Package |
Carton box with EPE foam, wooden case |
All the parameters related to the real products.
Player functions
Monitor board functions |
HDMI, VGA, DVI,AV,YPbPr,BNC input ports etc |
Single version board |
Using professional FHD multimedia discoed chips, high frequency cup
DC12V input, industry design, lower power consumption, stable and anti-interference
Working mode: normal, standby mode
Storage: usb 2.0,plug and playe
media formats:MP3,WMA,JPEG,MEPG4(AVI:Div-X / X-Vid),MPEG2(DVD:VOB/MPG2),MPEG1(VCD:DAT/MPG1),MOV etc
PAL,NTSC,auto video
Support 1080P and 1080I 19200*1080
Audio output: stereo audio 2x6w 85db
Playing mode: single loop, folder loop, all loop
OSD language: chines,English, etc 11 languages
Support remote controller
Timing working for power on and power off
Animation text
Support start from last memory
Support time display
Support auto copy the file to memory card
Support HDMI/VGA port input as monitor using(optional)
Support multi windows on screen
Support play list, timing play list |
Network version board |
RJ45 connection for network
WIFI network connection available
3G network connection available
B/S structure CMS system
Renew the program from internet
Using professional FHD multimedia discoed chips, high frequency cup
DC12V input, industry design, lower power consumption, stable and anti-interference
Working mode: normal, standby mode
Storage: usb 2.0,plug and play
media formats:MP3,WMA,JPEG,MEPG4(AVI:Div-X / X-Vid),MPEG2(DVD:VOB/MPG2),MPEG1(VCD:DAT/MPG1),MOV etc
PAL,NTSC,auto video
Support 1080P and 1080I 19200*1080
Audio output: stereo audio 2x6w 85db
Playing mode: single loop, folder loop, all loop
OSD language: chines,English, etc 11 languages
Support remote controller
Timing working for power on and power off
Animation text
Support start from last memory
Support time display
Support auto copy the file to memory card
Support HDMI/VGA port input as monitor using
Support multi windows on screen
Support play list, timing play list |
X86 version |
Windows or Linux OS+ software + WIGI dongle or 3G dongle (camera available)
Small PC with software for working(functions are similar with network version)
Touch screen available, can be the interactive lcd display |
Android version |
Android board with APP for working+3G dongle (camera available)
APP can be single version player, network control player, also can be others
Touch screen available, can be the interactive lcd display |
TV board |
HDMI input
USB port for playing
TV RF port |
