| Prod Model: |
T315XW04 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

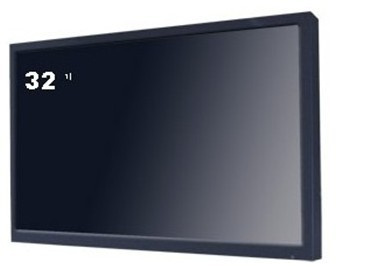

Product Description
1. Silver Black or White color is available, perfet design, Very Beautiful.
2. High Luminance Customized(1000-2000 CD/m2), Outdoor readable.
3. Waterproof IP65 grade. (Need replacement Dustproof cotton every six month).
4. Support Memory Card capability: 32MB-16GB. Such as CF, SD card and U-Disk, etc.
5. Build-in SD Card and U-Disk Reader. Play high reliability.
6. With U-disk Update features.
7. Safety locking system function to protect SD Card and U-Disk.
8. Play Advertising program automatically and circular.
9. Support Update advertising program and information with 3G network.
10. Build-in two waterproof speakers stereo, rated power is 2 X 5W.
11. Multi-language OSD, such as English, Spanish, Russian, France (Customized).
12. Build-in clock and calendar function in the system of player
Model |
BR320D15 |
Active screen size |
31.5 inch (800.1mm) diagonal |
Outline Dimension |
731.8(H) x 426.4(V) x 35.0(D) mm(Typ. ) |
Active Area |
698.4(H) x 392.85(V) mm |
Pixel Pitch |
0.36375 mm x 0.36375 mm |
Pixel Format |
1920 horiz. by 1080 vert. Pixels. RGB stripe arrangement |
Display Colors |
10bit 1.06Bilion colors |
Luminance, white |
1500 cd/m2(Typ. Center 1 point) |
Power Consumption |
156.86 W |
Watts(Typ. ) (PDD=6.86W PBL=150W) |
Weight |
6.1Kg (Typ. ) |
Display operating mode |
Transmissive mode, normally black |
Surface treatments |
Hard coating (3H), Anti-glare treatment of the front polarizer |
Berise Technology (Shenzhen) Limited, is a Hi-Tech company specializing in producing High Brightness LED Backlight LCD, optics binding, LCD panel cutting technology and the other general reinforcement technique etc.
Products are mainly divided into two categories: outdoor advertising and military reinforcement displays
In outdoor display, The products of our company all used the top High Brightness LED backlight module and DID splicing techniques breaking the monopoly of foreign technology and making the popularity of home-based LED possible.
Now we have the patents in controlling the core technologies of the backlight module. We all inherit the management philosophy of "Rise in Shenzhen, Service the global"and innovate continuously for excellence in technique and service. We are making every effort to become the most powerful and the most effective enterprise in the LED backlight field. Because of the hi-quality and high-rank displaying effect, our products received a considerable acclaim. And we also have estabished a good partnership with some major industry, e. G. TCL and Zhuhai Satow ect
In military reinforcement display products, after years of development, has a number of patented technologies, products cover a wide range, meet the requirements of multiservice to display products
optics binding and optical coating technology, can greatly improve the visibility of the display product in the sun, product vibration resistance and the characteristics of low pressure, at the same time can prevent the inside the product of the fog; Independent research and development of the LCD panel cutting technology, and is not restricted by space, according to the customer request custom display screens of all sizes; LED backlight technology, expanding the product color gamut space, improves the performance of vibration resistance, improves temperature characteristics of the product LED; high-performance, high-bandwidth military board technology, adopted FPGA research and development of IP technology, which can realize the 2 D / 3 D graphics generation, it can realize pip, pop, color key, overlay drafting, Image fusion such as a variety of display mode, can support up to 4090 * 2048 resolution
