| Prod Model: |
LI10AF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
TFT |
| Feature: |
3D Display |
| Screen Size: |
≤17" |
Product Description
General description

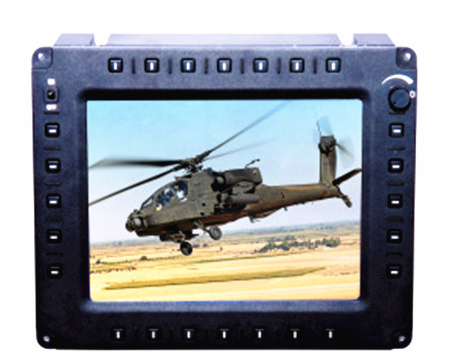

Rugged airborne intelligence TFT LCD is on the basis of airborne display, developed for meeting the needs of airborne avionics system. This series products could visible in wide temperature range(-45centigrade to 60 centigrade), under strong sunshine, resistance to strong vibration impact and other evil environment, at the same time, with 155B, ARNIC-429, RS-422 communication interface. And our technique makes this series products have 2D/3D graphics generation ability, also can realize the function of visualization of digital graphics and aviation instrument. Except these characteristics, rugged airborne intelligence TFT LCD support around the buttons, touch screen interaction capabilities, and completely adopts modularization design, which makes replacement, maintenance and upgrade of products more convenient.
Products features
Adopts modularization structure
Support multiple video fusion and overlap display
With open embedded programming interface
Function of digital map software display
With OpenGL graphics development capabilities, with 3D graphics processing power.
With characters, graphics rotating display function.
|
Item |
LI10AFM |
|
Dimension(mm) |
300x250x150 |
|
weight(KG) |
<7.5 |
|
display area(mm) |
211.2x158.4 |
|
resolution(pixels) |
1024x768 |
|
dispaly color |
16.7M |
|
brightness |
>800nits |
|
contrast ratio |
>300 : 1 |
|
view angle |
120 ( H) 120(V) |
|
power supply |
AC115 400HZ |
|
power consumption |
Nomal |
<50(W) |
|
Blue heating |
<120(W) |
|
interface |
VGA\DVI\LVDS\PAL |
|
data format |
1553B,ARINC429 , 100M Ethernet interface RS-422,IEEE 1394 |
|
working temperature |
-45centigrade to 60 centigrade |
|
storage temperature |
-55 centigrade to 70centigrade |
|
vibration |
Meet GJB150.16-1986 |
|
shock |
Meet GJB150.18-1986 |
|
EMC |
Meet GJB151A-1997 |
Berise Technology (Shenzhen) Limited, is a Hi-Tech company specializing in producing High Brightness LED Backlight LCD, optics binding, LCD panel cutting technology and the other general reinforcement technique etc.
Products are mainly divided into two categories: outdoor advertising and military reinforcement displays
In outdoor display, The products of our company all used the top High Brightness LED backlight module and DID splicing techniques breaking the monopoly of foreign technology and making the popularity of home-based LED possible.
Now we have the patents in controlling the core technologies of the backlight module. We all inherit the management philosophy of "Rise in Shenzhen, Service the global"and innovate continuously for excellence in technique and service. We are making every effort to become the most powerful and the most effective enterprise in the LED backlight field. Because of the hi-quality and high-rank displaying effect, our products received a considerable acclaim. And we also have estabished a good partnership with some major industry, e. G. TCL and Zhuhai Satow ect
In military reinforcement display products, after years of development, has a number of patented technologies, products cover a wide range, meet the requirements of multiservice to display products
optics binding and optical coating technology, can greatly improve the visibility of the display product in the sun, product vibration resistance and the characteristics of low pressure, at the same time can prevent the inside the product of the fog; Independent research and development of the LCD panel cutting technology, and is not restricted by space, according to the customer request custom display screens of all sizes; LED backlight technology, expanding the product color gamut space, improves the performance of vibration resistance, improves temperature characteristics of the product LED; high-performance, high-bandwidth military board technology, adopted FPGA research and development of IP technology, which can realize the 2 D / 3 D graphics generation, it can realize pip, pop, color key, overlay drafting, Image fusion such as a variety of display mode, can support up to 4090 * 2048 resolution
