| Prod Model: |
TLXV3F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Function: |
Signal Transmitting Device |
| Type: |
TV Front-end Equipment |
Product Description

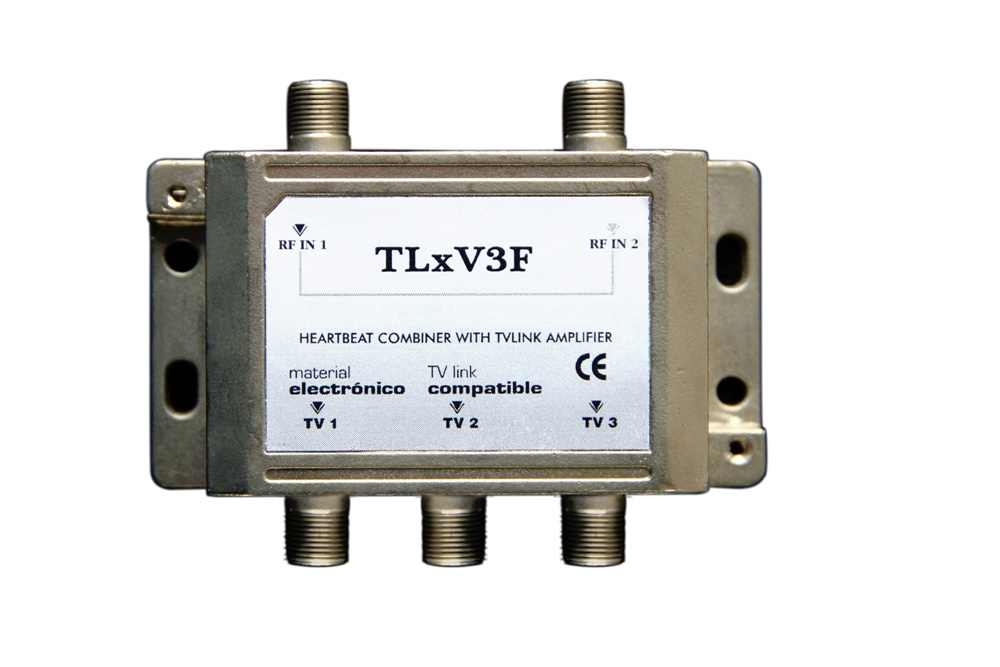

3 way indoor TV-Link distribution Amplifier TLXV3F
Specifications
Direct to Housing thermal interface for voltage regulator
Feed through capacitor and serrrated base ensure RFI Isolation
Fetures:
1. All RF ports shell be type F female
2. Direct to Housing thermal interface for voltage regulator
3. Water proof Housing
4. Feed through capacitor and serrated base ensre RFI Isolation better than 100dB
5. Gold-plated beryllium-copper 360 round seixing pin maximizes center. Conductor surface provides exvellent retention even after repeated entry.
6. Zinc die-cast Housing, heat Sink Housing
|
CATEGORY |
SPECIFICATION |
VALUE |
|
GENERAL |
Number of Outputs |
3* |
|
Supply Voltage-coax power(Vdc) |
9 |
|
Supply Voltage-external power(Vdc) |
12~18 |
|
Coax supply current required(mA) |
less than 100 |
|
External power supply current required(mA) |
less than 120 |
|
TV3/4 max output current(mA) |
30(two TV link eyes) |
|
TV1 and TV2 max output current(mA) |
15(one TV link eyes) |
