| Prod Model: |
TLX2F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Function: |
Signal Transmitting Device |
| Type: |
TV Front-end Equipment |
Product Description

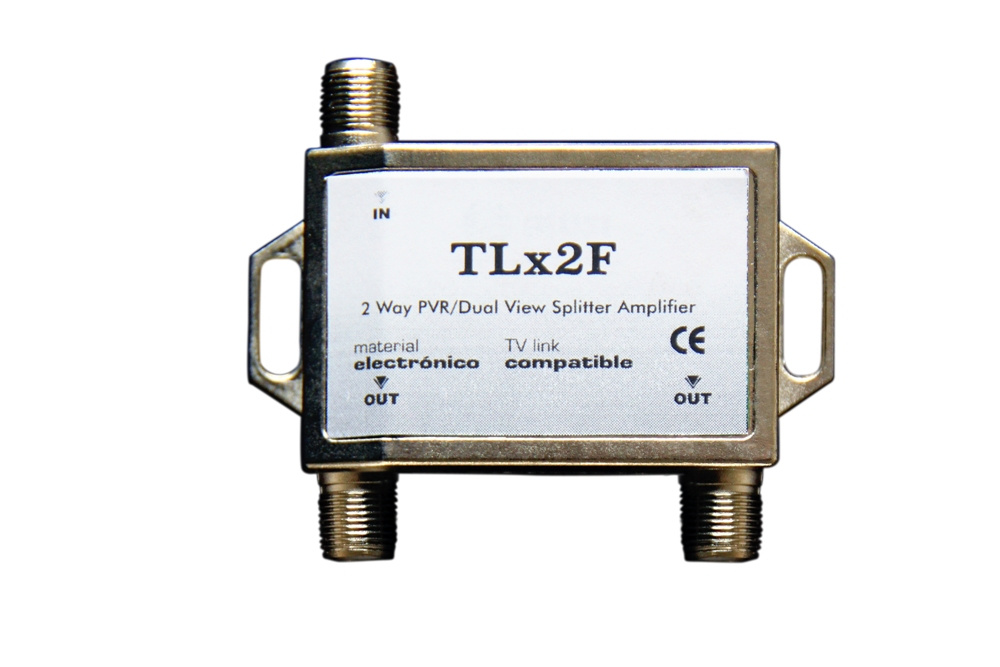

2 Way Active PVR/Dual View amplifier
Specifications
Direct to Housing thermal interface for voltage regulator
Feed through capacitor and serrrated base ensure RFI Isolation
Fetures:
1. All RF ports shell be type F female
2. Direct to Housing thermal interface for voltage regulator
3. Water proof Housing
4. Feed through capacitor and serrated base ensre RFI Isolation better than 100dB
5. Gold-plated beryllium-copper 360 round seixing pin maximizes center. Conductor surface provides exvellent retention even after repeated entry.
6. Zinc die-cast Housing, heat Sink Housing
|
Forward Freq: |
88-862MHz |
|
gain: |
10dB |
|
Reverse Freq: |
5-25MHz |
|
gain: |
12dB |
|
Voltage on Outputs: |
9VDC @ 15mA per outlet ,bidirectional |
|
Line Power Supply: |
9VDC from the RF out-2 connector of satellite receiver |
|
External Power Supply: |
no need POWER |
Danyang Guangyi Electronics Co., Ltd was founded in 2004, professional in RF series products, Cable assembly, AUDIO/VIDEO series products and CATV/SATV Equipment.
Our continued success with research and design services, OEM, ODM and product sourcing has proven that Guangyi has the resources and knowledge to continue to provide innovative, competitive and profitable products to meet our customer' S demands.
We are a company committed to excellence and our mission is to champion our customers! ! !
Our Core Competencies:
Able to Supply Reliable Quality
Able to Quote Competitive Prices
Able to Achieve High Precision
Able to Provide Specialist Services.
Quality Control
The processes documents and Inspection regulations control the entire production flow, there are seven steps to ensure parts manufacturing are under proper monitoring,
They are started from raw material inspection and ended at final Inspection.
We do not allow defected parts out of factory, and all of records can be traced back.
Resources
Our Company also provides with a laboratory of highly qualify engineers and technicians accompanied by instruments and computer software. Dedicated to prove, design and generate technical solutions according to the needs of our customers.
Equipment we have:
CNC Lathes
CNC Carved machines
Full-auto Lathes
Semi-auto Lathes
Test equipment for RoHS RoHS
Agilent test machine
Workplace for die-casting and processing Copper bar
