| Prod Model: |
HDSW0003M1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
3 Port HDMI/Mhl Audio Extractor 4k*2k Arc |
| Input: |
HDMI/Mhl |
| Audio Output: |
L/R+Spdif |
| Support: |
4kx2k 1080P 3D Arc |
| Max Bandwidth: |
300MHz |
| HDMI Version: |
V1.4 |
| Max Baud Rate: |
9.0gbps |
| Audio Mode: |
Adv /2.0CH / 5.1CH |
| Shielding: |
Audio Extractor |
| Warranty: |
1 Year |
| Home Audio & Theater Speaker Mount: |
Wall Mount |
| Home Audio & Theater Watts Per Channel: |
<50W |
| Player Type: |
Blue-Ray Player |
| Speaker System Audio Output Mode: |
Dolby Digital |
| Control: |
Wireless |
| Sound Channel: |
7.1 |
| FM: |
Without FM |
| HDMI Quantity: |
3 |
| Finish: |
Metal |
Product Description
3 Port HDMI/MHL Audio Extractor with 4K ARC Audio EDID setting 5.1CH/PASS/2CH
Specifications

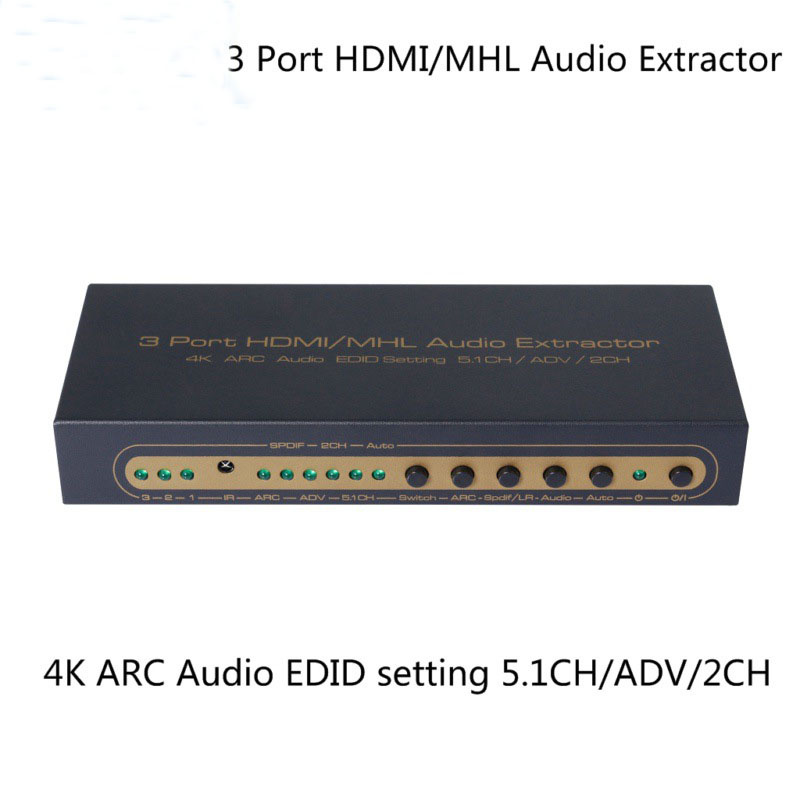

3 Port HDMI/MHL Audio Extractor
1.Support Full HD, Full 3D
2.Support CE FCC ROHS
3.Support 4Kx2K resolution
(4K ARC Audio EDID setting 5.1CH/PASS/2CH)

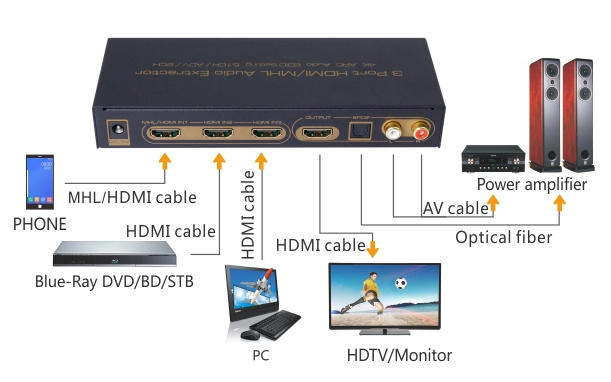

The device is one 3Port HDMI Audio Extractor with support of ARC,3D and 4KX2K,which can switch easily three HD Sources or one MHL smart sources to one HD Display. Also any of the input sources support the audio extract by the SPDIF and LR audio output channel. The Switcher supports ARC function that can do TV audio return back to the AV receiver.
FEATURES

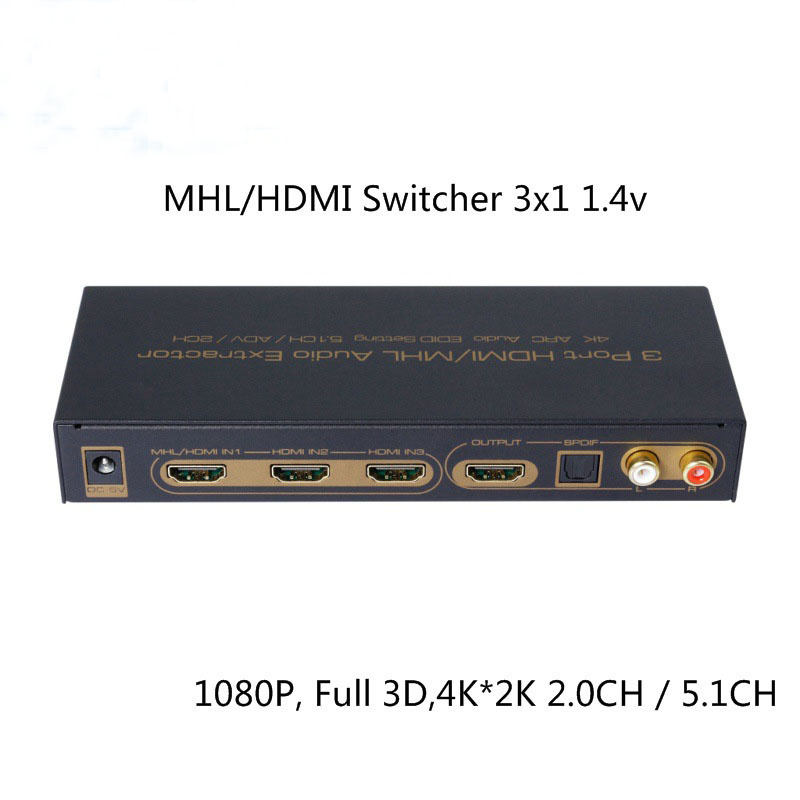

l One MHL/HDMI double input and two HDMI input switch freely to one HDMI output.
l Any input HD Source can do audio extract by the SPDIF ort LR audio output port.
l Support Full HD 1080P, Full 3D,4K*2K
l Support ARC Function: Without adding one extra HDMI Cable, it can reverse the audio to the AV Amplifier by HDMI Cable connection with HD TV while the HD TV receives the audio and video content.
l MHL / HDMI working in dual mode, can reduce the number of ports
l HDMI to achieve the synchronization of audio signal separation. There are PASS /
2.0CH / 5.1CH three kinds of audio mode options
l LED indication: when source or sink is working, LED related will go bright.
l Support input up to 10metres using AWG26 HDMI standard cable length, output up to 15metres using AWG26 cable length
l IR Remote can do switch to the Input sources, and also you can press the switch button at device to do switch of the Input Sources.
l Led Status Light allows the user to know the working status easily.
l No loss of quality
l Installs in minutes
l Need DC5V/1A power supply
SPECIFICATIONS:
HDMI resolution ...............…..4KX2K/1080p/1080i/720p/576p/576i/480p/480i
Support video color format .......................….24bit/deep color 30bit,36bit
Audio output..........................................….. L/R+SPDIF
Max transmission bandwidth.............…...................….. 300MHz
Max baud rate..........................................….9.0Gbps
Input/Output TMDS signal ................................. 0.5~1.5Volts p-p
Input/Output DDC signal ........................…........ 5Volts p-p (TTL)
Input cable distance..…... ............…....…..≤10m AWG26 HDMI standard cable
Output cable distance...........................≤15 AWG26 HDMI standard cable
Max working current..........................................500mA
Power adapter format...........Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range...........…...................… (-10 to +55°C)
Storage Temperature range.................................… -20 to +60°
Operating Humidity range................…....….10 to 90%RH (No Condensation)
Storage Humidity range................…....….…5 to 95%RH (No Condensation)
Dimension (L x W x H).................................…179X67X28(mm)
Weight…................................…....................…365g

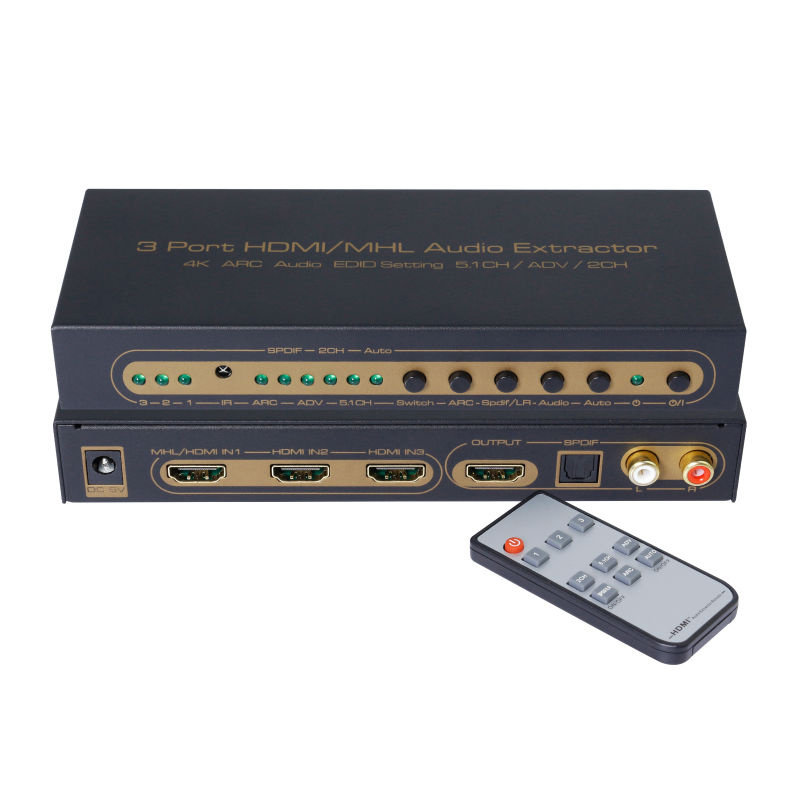

The accessories with the machines list as picture:
1,5V power adapter 1pcs
2,User manual 1pcs
3,Remote 1pcs
4,MHL-HDMI cable 1pcs (Optional)
