| Prod Model: |
YET-682 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Keywords: |
3-Meter Range RFID Card UHF Reader |
| Type: |
Card |
| Usage: |
Access Machine |
Product Description

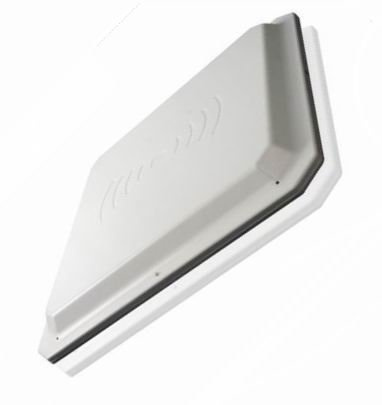

3-meter Range RFID Card UHF Reader Car Parking System (YET-682)
RFID Reader supplier, UHF RFID Reader manufacturer, RFID Reader, Passive RFID Reader company, RFID Reader factory
Read ISO-18000-6C EPC GEN2 RFID Tag
Reading/writing range is more than 3m
Waterproof: IP65
UHF AlienH3
Product parameters:
1. Operating frequency: 902~928MHz(860-960MHz).
2. Product dimension: 250X250X60MM.
N. W. 1.2 kgs G. W.: 2.5kg
3. Operating voltage: DC-9V± 0.5V.
4. Power consumption(max): 5W.
5. Storage temp: -45oC~+95oC operating temp: -35oC~+65oC.
6. Supporting agreement: ISO-18000-6C(EPC G2), ISO-18000-6B(choose one).
7. Antenna gain: 7dBi polarization.
8. Antenna power: Access antenna power 1W(adjustable).
9. Effective distance: Reading/writing range is not less than 2m
10. Data interface: At the same time with RS232, RS485, Wiegand 26 data interface;
Leave the external triggering signal access port in advance.
11. Rapid recognition: Can identify fast-moving electronic labels, the speed is
Faster than 120km/h.
12. Packaging weight: 2.0Kg
13. Waterproof: IP65
|
1. Operating frequency |
902~928MHz(860-960MHz). |
|
2. Product dimension |
250X250X60MM. |
|
N. W. |
1.2 kgs |
G. W. |
2.5kg |
|
3. Operating voltage |
DC-9V± 0.5V. |
|
4. Power consumption(max) |
5W. |
|
5. Storage temp |
-45oC~+95oC operating temp |
|
-35oC~+65oC. |
|
|
6. Supporting agreement |
ISO-18000-6C(EPC G2), ISO-18000-6B(choose one). |
|
7. Antenna gain |
7dBi polarization. |
|
8. Antenna power |
Access antenna power 1W(adjustable). |
|
9. Effective distance |
Reading/writing range is not less than 2m |
|
10. Data interface |
At the same time with RS232, RS485, Wiegand 26 data interface; |
|
Leave the external triggering signal access port in advance. |
|
|
11. Rapid recognition |
Can identify fast-moving electronic labels, the speed is Faster than 120km/h. |
|
12. Packaging weight |
2.0Kg |
|
13. Waterproof |
IP65 |
