Hunan Huayuan Display Technology Co., Ltd. >> 3.5inch TFT LCD Micro Display

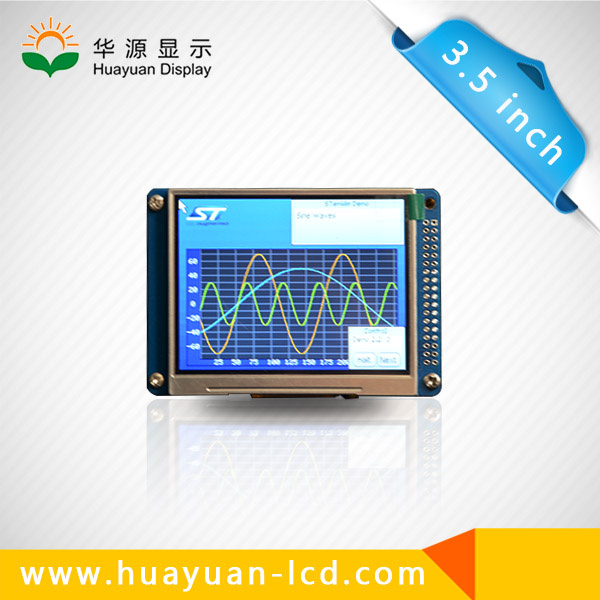

3.5inch TFT LCD Micro Display

3.5inch TFT LCD Micro Display
Price: US $ 7.99-10/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: TFT051A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LCD Type: TFT Transmissive
Pixel Pitch: 0.219X0.219
Interface: 24bit RGB
Backlight: 12LED White
Active Area: 70.08*52.56mm
Module Size: 76.9*63.9*3.2mm
Pixel Arrangement: RGB Vertical Stripe
Driver Element: a-Si TFT Active Matrix
Viewing Direction: 6 O'clock
Screen Size: ≤17"
Application: Mobile Phone
Aspect Ratio: 4:3
Feature: Touch Display
Type: TFT
Widescreen: Not Widescreen
Response Time: 5ms
3D: Not 3D
Optimum Resolution: 320X240
Interface Type: RGB

Product Description

3.5inch TFT lcd Micro Display
1. Gerneral Specification
Place of Origin:Guangdong China (Mainland
Brand Name:Huayuan
Model Number:TFT051A
Type:TFT
Size: 3.5 inch tft touch display

Resolution: 320x RGB x 240


Backlight: 12 LEDs in Series

Viewing direction: 6 O'Clock


Driver: HX8238

Interface: 24 Bit RGB

FPC cable: 54 pin

Outline dimension:76.9x63.9x4.3mm
Operating temp:   -20 to 70 degree
Customized:Available

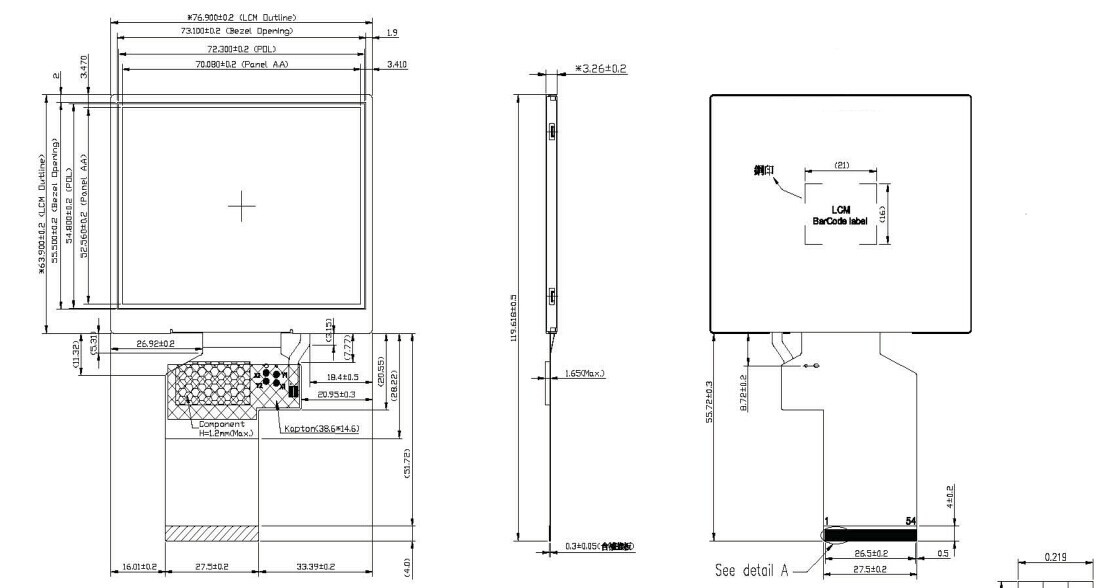

2. Outline Drawing







FAQ
Q1: Are you a factory or trading company?
A1: We are manufacturer.
Please refer to our company show
Q2: Where is your factory located? How can I visit there?
A2: Our factory is located in Hunan Province, China.
Welcome to visit our factory. We could pick you up in Changsha Huanghua Airport, or High-speed train Zhuzhou Xi station.
Q3: How can I get some samples?
A3: We don't provide free one, but we will minus the extra price when you reorder with the suitable quantity.
And you will win the 3% discount.
Q4: How does your factory do regarding quality control?
A4: Quality is the priority. We always attach great importance to quality controlling from the start to the end.
Our factory has gained ISO9001, RoHS, SGS certification.
Packaging Details: In an anti-statics bag packed in carton or according to the customer's requirement
Delivery time: 5-7 days for sample and 25-30 days for mass production.
Cooperate Supplier: Tianma, Innolux, Sumsung, Varitronix, CPT, BOE, HSD, Chi mei
Exhibition information: Our company will participate 2016 electronics exhibition in Munich, Germany.
Related products:
Character lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc. )
Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240, etc. )
TFT LCD (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 10.2", 10.4", 17" and so on.
TN/STN/HTN/VA segment customized lcd
LED backlight panel
All kinds of LCD Module can customized.
Application:
Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics.
Contact Us: Send inquiry to us to get newest price and information.
Tel: +86-731-28668968    Phone:+86-18390814654
Fax: +86-731-28660280


We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.

The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.

Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.

Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of

Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.

Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
