| Prod Model: |
DMT32240M035_03W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3.5 Inch |
| Type: |
LCM |
| Display Technology: |
TFT |
| Usage: |
Small-sized LCM |
| Viewing Angle: |
TN＋FILM |
Product Description

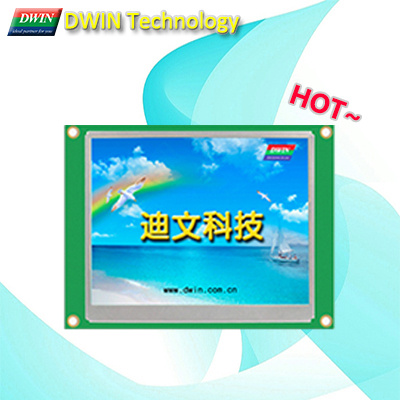

Smart UART-interface, TFT LCD Module with TTL serial communication; It could be controlled by any normal MCU with serial interface.
Up to 65K color (16-bit) true color display, which could make your products more attractive.
Reliable performance with wide temperature/voltage range achieve it's various application whatever in consumer field.
With self designed GUI R&D software and pre-installed Commands, anyone could design their idea interface.
|
Item |
Parameter |
Description |
|
Color |
65K (65536) colors |
16 bit color 5R6G5B |
|
Active Area (A.A.) |
70.1mm (W) × 52.6mm (H) |
320 × 240 |
|
View Area (V.A.) |
73.2mm (W) × 55.5mm (H) |
320 × 240 |
|
Resolution |
320 × 240 |
90° rotation (240x320) |
|
Backlight |
LED |
- |
|
Brightness |
250 nit (DMT32240M035_03WN) |
64 levels adjustment |
|
200 nit (DMT32240M035_03WT) |
64 levels adjustment |
| Voltage & Current
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
Power Voltage |
- |
3.3 |
5.0 |
6.0 |
V |
|
Operation Current |
VCC = +5V, Backlight on |
- |
180 |
- |
mA |
|
VCC = +5V, Backlight off |
- |
50 |
- |
mA |
|
Recommended power supply: 5V 0.5A DC |
| Reliability Test
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
Working Temperature |
60%RH at 5V voltage |
-20 |
25 |
70 |
o C |
|
Storage Temperature |
- |
-30 |
25 |
70 |
o C |
|
Working Humidity |
25 o C |
10% |
60% |
90% |
RH |
|
Protective Paint |
- |
- |
None |
- |
- |
|
Aging Test |
- |
- |
None |
- |
H |
| Interface
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
Baudrate |
standard |
1200 |
115200 |
691200 |
bps |
Output Voltage
(TXD) |
Output 1, Iout = 1mA |
3.0 |
3.2 |
- |
V |
|
Output 0, Iout = -1mA |
- |
0.1 |
0.2 |
V |
Input Voltage
(RXD) |
Input 1, Iin = 1mA |
2.0 |
3.3 |
5.0 |
V |
|
Input 0, Iin = -1mA |
-0.7 |
0.0 |
1.3 |
V |
|
Interface |
8N1, 3.3V TTL/CMOS |
|
Socket |
10Pin_1.0mm FCC |
|
USB |
None |
|
SD Slot |
Yes (FAT32 file format, micro SD/TF) |
| Memory
|
Item |
Parameter |
Min |
Typ |
Max |
Unit |
|
Flash |
Space of Font |
- |
32 |
- |
MB |
|
Picture Storage (128MB) |
- |
- |
374 |
Pcs |
|
RAM |
Serial Access Memory Space |
- |
4 |
- |
KB |
|
Refresh Rate |
High-speed Mode |
|
100 |
|
Ms |
|
Normal Mode |
|
200 |
|
Ms |
| Peripheral
|
|
Peripherals Acquired |
|
Peripherals |
DMT32240M035_03WN : RTC, Buzzer
DMT32240M035_03WT : RTC, Buzzer, 4-wire resistance touchscreen |
|
| Main Features of Mini DGUS Module
|
Main Features of Mini DGUS Module |
1. Hardware & interface: ARM kernel; 128MB flash; 2KB DGUS flash; inapplicable for conditions with strong interference.
Unsupported functions: CRC checksum, data exporting and firmware upgrading via SD card, user defined baud rate.
2. Software: Unsupported functions: firmware parameter settings, DWIN_OS, software timer interface.
Only 2 curves are supported in dynamic curve function. |
