| Prod Model: |
PS-T035TLV-02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3.5 Inch |
| Resolution: |
320*240 |
| Brightness: |
250 |
| Pin No.: |
54 |
| Type: |
Color |
| Display Technology: |
TFT |
| Usage: |
Monitor LCM |
| Viewing Angle: |
TN＋FILM |

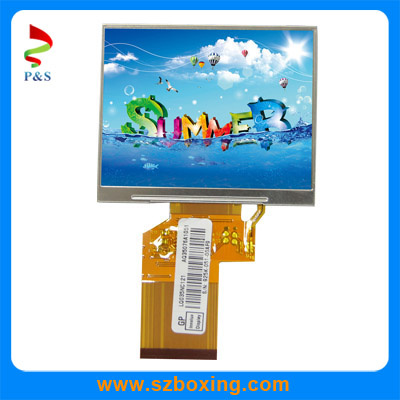

Product Description
1. Specifications:
Panel type: A-Si TFT-LCD
Panel size: 3.5 inches
LCD digital: TFT digital
Resolution: 320 x 240
Brightness: 250cd/m² (typical)
Outline dimensions: 76.90 x 64.0 x 3.05mm (typical)
Active area (H x V): 70.08X52.56mm
Contrast ratio: 350: 1 (typ. )
Pixel arrangement: RGB vertically stripe
Display mode: Normally white
Surface treatment: Anti-glare
Weight: TBD
Operating temperatures: -20 to 70 degree
Storage temperatures: -30 to 80 degree
Viewing angle: 60/45/60/60 degree (type)
Backlight: Single LED
Aspect ratio: 16: 9
With RoHS Directive-compliance
Compatible with NTSC/PAL system
Image reversion: Up/down and left/right
2. Applications:
Consumer electronics/automotive/telecoms and data transfer/medical instruments/security management/signs and display/point of sale, EPOS/energy control/amusement and gambling machines/white goods/mobile phones and PDAs
3. Company Advantage:
* Small MOQ accepted
*Competitive price and short lead-time.
*ISO9001 and ROSH certificated factory supplied.
*TFT LCD module, touch panel, PCB with SMT/COB solutions
4. Quality Control
Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.
5. Packaging and Delivery:
1). Payment Terms: T/T, Paypal
2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for goods in stock, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation.
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
6). Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
|
Optical Specifications |
|
Item |
Symbol |
Condition |
Values |
Unit |
|
Min. |
Typ. |
Max. |
|
Viewing angle(CR≥10) |
θL |
Φ=180° |
– |
60 |
– |
degree |
|
θR |
Φ=0° |
– |
45 |
– |
|
θT |
Φ=90° |
– |
60 |
– |
|
θB |
Φ=270° |
0 |
60 |
– |
|
Response time |
TON |
Normal
θ=Φ=0° |
– |
25 |
– |
msec |
|
TOFF |
– |
25 |
– |
msec |
|
Contrast ratio |
CR |
– |
350 |
– |
– |
|
Color Chromaticity |
WX |
– |
0.31 |
– |
– |
|
WY |
– |
0.35 |
– |
– |
|
Luminance |
L |
220 |
250 |
– |
cd/m2 |
|
Absolute Max.Rating |
|
|
|
|
|
|
|
Item |
Symbol |
Value |
Unit |
Remark |
|
Min |
Typ |
Max |
|
Supply voltage |
VDD |
-0.3 |
– |
3.6 |
V |
– |
|
Operating temperature |
TOPR |
-20 |
– |
70 |
degree |
– |
|
Storage temperature |
TSTG |
-30 |
– |
80 |
degree |
– |
