| Prod Model: |
FY20003A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2 Inch |
| Resolution: |
320 X240 Pixels |
| Brightness: |
Tbd |
| Contrast Ratio: |
40000 |
| Operating Temperature: |
-20---70 Degree |
| Storage Temperature: |
-30---80 Degree |
| Interface: |
Lvds |
| Type: |
Color |
| Usage: |
POS Machine |
| Display Technology: |
TFT |
| Viewing Angle: |
TN＋FILM |
Product Description

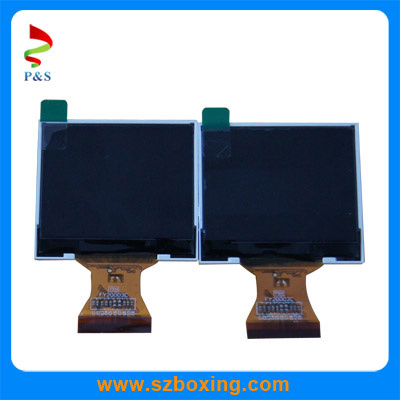

2 inch TFT LCD Module
1.Absolute Max.Rating
|
| Item | Symbol | Value | Unit | Remark |
| Min | Typ | Max |
| Supply voltage | VDD | 3.0 | 3.2 | 3.4 | V | – |
| Operating temperature | TOPR | -20 | – | 60 | ºC | – |
| Storage temperature | TSTG | -30 | – | 70 | ºC |
|
| Item | Symbol | Condition | Values | Unit |
| Min. | Typ. | Max. |
| Viewing angle(CR≥10) | θL | Φ=180° | - | 50 | – | degree |
| θR | Φ=0° | - | 65 | – |
| θT | Φ=90° | - | 65 | – |
| θB | Φ=270° | - | 65 | – |
| Response time | TON | Normal
θ=Φ=0° | – | 15 |
| msec |
| TOFF | – | 15 |
| msec |
| Contrast ratio | CR | – | 400 | – | – |
| Color Chromaticity | WX | 0.282 | 0.302 | 0.322 | – |
| WY | 0.327 | 0.347 | 0.367 | – |
| Luminance | L | – | TBD | – | cd/m2 |
2. Company Advantage
* Small MOQ accepted
*Competitive price and short lead-time.
*ISO9001 and ROSH certificated factory supplied.
*TFT LCD module, touch panel, PCB with SMT/COB solutions
3. Quality Control
Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.
4. Packaging and Delivery:
1). Payment Terms: T/T, Paypal
2). Shipping : Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for goods in stock, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation.
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
6). Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
Shenzhen Boxing World Technology Co., Ltd. is a Shenzhen based company who is one of the leading technology-intensive service companies for LCD, LCD module products and total solutions of panel application.
Ever since founded, P&S has developed huge LCD module products and solutions of panel application based on our vast supplier network. It is our core-competitiveness that we have been able to provide complete value-added service to every our existing and potential customers.
Our key service covers the products of LCD module, touch panel, PCB with SMT/COB solutions and other electronic component. We cooperate with and market products from the Chinese leading manufacturers; They are spread all over the world and have roots in the markets where the newest innovation and high technological products are.
With our depth in LCD product knowledge and our comprehensive business network, P&S has long been committed to acting as an effective bridge by providing prompt matching of potential and unique requirements of the end users worldwide
