| Prod Model: |
TFT052A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Type: |
TFT Transmissive |
| Controller: |
Hx8238d |
| Interface: |
24bit RGB |
| Backlight: |
12LED White |
| Resoluton: |
320*240(Wqvga) |
| Active Area: |
70.08*52.56mm |
| Module Size: |
76.9*63.9*4.3mm |
| Pixel Arrangement: |
RGB Vertical Stripe |
| Driver Element: |
a-Si TFT Active Matrix |
| Viewing Direction: |
6 O'clock |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Timing Module |
| Touch Screen Type: |
Resistive |
| Type: |
Color |
| Response Time: |
10ms |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Viewing Angle: |
90° |
Product Description
1. Gerneral Specification
Place of Origin: Guangdong China (Mainland)
Brand Name: Huayuan
Model Number: TFT052A
Type: TFT

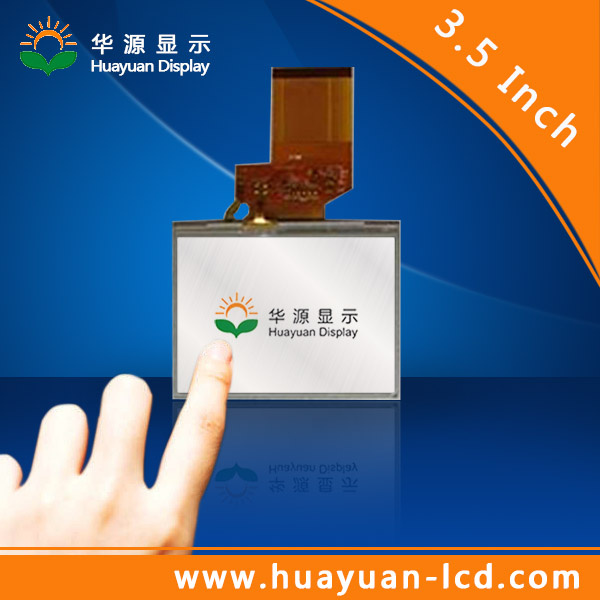

Size: 3.5 inch tft touch display
Resolution: 320x RGB x 240(WQVGA)
Backlight: 6 LEDs in Series
Viewing direction: 6 O'Clock
Driver: HX8238
Interface: 24 Bit RGB
FPC cable: 54 pin
Touch Panel: Resisitive touch panel
Outline dimension: 76.9x63.9x4.3mm
Operating temp: -20 to 70 degree
Customized: Available
| Model NO. | TFT052A |
| lcd size | 3.5 inch |
| Size:Length*Width*Highth: | 76.9*63.9*4.25 |
| Interface | RGB |
| Resolution | 320*240 |
| (luminance)cd/m² | 350 cd/m² |
| with or without touch panel (TP) | 4&5Wire Resistive Touch(Optional) |
| LED light | 6LED |
| FPC PINs | 54 |
| Diver IC | HX8238D |
| Operating Voltage | VDD=3.3V |
| Work Temp | -20 To +70c |
| Storage Temp | -30 To +80c |
| Viewing Angle | 6 O' Clock |
| Related products | 2.8" 3.2" 3.5" 4.3" 5" 5.6" 7" 8" 9" 10.1" 17" |
| LCD Module application | Game Machine.Car Audio DVD.GPS.cash register.Industial Automation.Office Automation.MedicalEquipment.LCD Monitor.DVDPlayer.POS machine. etc. |
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.

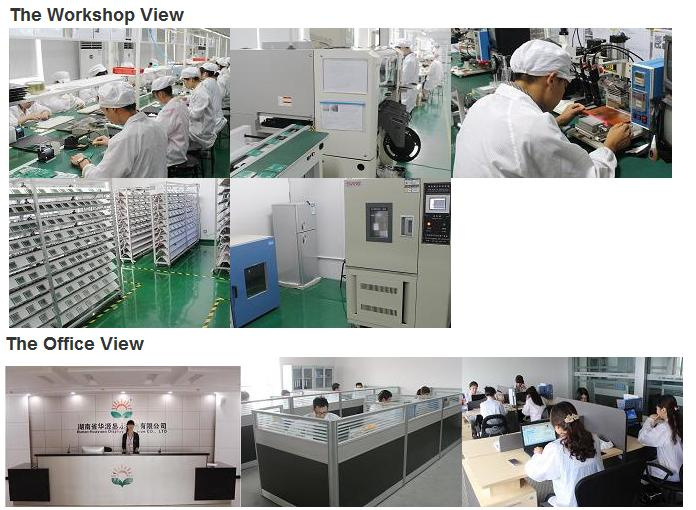

Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
